NFS-320 and NFS-320SYS UL Listing Document — P/N 52745LD:G9 5/19/2022 13
Connecting an RKS-S Remote Key Switch
The RKS-S Remote Key Switch arms and disarms the system. It can be mounted in a UL listed single-gang electrical box. Both the monitor module
and RKS-S must be mounted within the protected area. Refer to the Product Installation Document (15984) for information on how to wire the RKS-S
to a FMM-1 and FMM-101 module.
Single Tenant Security System with Entry/Exit Delay
The following system requirements are illustrated in Figure 18 on page 13.
• One NFS2-3030 Control Panel
• Multiple Security Supervisory Circuits Reporting to Central Station as a Single Area
• The minimum security equipment required is as follows:
– Multiple MM Monitor Modules per Protected Area
– One Group Interface for security alarm
– One Group Interface to generate trouble arming system
– Contact Switch for Each Entry/Exit Door
– RKS-S Key Switch
– MM Monitor Modules
– Remote Annunciator for Each Entry/Exit Door (ACM-24AT, ACM-48A, ACM-16AT, ACM-32A)
– Security Devices
– RM Relay Module
– Compatible Printer
Programming of Key Switch, Access Points, and Motion Detection
RKS Remote Key Switch with Monitor Module
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: (none)
Custom Label: Arming Switch
Contact Switches with Monitor Modules
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
TENANT A
AREA 1
(Perimeter
and interior)
To Signaling
Line Circuit
MM
To Central Station
(via EIA-485 circuit)
Entry/Exit Door
NFS2-3030 Central Station
* Group Interface must be
physically located in either
the protected premises or
the Central Station
Key
Motion Detector
Contact Switch
Contact Switch with MM Module
Pull Station
Smoke Detector
RKS-S Remote Key Switch with MM Module
Remote Annunciator
MM Security Access Monitor
Group Interface *
RM
MM RM

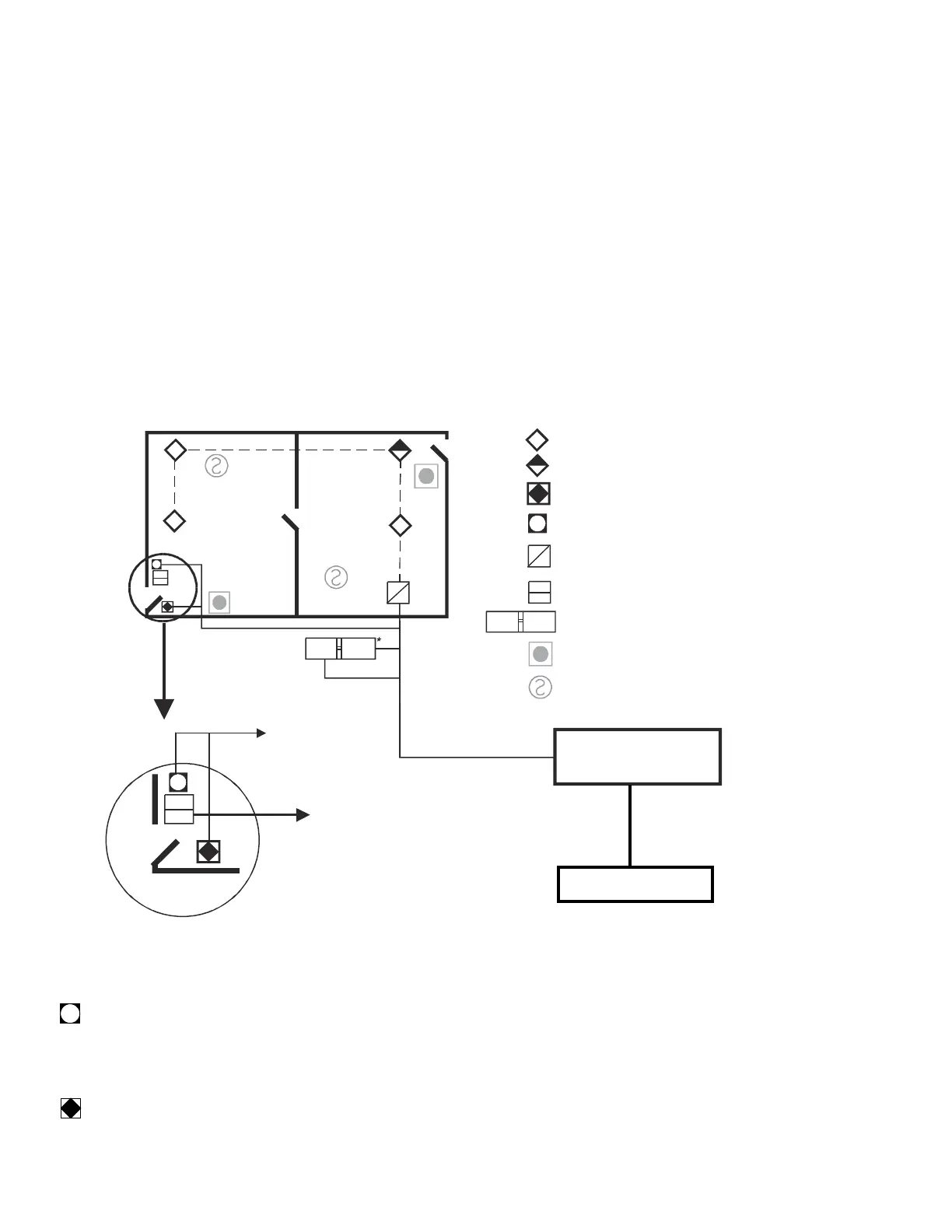

Figure 18 Single Tenant Security System with Entry/Exit Delay
Compatible Printer
To Next Page
