Dedicated Smoke Control System Wiring Diagrams Ratings and Wiring Diagrams

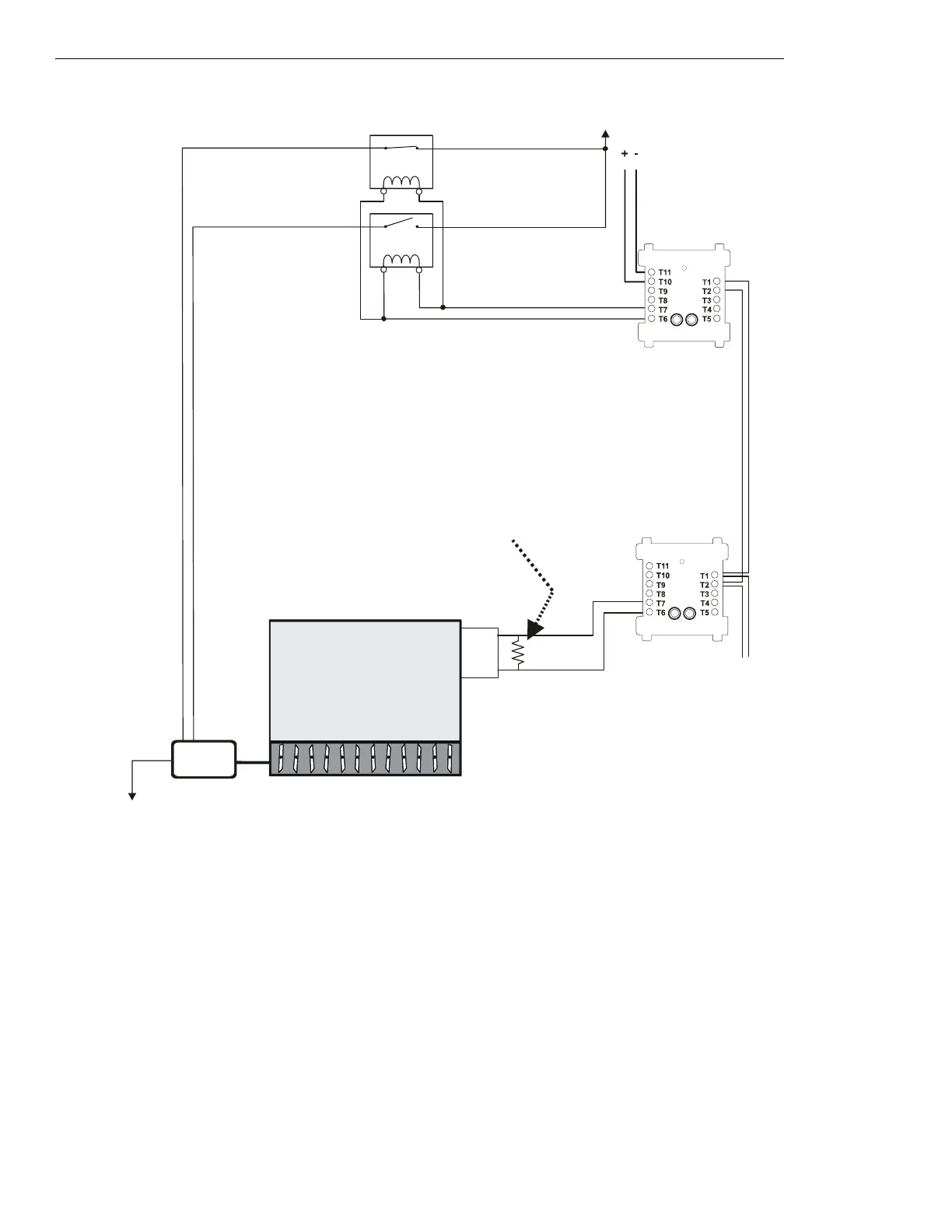

Figure 5.9 Motorized Damper Control
Dedicated System - FSCS Switch Group Type 5
Figure 5.9 depicts a motorized damper in a dedicated system with the capability of
OPEN control and verification of the OPEN state, switch
group type 5. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls a normally open contactor for the
damper open power line and a normally closed contactor for the damper close power. When the CON
ON⁄OP
CM is activated, the normally
closed contactor is opened and the normally open contactor is closed, thus supplying power to open the damper. When the damper com-
pletely opens, the damper open limit switch is CLOSED, indicating that the damper is in the OPEN position. The VER
ON⁄OP
MM monitors the
CLOSED position of the open position limit switch. In this case the VER
ON⁄OP
MM is activated because the damper is OPEN.
Damper
Open
Power
N/O
COM
Damper
Closed
Power
AC
MOTOR
DAMPER
OPEN
Limit Switch
for open
position
1b listed
contactor
1a listed
contactor
Power Source
Listed
24 VDC
Power Source
SLC Loop
ELR-47K
(use 3.9K listed ELR with FZM-1)
FCM-1
VER
ON⁄OP
MM
(activated)
CON
ON/OP
CM
(activated)
DMO-df5-fs-2.wmf
Power Return
FMM-1
*If the SLC device
does not match the
one in this figure,
refer to the SLC
manual appendix,
which contains
wiring conversion
charts for type V
and type H
modules.
