Honeywell NOTIFIER SCS Series User Manual

118 SCS Series Manual — P/N 15712:L 7/18/16
Ratings and Wiring Diagrams Dedicated Smoke Control System Wiring Diagrams

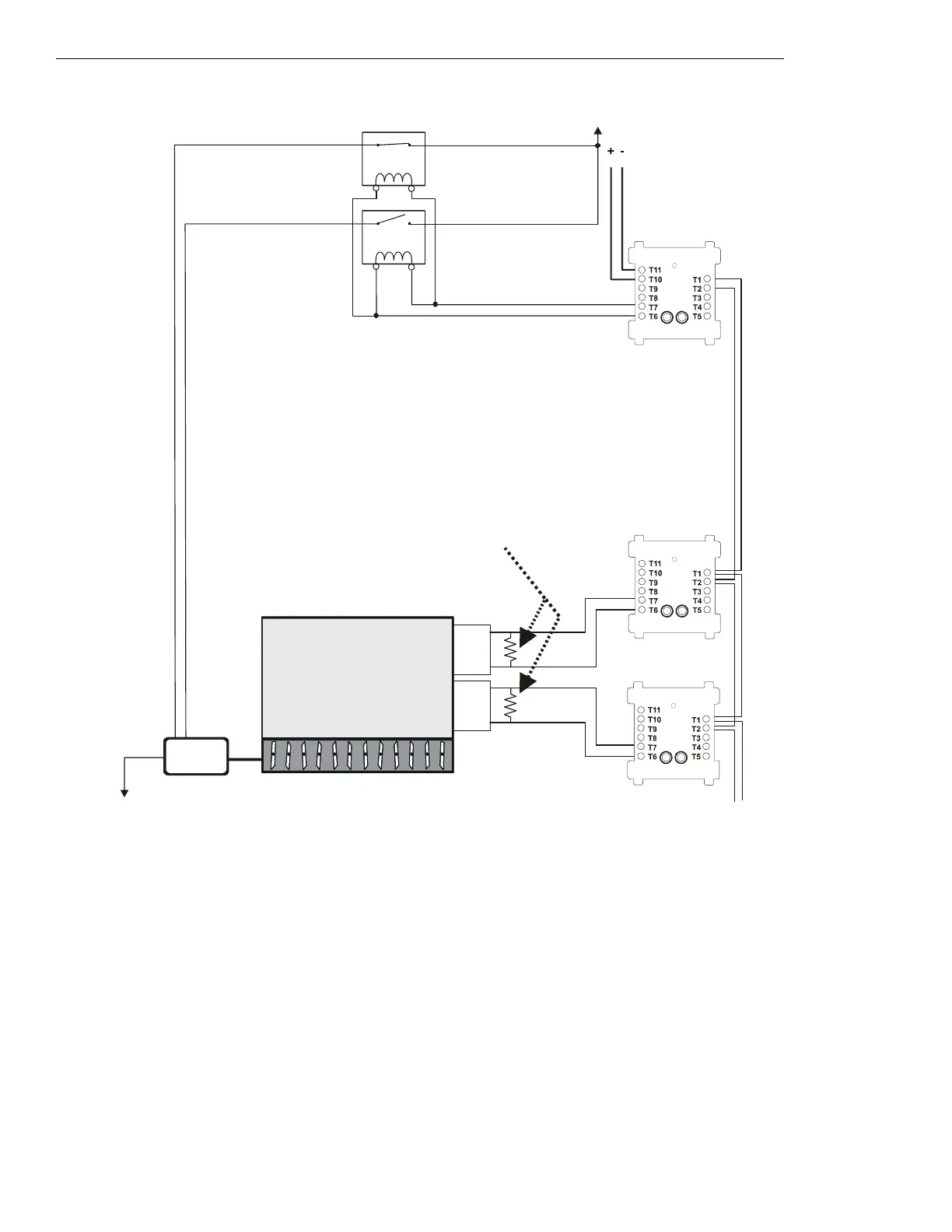

Figure 5.10 Motorized Damper Control
Dedicated System - FSCS Switch Group Type 6
Figure 5.10 depicts a motorized damper in a dedicated system with the capability of
OPEN control and verification of the OPEN and CLOSED
state, switch group type 6. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls a normally open contactor
for the damper open power line and a normally closed contactor for the damper close power. When the CON
ON⁄OP
CM is activated, the nor-
mally closed contactor is opened and the normally open contactor is closed, thus supplying power to open the damper. When the damper
completely opens, the open position limit switch is closed, indicating that the damper is in the
OPEN position. (When the damper is in the
closed position, the closed position limit switch is
CLOSED.) The VER
ON⁄OP
MM monitors when the open position limit switch is CLOSED. In
this case the VER
ON⁄OP
MM is activated and the VER
OFF⁄CL
MM is deactivated because the damper is OPEN.
In a dedicated system, a damper would never need both
ON and OFF control. A damper for a dedicated system is either normally open and
would need to be closed or normally closed and would need to be opened. This is not true for a Non-dedicated system.
Switch group type 7 would never be needed unless redundancy in
OFF and ON control were necessary. Type 7 is used for ON and OFF control
and verification of the
OFF state. When the CON
ON⁄OP
CM is deactivated, the CON
OFF⁄CL
CM is activated, and vice versa. The CON
ON⁄OP
CM
controls a normally open contactor which switches the damper open power to the damper. The CON
OFF⁄CL
CM controls a normally open con-
tactor which switches damper close power to the damper. When the CON
ON⁄OP
CM is deactivated, the contactor is open, thus cutting damper
open power to the damper. When the CON
OFF⁄CL
CM is activated, the contactor is closed, thus supplying power to the fan. The same capabil-
Damper
Open
Power
N/O
COM
Damper
Closed
Power
AC
MOTOR
DAMPER
OPEN
Limit Switch
for open
position
1b listed
contactor
1a listed
contactor
Power Source
Listed
24 VDC
Power Source
SLC Loop
ELR-47K
(use 3.9K listed ELR with FZM-1)
FCM-1
VER
ON⁄OP
MM
(activated)
CON
ON/OP
CM
(activated)
DMO-df6-fs-2.wmf
Power Return
FMM-1
VER
OFF⁄CL
MM
(deactivated)
FMM-1
N/O
COM
Limit Switch
for closed
position
*If the SLC device
does not match the
one in this figure,
refer to the SLC
manual appendix,
which contains
wiring conversion
charts for type V
and type H
modules.
