170 SCS Series Manual — P/N 15712:L 7/18/16
Ratings and Wiring Diagrams HVAC Wiring Diagrams

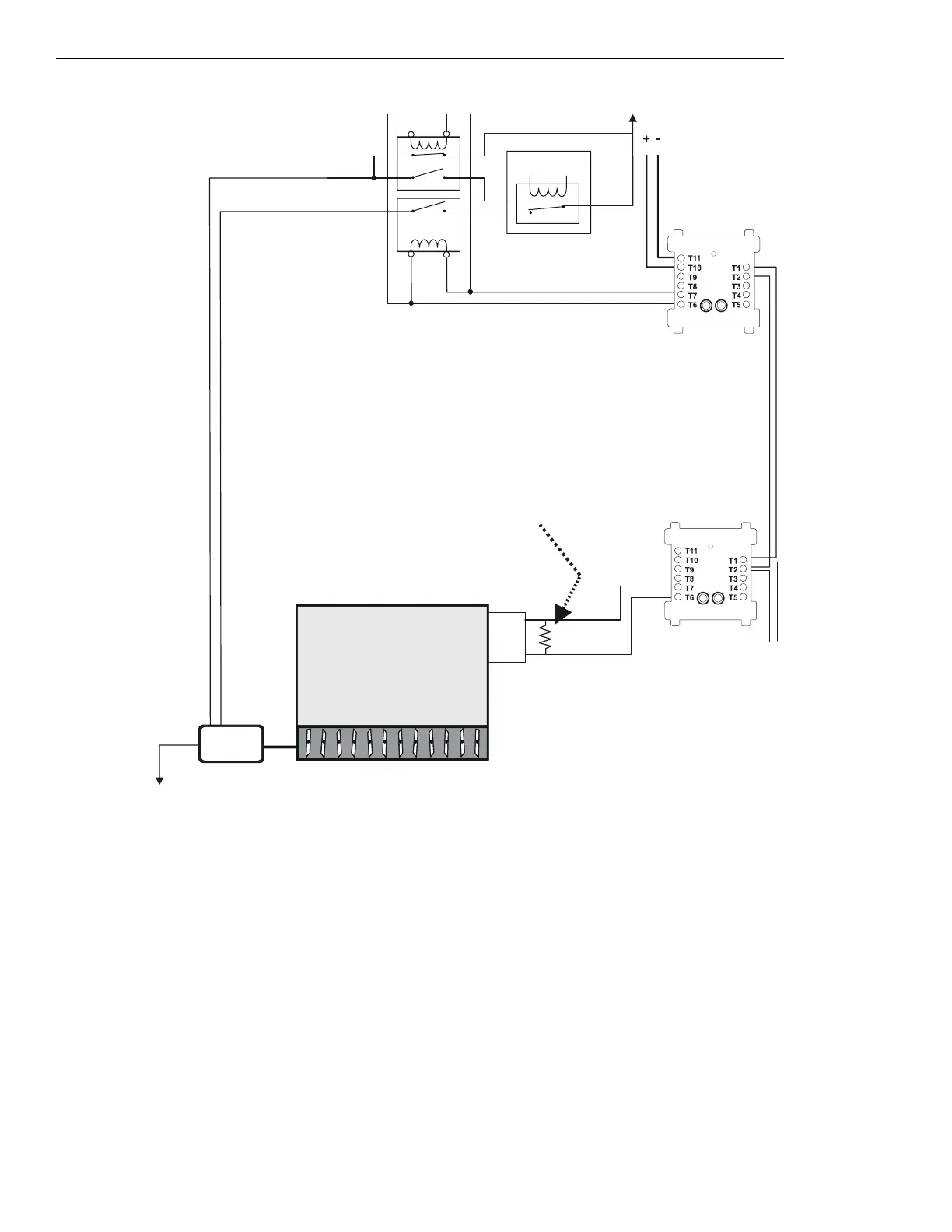

Figure 5.61 Motorized Damper Control - HVAC Switch Group Type 10
Figure 5.61 depicts a motorized damper in an HVAC system with the capability of
OPEN control and verification of the OPEN state, switch
group type 10. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls two contactors: a normally closed
contactor for the damper closed power line, and a dual normally open/normally closed contactor for the damper open power line. When the
CON
ON⁄OP
CM is activated, the normally closed contactor is opened (cutting any power supplied by the EMS to the damper closed power
line), the normally closed portion of the dual contactor is opened (cutting any power supplied by the EMS to the damper open power line),
and the normally open portion of the dual contactor is closed, thus supplying power to close the damper. When the CON
ON⁄OP
CM is deacti-
vated, the EMS is free to control the damper. The EMS is currently being overridden by the CON
ON⁄OP
CM.
When power is supplied to the damper open power line, the damper opens. When the damper completely opens, the damper open limit
switch is
CLOSED, indicating that the damper is in the OPEN position.
The VER
ON⁄OP
MM monitors the CLOSED position of the damper open limit switch. In this case the VER
ON⁄OP
MM is activated because the
damper is
OPEN.
Power Source
Damper
Open
Power
ELR-47K
(use 3.9K listed ELR with FZM-1)
Power Return
Listed
24 VDC
Power Source
DMO-h10a-fs-2.wmf
SLC Loop
CON
ON/OP
CM
(activated)
Damper
Closed
Power
AC
MOTOR
DAMPER
OPEN
FCM-1
1b, 1a listed contact
1b listed
contact
Energy
Management
System
FMM-1
VER
ON⁄OP
MM
(activated)
N/O
COM
Limit Switch
for open
position
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual appendix, which
contains wiring
conversion charts for
type V and type H
modules.
