Ratings and Wiring Diagrams HVAC Wiring Diagrams

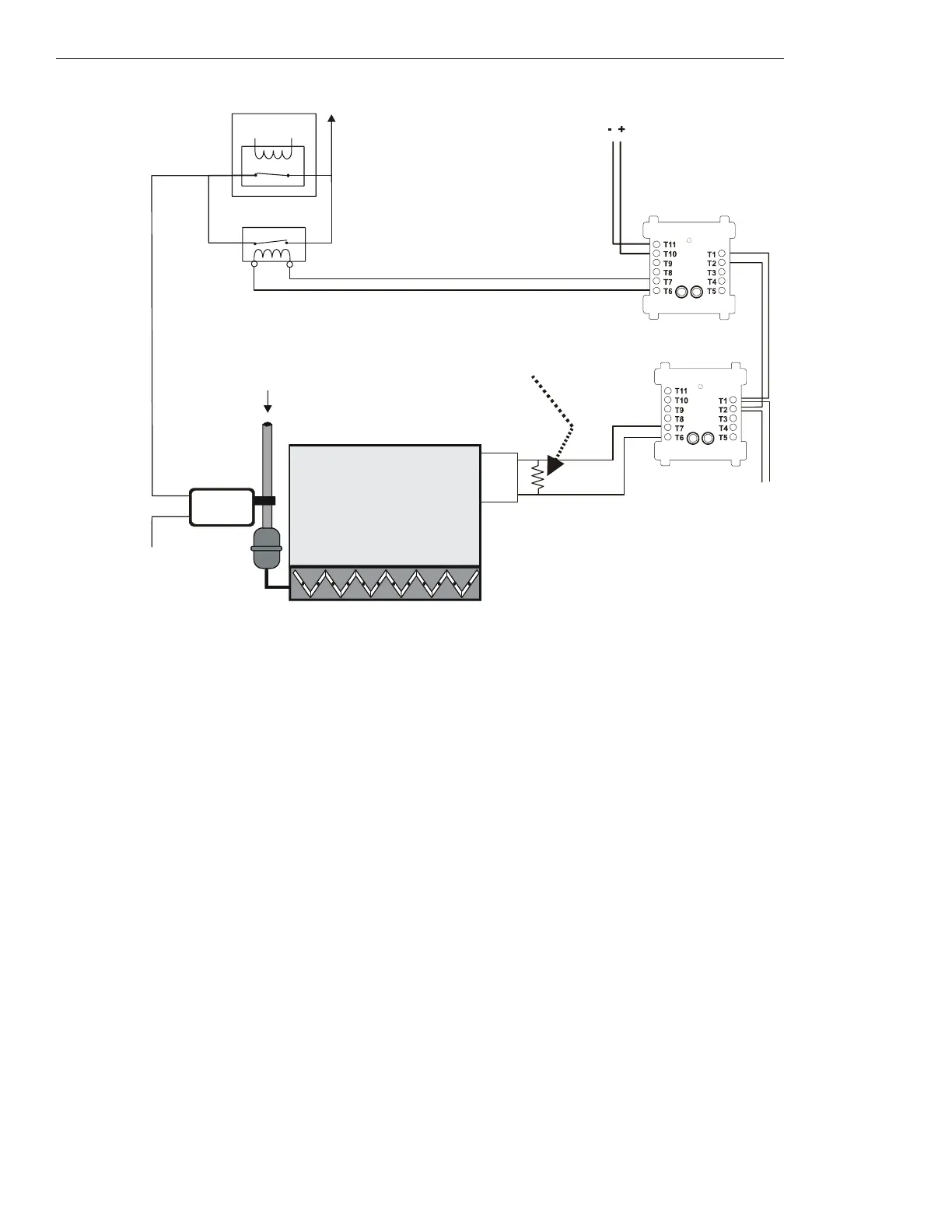

Figure 5.72 EP Damper Control - HVAC Switch Group Type 6
Figure 5.72 depicts an EP damper in an HVAC system with the capability of CLOSED control and verification of the OPEN state, switch group
type 6. In the above configuration, the CON
OFF⁄CL
CM is activated. The CON
OFF⁄CL
CM controls a normally open contactor for the pressure
switch power line. When the CON
OFF⁄CL
CM is activated, the normally open contactor is closed. When the contactor closes, power is sup-
plied to the pressure switch, which cuts the airflow to the damper and closes it. When the CON
OFF⁄CL
CM is deactivated, the EMS is free to
control the damper. The EMS is currently being overridden by the CON
OFF⁄CL
CM.
When power is supplied to the pressure switch, the damper closes. When the damper completely closes, the damper closed limit switch is
CLOSED, indicating that the damper is in the CLOSED position. The VER
ON⁄OP
MM monitors the CLOSED position of the damper open limit
switch. In this case the VER
ON⁄OP
MM is deactivated because the damper is CLOSED.
Airflow
PRESSURE
SWITCH
SMOKE
DAMPER
CLOSED
Power Source
Listed
24 VDC
Power Source
SLC Loop
FCM-1
CON
OFF/CL
CM
(activated)
Dep-h6-fs-2.wmf
Power
Return
ELR-47K
(use 3.9K listed ELR with FZM-1)
Pneumatic
Tubing
Energy
Management
System
1a listed
contactor
N/O
COM
Limit Switch
for open
position
VER
ON⁄OP
MM
(deactivated)
FMM-1
