HVAC Wiring Diagrams Ratings and Wiring Diagrams

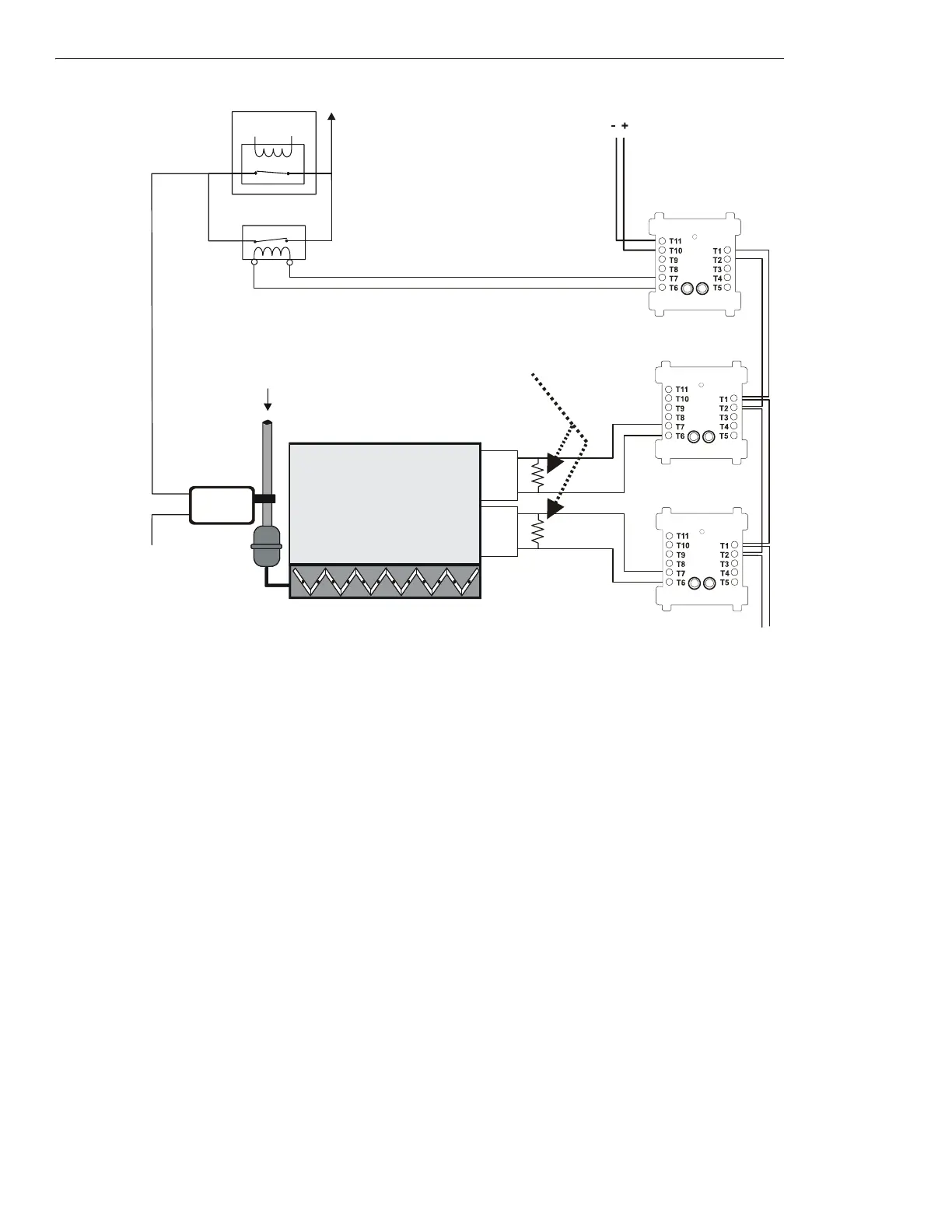

Figure 5.73 EP Damper Control - HVAC Switch Group Type 7
Figure 5.73 depicts an EP damper in an HVAC system with the capability of
CLOSED control and verification of the OPEN and CLOSED state,
switch group type 7. In the above configuration, the CON
OFF⁄CL
CM is activated. The CON
OFF⁄CL
CM controls a normally open contactor for
the pressure switch power line. When the CON
OFF⁄CL
CM is activated, the normally open contactor is closed. When the contactor closes,
power is supplied to the pressure switch, which cuts the airflow to the damper, closing the damper. When the CON
OFF⁄CL
CM is deactivated,
the EMS is free to control the damper. The EMS is currently being overridden by the CON
OFF⁄CL
CM.
When power is supplied to the pressure switch, the damper closes. When the damper completely closes, the damper closed limit switch is
CLOSED and the damper open limit switch is OPEN, indicating that the damper is in the CLOSED position. The VER
OFF⁄CL
MM monitors the
CLOSED position of the damper closed limit switch and the VER
ON⁄OP
MM monitors the CLOSED position of the damper open limit switch. In
this case the VER
OFF⁄CL
MM is activated and the VER
ON⁄OP
MM is deactivated because the damper is CLOSED.
