Honeywell NOTIFIER SCS Series User Manual

58 SCS Series Manual — P/N 15712:L 7/18/16
The SCS⁄SCE Configuration
17 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 3 switch groups require one
control module and two monitor modules. Type 3 switch groups are usually only used for dampers.
The control module is used for CLOSED control of a damper, one monitor module is used for the
OPEN verification of the damper and the other monitor module is used for the CLOSED verification
of the damper.
18 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 1 switch groups require one control module and one monitor module.
Type 1 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the OFF verification of the fan.
19 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 1 switch groups require one control module and one monitor module.
Type 1 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the OFF verification of the fan.
20 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 2 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 2 switch groups require one control module and one monitor module.
Type 2 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the ON verification of the fan.
21 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 2 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 2 switch groups require one control module and one monitor module.
Type 2 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the ON verification of the fan.
22 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 3 switch groups require one control module and two monitor modules.
Type 3 switch groups are usually only used for dampers. The control module is used for CLOSED
control of a damper, one monitor module is used for the OPEN verification of the damper and the
other monitor module is used for the CLOSED verification of the damper.

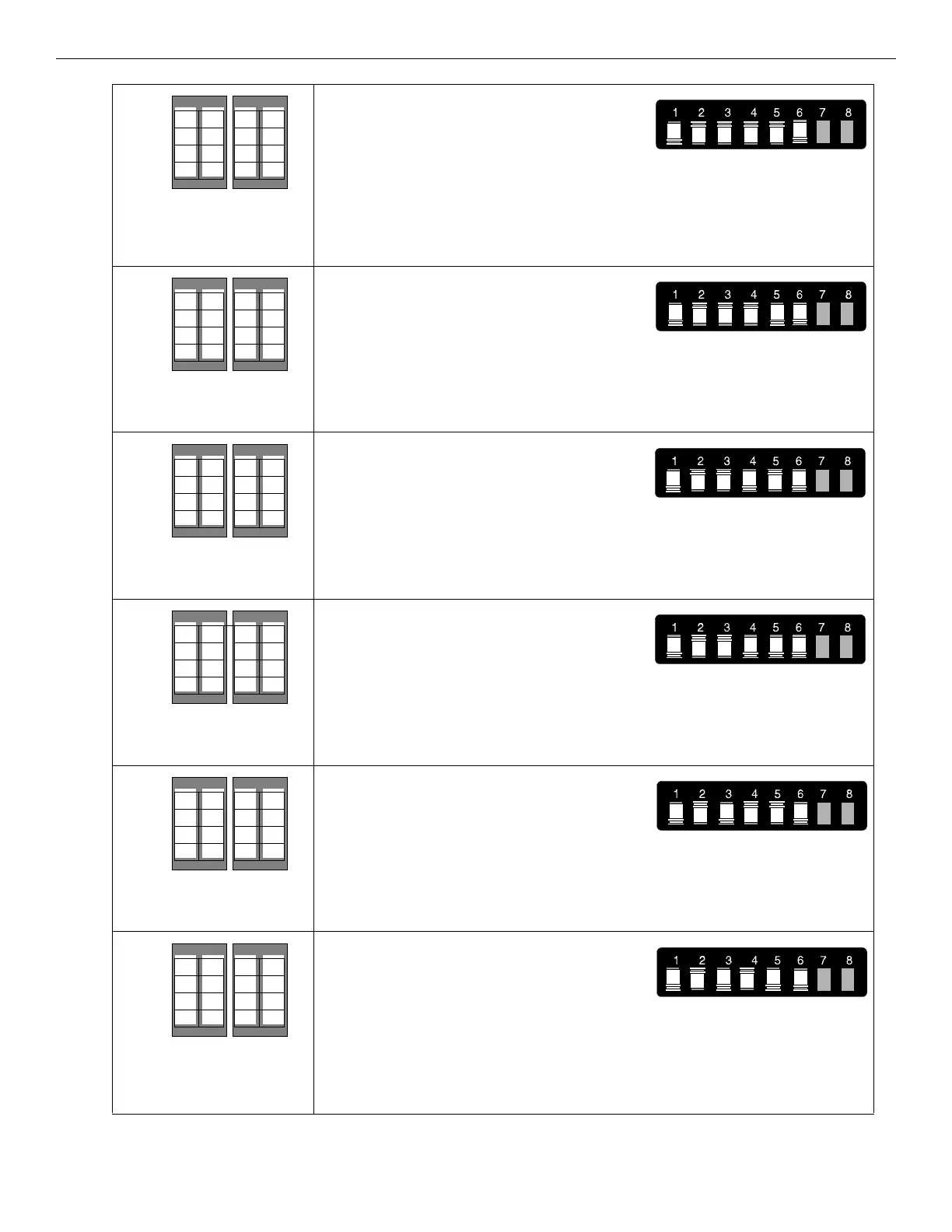

Table 3.5 FSCS Mode Dipswitch Settings (4 of 6)
*
55 55
33 33
33 33
55 55
SCS-8 SCE-8
OFF
ON
81 81
81 81
81 81
81 81
SCS-8 SCE-8
OFF
ON
88 88
11 11
11 11
88 88
SCS-8 SCE-8
OFF
ON
82 82
82 82
82 82
82 82
SCS-8 SCE-8
OFF
ON
88 88
22 22
22 22
88 88
SCS-8 SCE-8
OFF
ON
83 83
83 83
83 83
83 83
SCS-8 SCE-8
OFF
ON
