SCS Series Manual — P/N 15712:L 7/18/16 59
Configuration The SCS⁄SCE
23 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 3 switch groups require one control module and two monitor modules.
Type 3 switch groups are usually only used for dampers. The control module is used for CLOSED
control of a damper, one monitor module is used for the OPEN verification of the damper and the
other monitor module is used for the CLOSED verification of the damper.
24 When used with an SCE, eight switch groups are
available for group type 2 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 2 switch groups require one
control module and one monitor module. Type 2 switch
groups can be used for fans or dampers. The control module is used for OFF control of a fan and the
monitor module is used for the ON verification of the fan. Type 1 switch groups require one control
module and one monitor module. Type 1 switch groups can be used for fans or dampers. The control
module is used for OFF control of a fan and the monitor module is used for the OFF verification of the
fan.
25 When used with an SCE, eight switch groups are
available for group type 2 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 2 switch groups require one
control module and one monitor module. Type 2 switch
groups can be used for fans or dampers. The control module is used for OFF control of a fan and the
monitor module is used for the ON verification of the fan. Type 1 switch groups require one control
module and one monitor module. Type 1 switch groups can be used for fans or dampers. The control
module is used for OFF control of a fan and the monitor module is used for the OFF verification of the
fan.
26 When used with an SCE, eight switch groups are
available for group type 2 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 2 switch groups require one
control module and one monitor module. Type 2 switch
groups can be used for fans or dampers. The control module is used for OFF control of a fan and the
monitor module is used for the ON verification of the fan. Type 3 switch groups require one control
module and two monitor modules. Type 3 switch groups are usually only used for dampers. The
control module is used for CLOSED control of a damper, one monitor module is used for the OPEN
verification of the damper and the other monitor module is used for the CLOSED verification of the
damper.
27 When used with an SCE, eight switch groups are
available for group type 2 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 2 switch groups require one
control module and one monitor module. Type 2 switch
groups can be used for fans or dampers. The control module is used for OFF control of a fan and the
monitor module is used for the ON verification of the fan. Type 3 switch groups require one control
module and two monitor modules. Type 3 switch groups are usually only used for dampers. The
control module is used for CLOSED control of a damper, one monitor module is used for the OPEN
verification of the damper and the other monitor module is used for the CLOSED verification of the
damper.

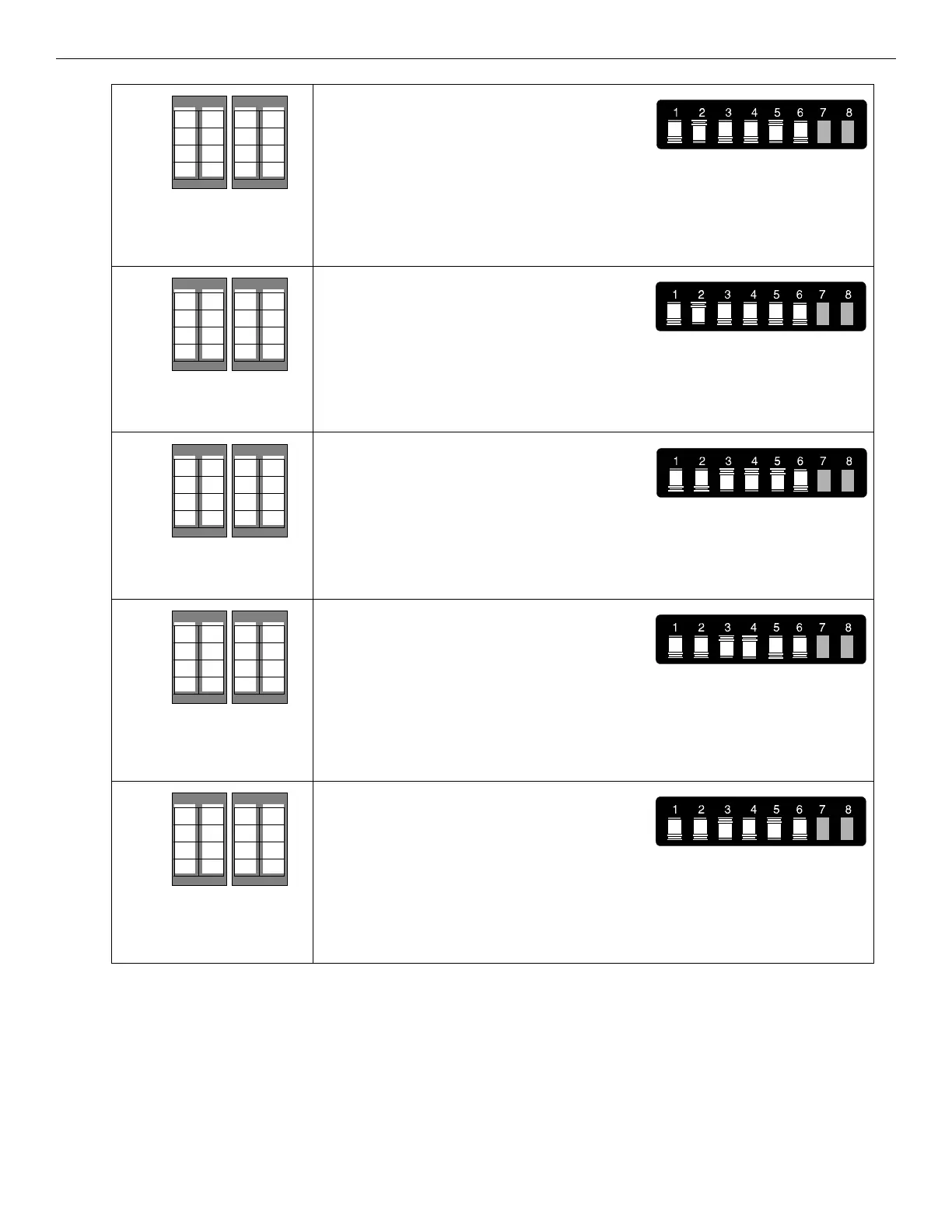

Table 3.5 FSCS Mode Dipswitch Settings (5 of 6)
*
88 88
33 33
33 33
88 88
SCS-8 SCE-8
OFF
ON
21 21
21 21
21 21
21 21
SCS-8 SCE-8
OFF
ON
22 22
11 11
11 11
22 22
SCS-8 SCE-8
OFF
ON
23 23
23 23
23 23
23 23
SCS-8 SCE-8
OFF
ON
22 22
33 33
33 33
22 22
SCS-8 SCE-8
OFF
ON
