12 Applicator Interface Kit Installation Guide

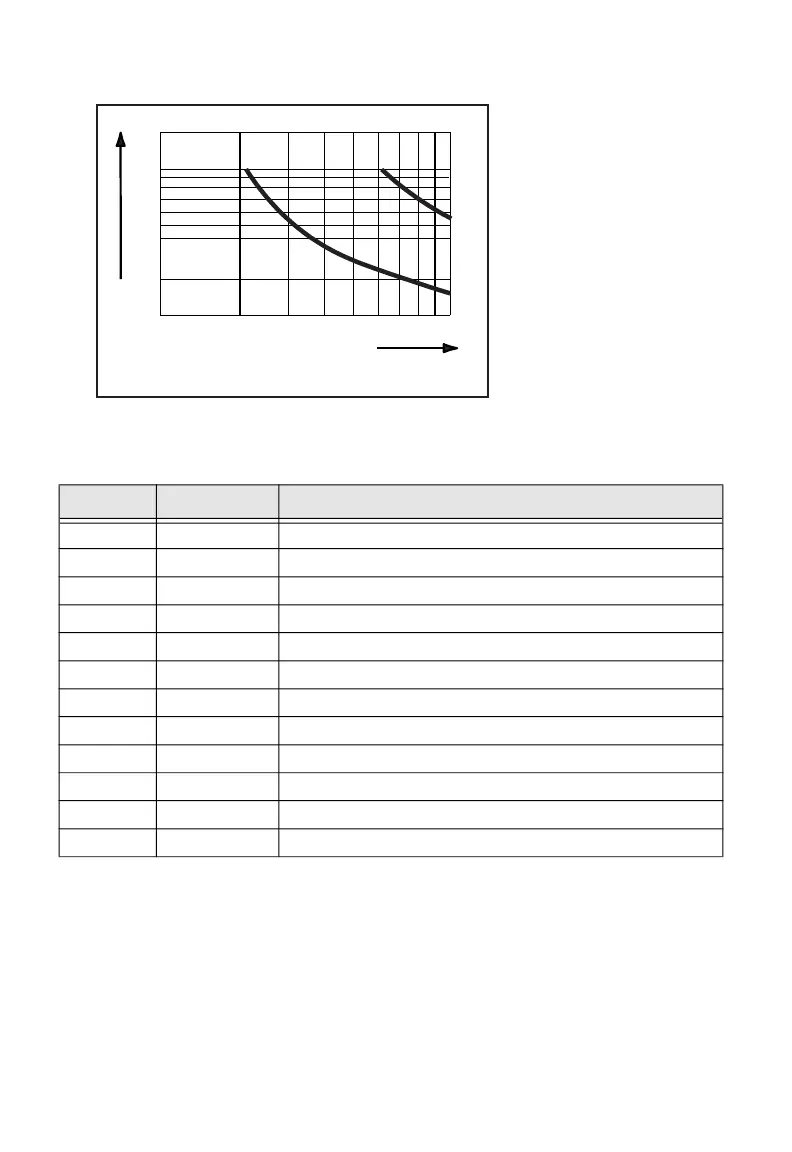

Max DC Load Breaking Capacity
Connector Configuration
Pin Signal Description
16 REL1nc Relay 1 Normally Closed
1 REL1no Relay 1 Normally Open
31 REL1com Relay 1 Common
17 REL2nc Relay 2 Normally Closed
2 REL2no Relay 2 Normally Open
32 REL2com Relay 2 Common
18 REL3nc Relay 3 Normally Closed
3 REL3no Relay 3 Normally Open
33 REL3com Relay 3 Common
19 REL4nc Relay 4 Normally Closed
4 REL4no Relay 4Normally Open
34 REL4com Relay 4 Common
b: inductive load L/R=20 ms
DC
Vo
tage
(VDC)
a: resistive load
100
30 40 50
20
0.1
a
b
1
DC Current
(A)
10
