INTRODUCTION
Mounting Specifications and Stand Assembly
Pedestal Stand

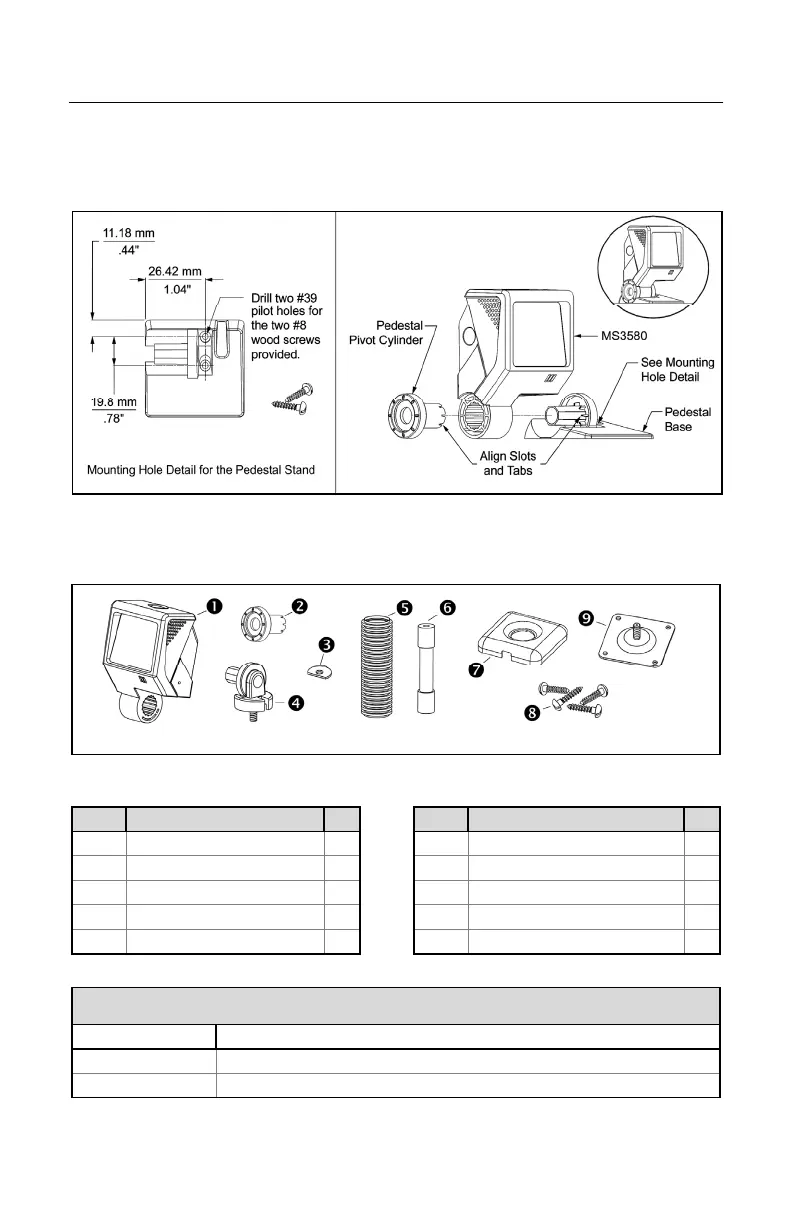

Figure 4. Pedestal Stand Assembly
Optional Flex Stand
Figure 5. Assembly Components for Optional Flex Stand
Item Description Qty. Item Description Qty
1 MS3580, QuantumT 1 6 Flexible Shaft* 1
2 Pivot Cylinder 1 7 Base Plate Cover 1
3 Bearing Plate 1 8 #8 x 1.00" Wood Screw 4
4 Pole Mount Adapter 1 9 Base Plate 1
5 Flexible Shaft Cover* 1 10 Cable (Not Shown) 1
* Length of the Flexible Shaft and Shaft Cover are Kit Dependent
Kit Number Length of Flexible Shaft and Flexible Shaft Cover
46-00288 3 inches
46-00289 6 inches

Honeywell QuantumT MS3580 Specifications

General

Brand	Honeywell
Model	QuantumT MS3580
Category	Scanner
Language	English
