Honeywell Searchline Excel Open-Path User Manual

30
MAN0530 Issue 09 October 03 Searchline Excel
2104M0506
C4M6 tapped PL612/Bartec junction box
mounting
D3M6 tapped DVC100 junction box mounting.
E4M10 tapped DX100/DX100 (M) junction box
mounting.
F2M6 tapped Killark/Akron junction box
mounting.
G4M6 tapped Sun/heat shade mounting.
H3M8 tapped Short range Transmitter and all
Receiver brackets.
J3M10 tapped Medium/Long range Transmitter
mounting bracket.

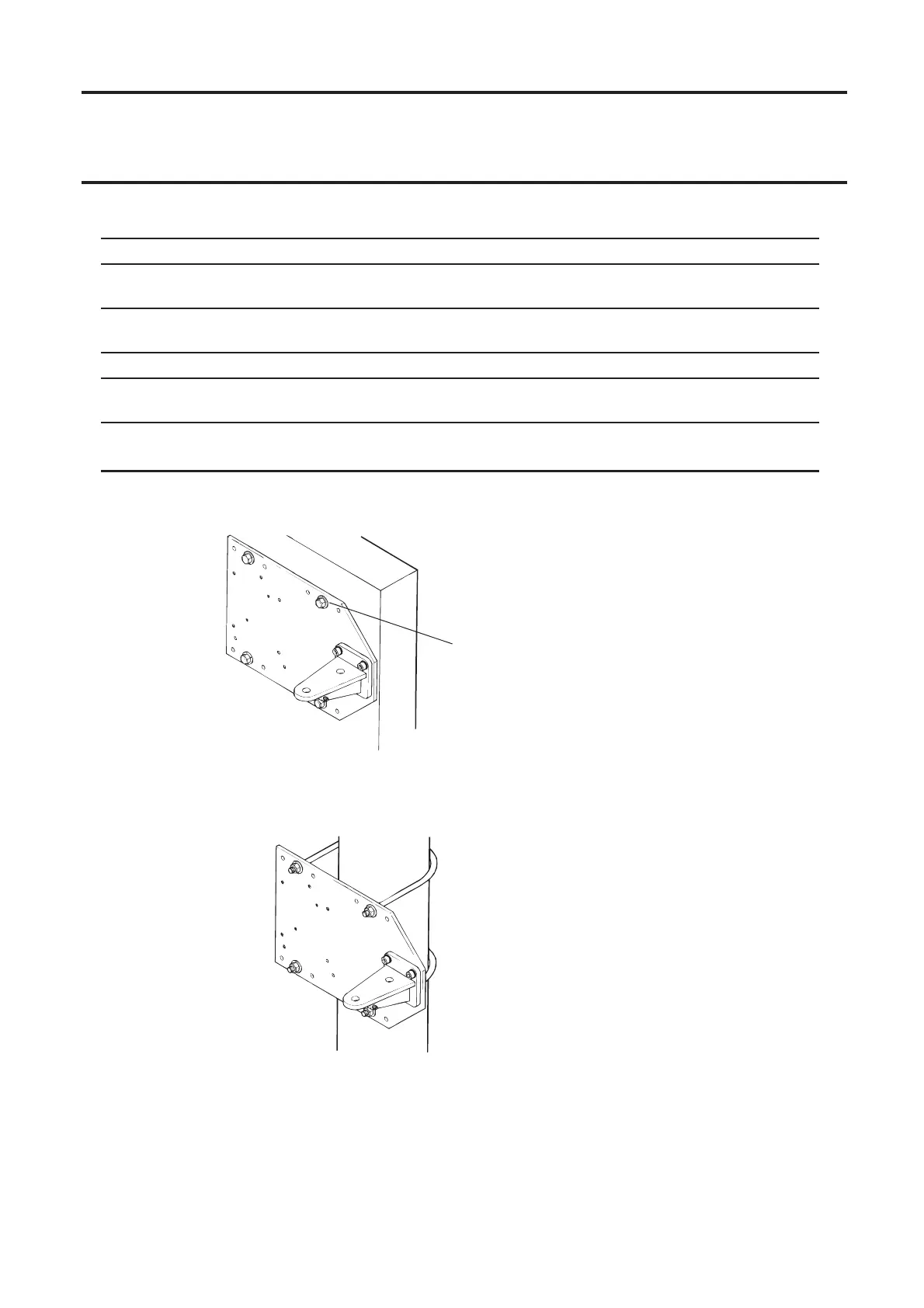

The following drawings show typical mountings:
M8 mounting bolt - 4-off
(not supplied) using holesB
Mounting Plate Fixed to Flat Surface
6in. U-bolt - 2-off
(not supplied) using
holesB
Mounting Plate Fixed to Single Pipe/Pole
3. INSTALLATION AND OPERATION
