31
MAN0530 Issue 09 October 03 Searchline Excel
2104M0506
2.5in. U-bolt - 4-off
(not supplied) using
holesA

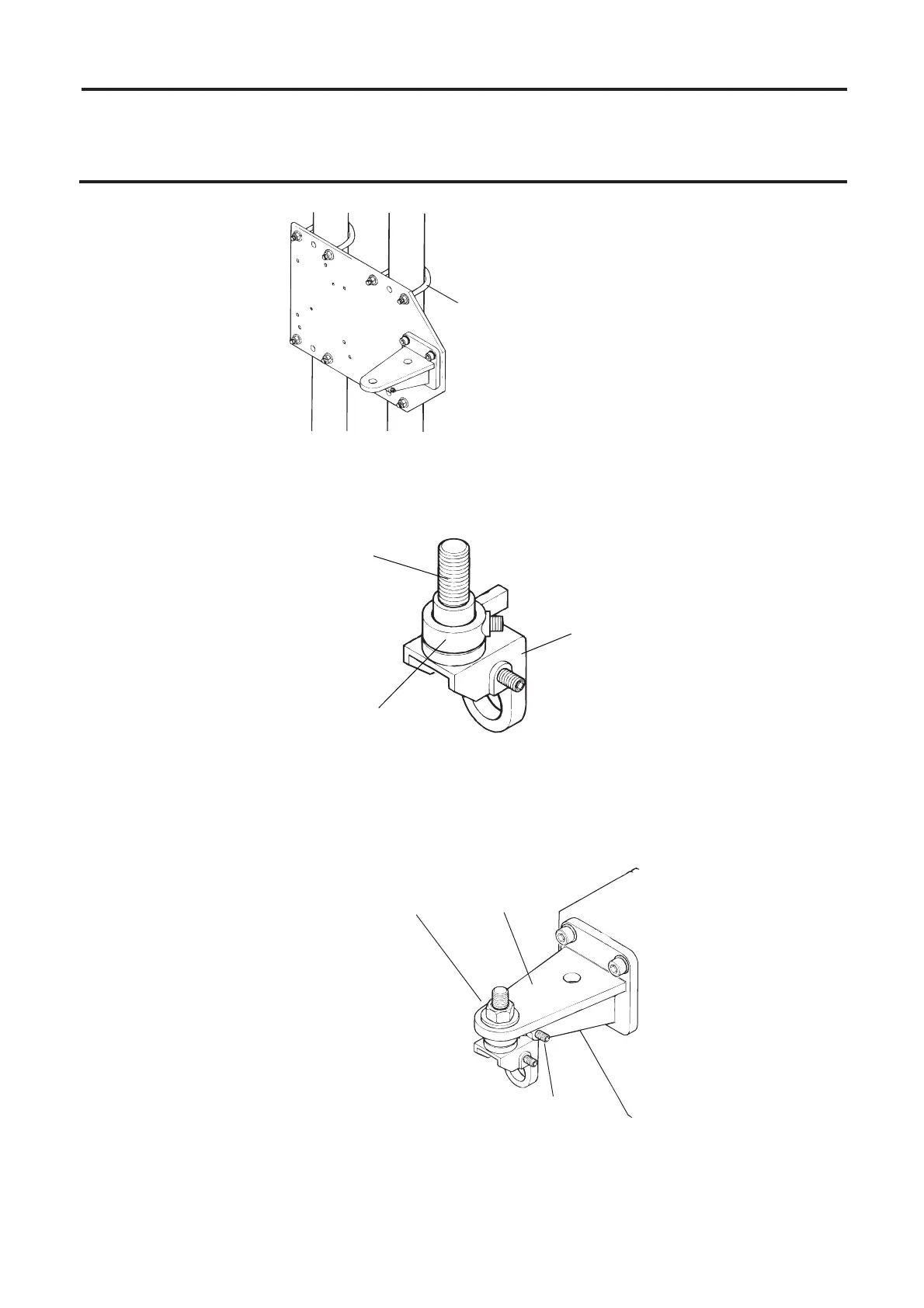

Mounting Plate Fixed to Twin Pipes/Poles
(4) Fit an adjustment clamp to the unit s pivot block mounting stud so that it sits on the
stud s shoulder. The correct orientation for the pivot blocks and clamps is as follows:
Mounting stud
Adjustment clamp
Pivot block
(5) Tighten the adjustment clamp’s grubscrews until they just grip the unthreaded part of the
stud.
(6) Fit the pivot block to the mounting bracket using a self-locking clamp nut and washer
(M12 or M20). The correct orientation for the pivot blocks and mounting brackets is as
follows:
Self-locking clamp
nut and washer
Mounting bracket
grubscrew
Mounting
bracket
Do not fully tighten the nut.
3. INSTALLATION AND OPERATION
