Honeywell TB7100A1000 MultiPRO Product Data

TB7100A1000 MULTIPRO™ MULTISPEED AND MULTIPURPOSE THERMOSTAT
63-2675—03 4

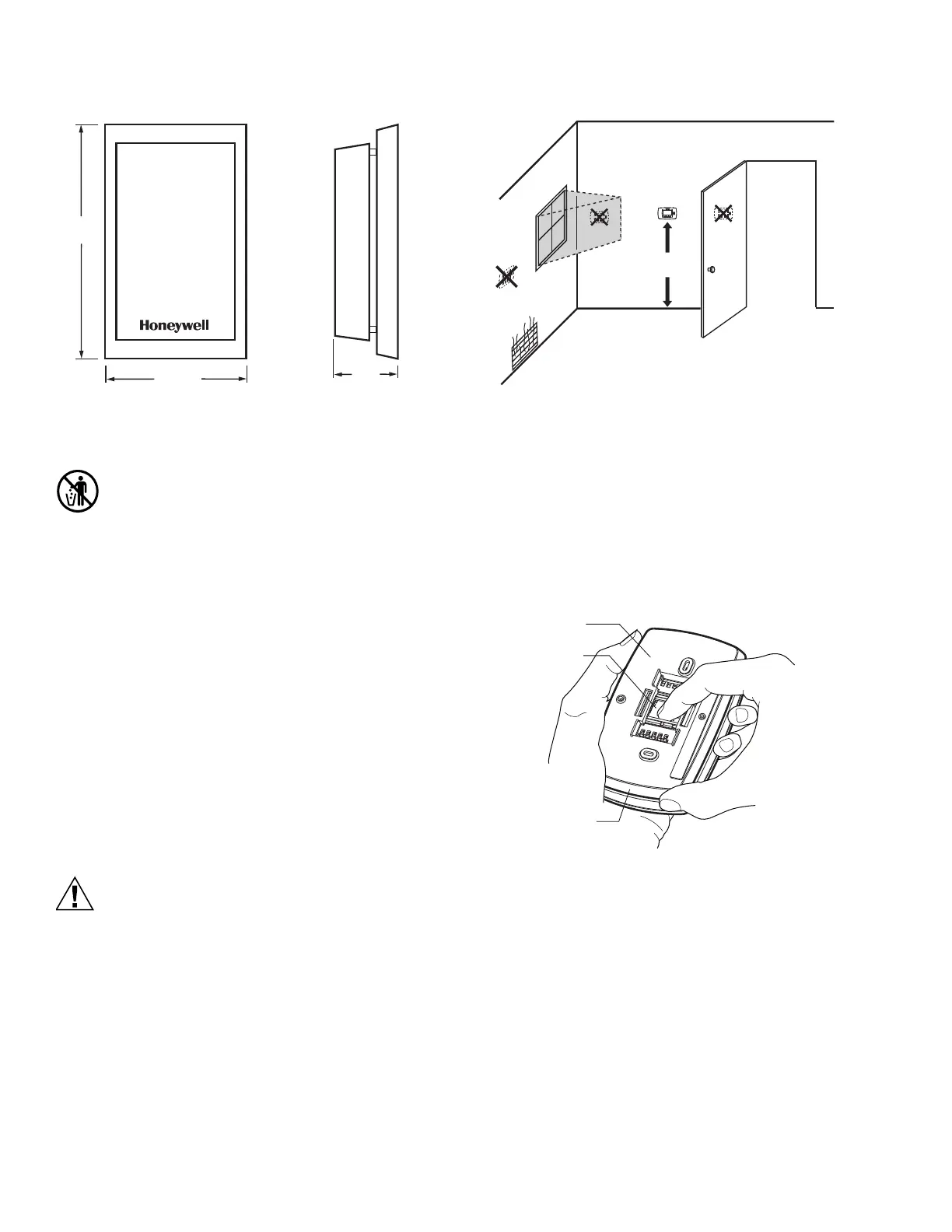

Fig. 4. C7189U Indoor Sensor dimensions in in. (mm).
MERCURY NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do not place your old
control in the trash. Dispose of properly.
Contact your local waste management authority
for instructions regarding recycling and the proper
disposal of an old control.
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a
hazardous condition.
2. Check ratings given in instructions and on the product to
ensure the product is suitable for your application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect power supply before installation.
Select Thermostat Location
Select a location for the thermostat about 5 ft (1.5m) above the
floor in an area with good air circulation at average
temperature. See Fig. 5.
Fig. 5. Select thermostat location.
Do not install the thermostat where it can be affected by:
— Drafts or dead spots behind doors and in corners.
— Hot or cold air from ducts.
— Radiant heat from sun or appliances.
— Concealed pipes and chimneys.
— Unheated (uncooled) areas such as an outside wall behind
the thermostat.
Separate Wallplate from Thermostat
1. Separate the wallplate from the thermostat. See Fig. 6.
Fig. 6. Separate wallplate from thermostat.
Install Wallplate (See Fig. 7)
Mount the thermostat horizontally on the wall:
1. Pull the wires through the wire hole on the wallplate.
2. Position the wallplate on the wall with the arrow pointing
up. Level the wallplate for appearance only.
3. Use a pencil to mark the mounting holes.
4. Remove the wallplate from the wall and drill two 3/16 in.
holes in the wall (if drywall) as marked. For firmer
material such as plaster, drill two 7/32 in. holes. Tap the
wall anchors (provided) into the drilled holes until flush
with the wall.
5. Pull the wires through the wire hole on the wallplate and
position the wallplate over the wall anchors.
6. Insert the mounting screws into the wall anchors and
tighten.
M4465
4-5/8
(117)
2-3/4 (70)
1-1/8
(29)
FRONT VIEW SIDE VIEW
5 FEET
[1.5 METERS]
YES
NO
M22258
NO
NO
THERMOSTAT
WIRE HOLE
M22267
WALLPLATE
