Page 16 Mounting the Unit on the Wall
NET1
NET2
GND
+12V
NET1
NET2
GND
+12V
At t achment
clip
At t achment
clip

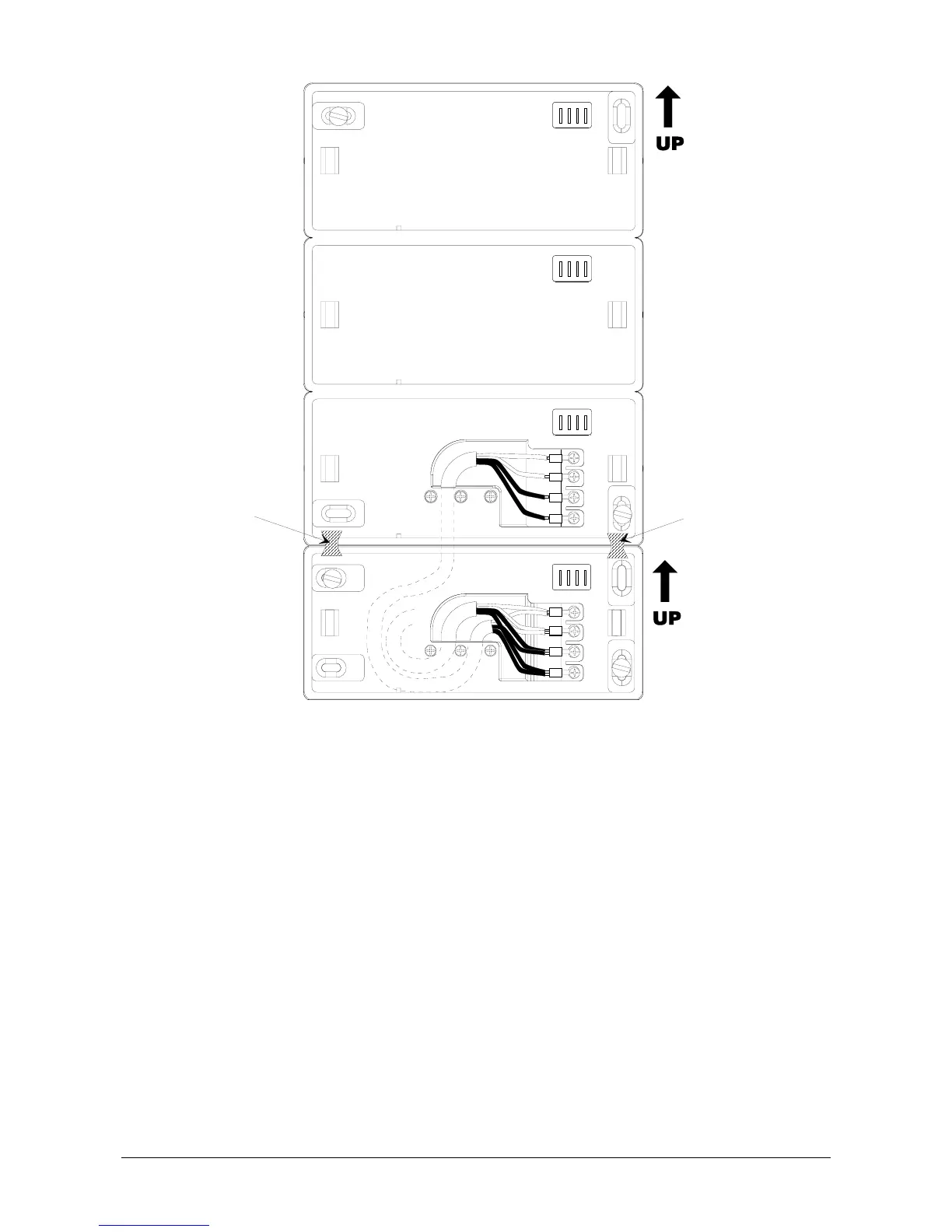

Figure 7: Combined assembly of single and triple module wall units
