Page 22

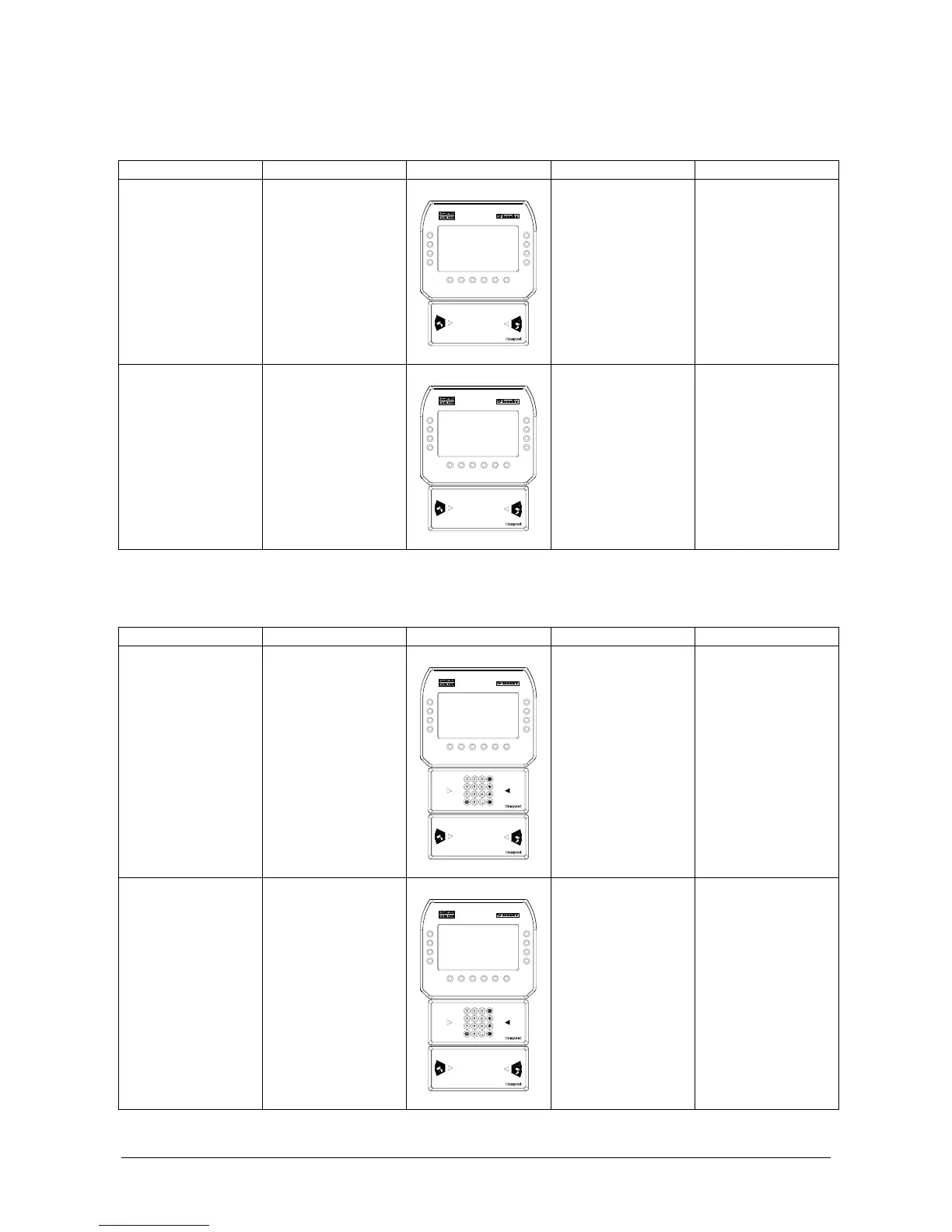

Combining the Modules
Interactive Terminals
Code Grouping
Horizontal
Vertical
Notes
TK-D27
1 x RTU-C02
1 x RTU-B07
1 x RTU-S03
NO
Weight=1.25Kg
Power=6W
Current=440mA
TK-D212
1 x RTU-C02
1 x RTU-B12
1 x RTU-S03
NO
Weight=1.25Kg
Power=6,2W
Current=460mA
Interactive Terminal
s with Keyboard
s
Code Grouping
Horizontal
Vertical
Notes
TK_T27
1 x RTU-C02
1 x RTU-T01
1 x RTU-B07
1 x RTU-S03
1 x RTU-S01
NO
Weight=1.65Kg
Power=6.4W
Current=470mA
TK_T212
1 x RTU-C02
1 x RTU-T01
1 x RTU-B12
1 x RTU-S03
1 x RTU-S01
NO
Weight=1.65Kg
Power=6.6W
Current=490mA
19
21
