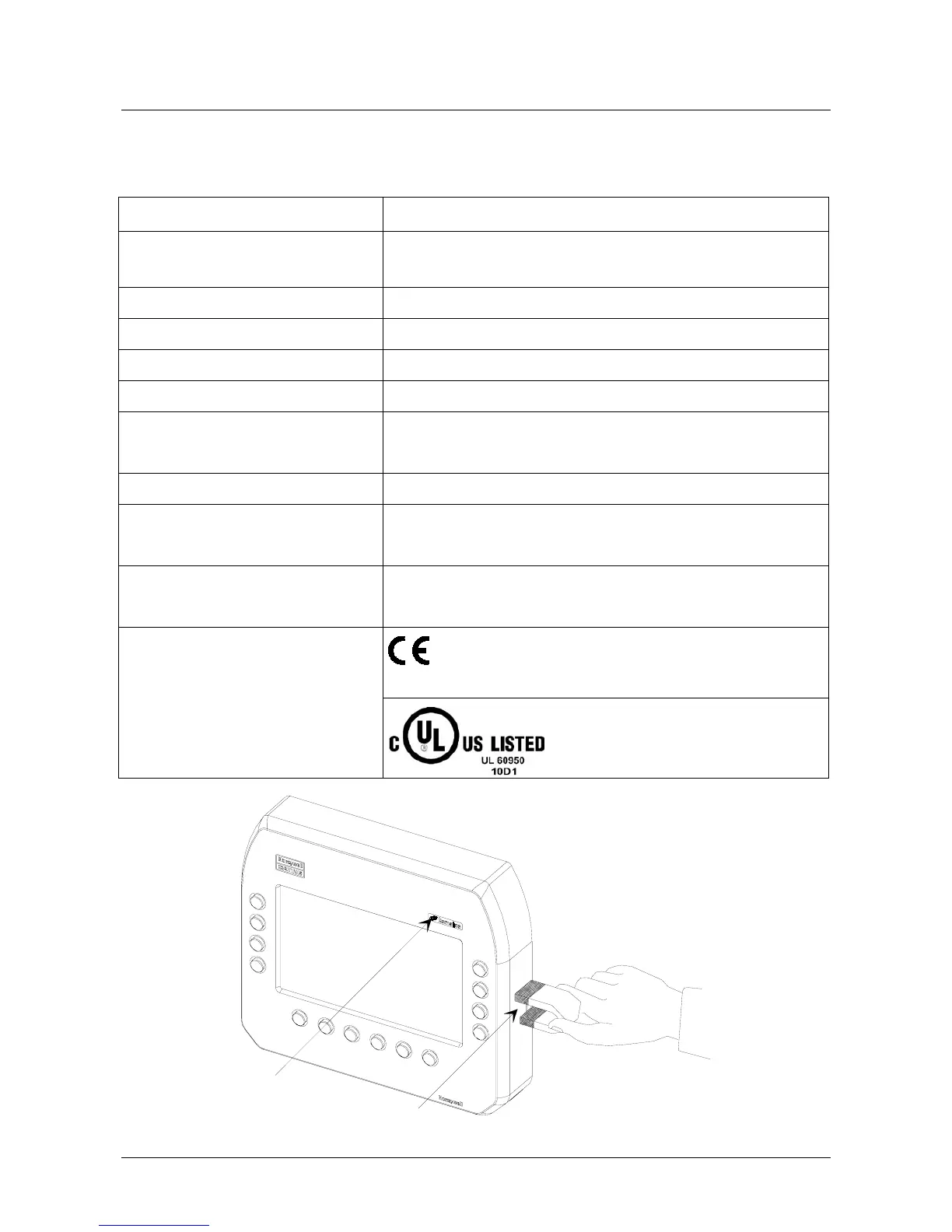

Page 30 RTU-C02 (Graphic LCD Module)
RTU-C02 (Graphic LCD Module)
Code 1500101
Parameter Value
DC power supply 12V
DC
±15% 380mA (nominal),
140mA (backlight off)
Weight 0.65 Kg
Dimensions 166 x 190 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Display Graphic LCD with backlight
240 x 128 pixels format
Keyboard 14 function keys
LONWORKS
®
connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 1 LED yellow
1 buzzer
Regulations compliance
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022
Service LED
Service Pin
