UNIPOINT OPERATING MANUAL 2306M5001 MAN0638 ISSUE 7 01/2011
5
The Unipoint controller is mounted on standard symmetrical ‘top hat’ DIN Rail (35 x 7.5mm).
To attach the Unipoint controller to the DIN rail follow the procedure below use the Installation
Diagram as reference.
1. Clip the Unipoint controller socket on to the DIN rail (note the correct orientation from the
diagram below).
2. Clip the power connector on to the DIN rail beside the controller socket.
3. Slide the connector and socket together until clip engages.
4. Attach the Unipoint Controller on to the socket by gently but rmly pushing it down onto the
socket until it clips in place.
5. Additional Unipoint Controllers can be added to the DIN rail on the right hand side of the rst
unit. Clip additional controller sockets to rail and slide together until clips engage. Then attach
the additional Unipoint Controllers.
Note: If mounting the Unipoint controller(s) inside an enclosure, ensure that the temperature inside
the enclosure does not exceed the specified operating temperature.

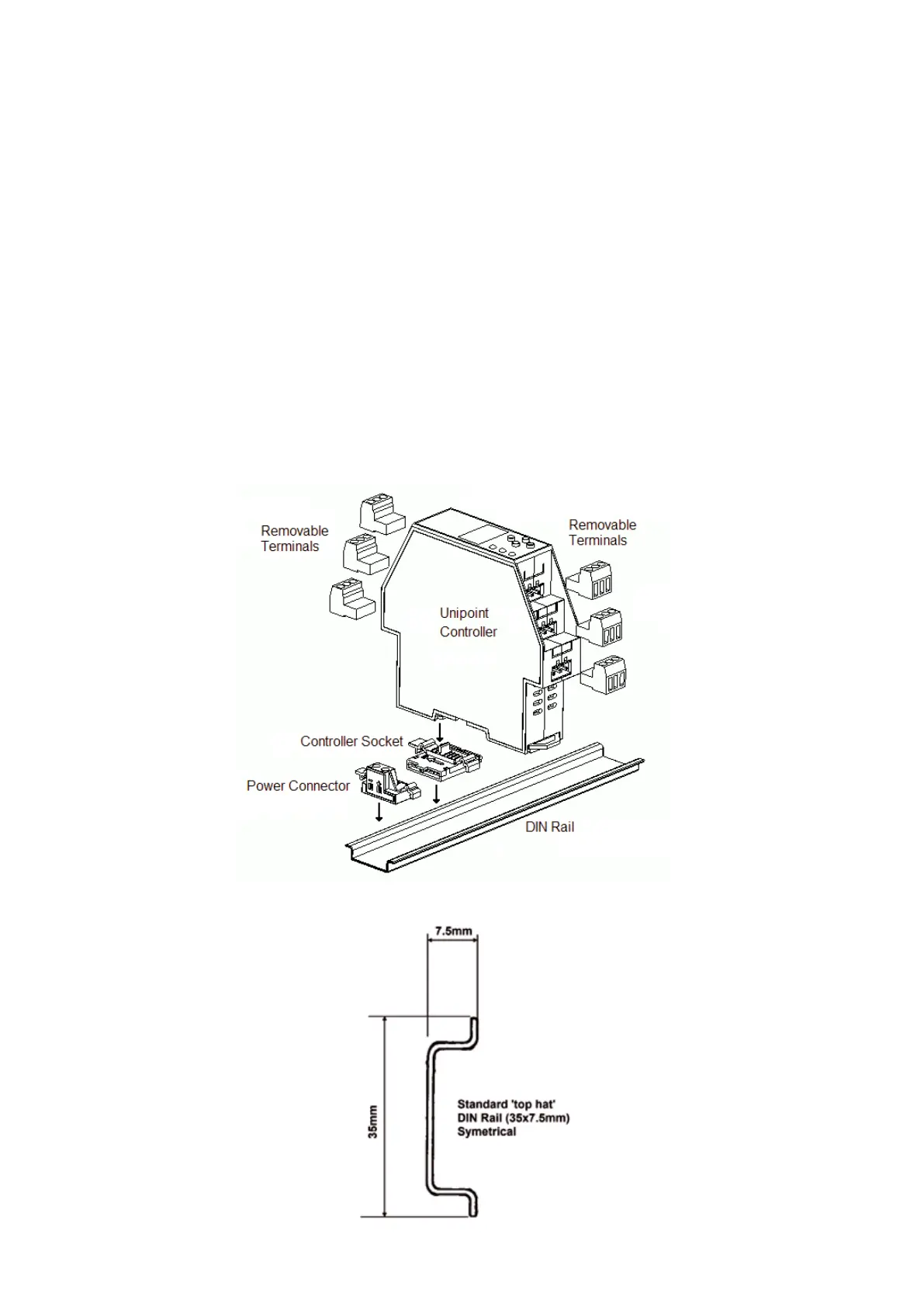

Installation Drawing
DIN Rail Drawing
