Honeywell Voyager 1452g Series - Standard Cable Pinouts; Serial Output; Usb

11 - 4

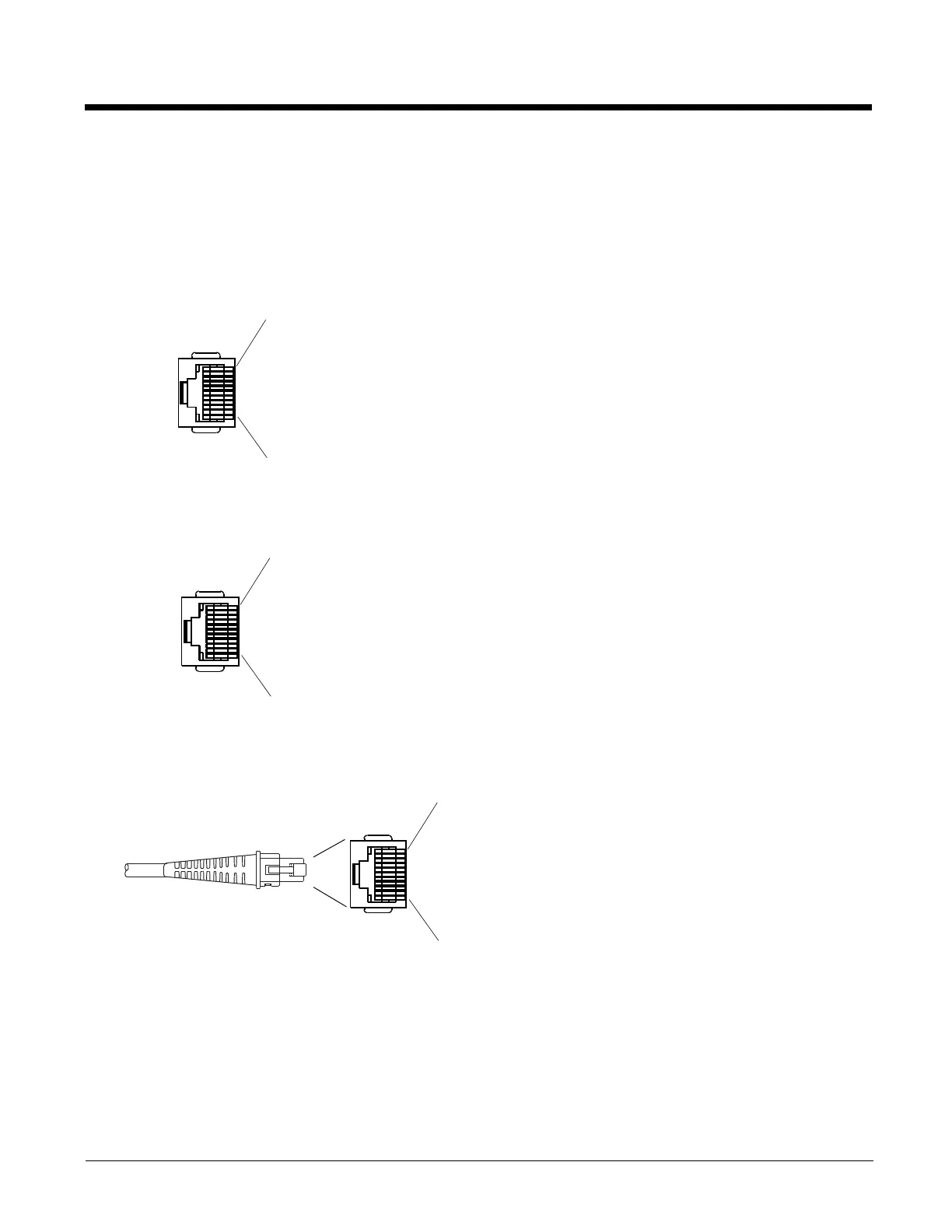

Standard Cable Pinouts
Note: The following pin assignments are not compatible with Honeywell legacy products. Use of a cable with improper pin
assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage
not covered by your warranty.
Keyboard Wedge
10 Pin RJ41 Modular Plug
Serial Output
10 Pin RJ41 Modular Plug
USB
10 Pin Modular Plug
1 Cable shield
2 Cable select
3 Supply ground
4 Terminal data
5 Terminal clock
6 Keyboard clock
7+5V power
8 Keyboard data
9
10
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6CTS
7 +5V power
8RTS
9
10
1 Cable shield
2 Cable select
3 Supply ground
4
5
6
7 +5V power
8
9Data +
10 Data -
