Honeywell Voyager 1452g Series - RS485 Output

11 - 5
RS485 Output

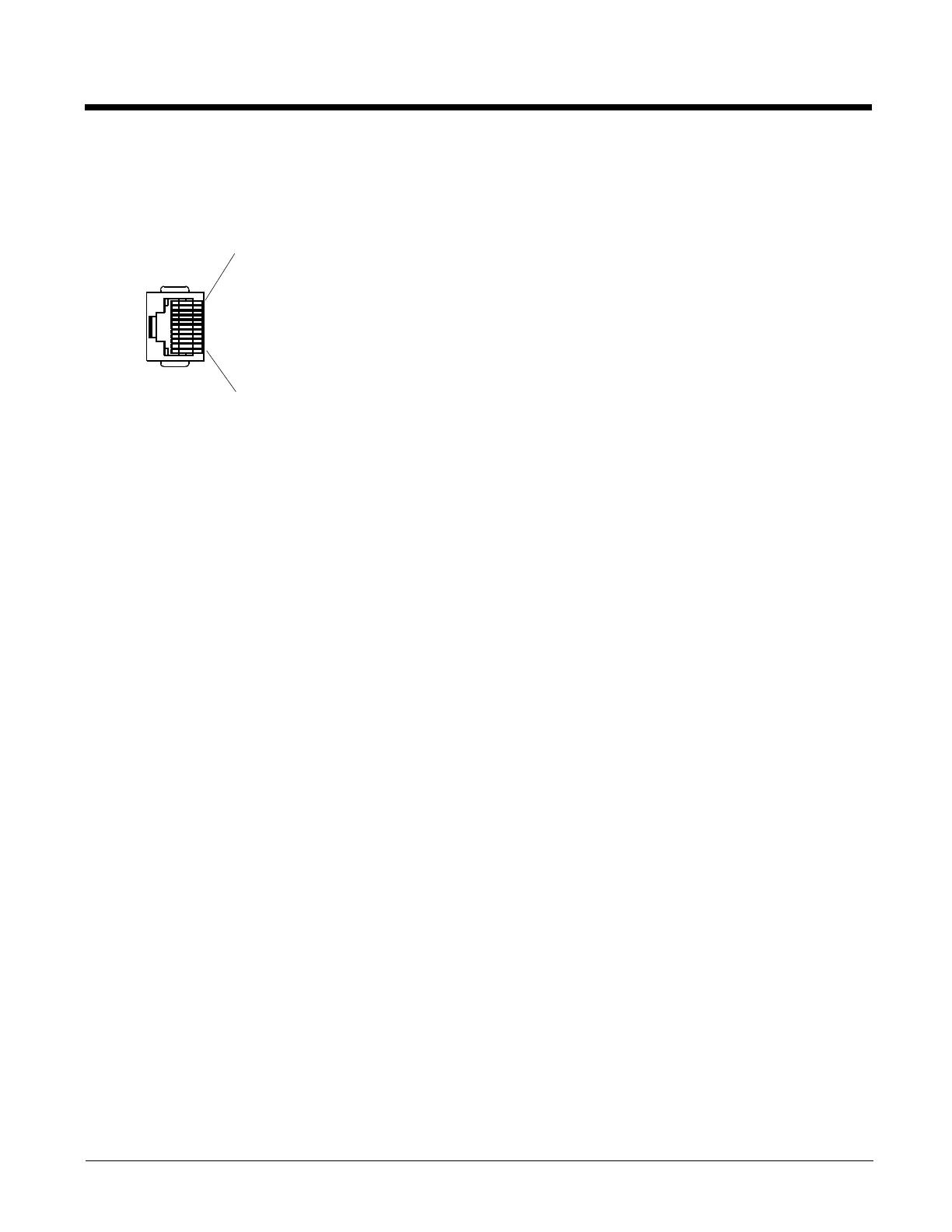

10 Pin RJ41 Modular Plug
Note: RS485 signal conversion is performed in the cable.
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7+5V power
8 Transmit Enable
9
10
