Honeywell XNX User Manual

XNX Universal Transmitter Quick Start Guide
15

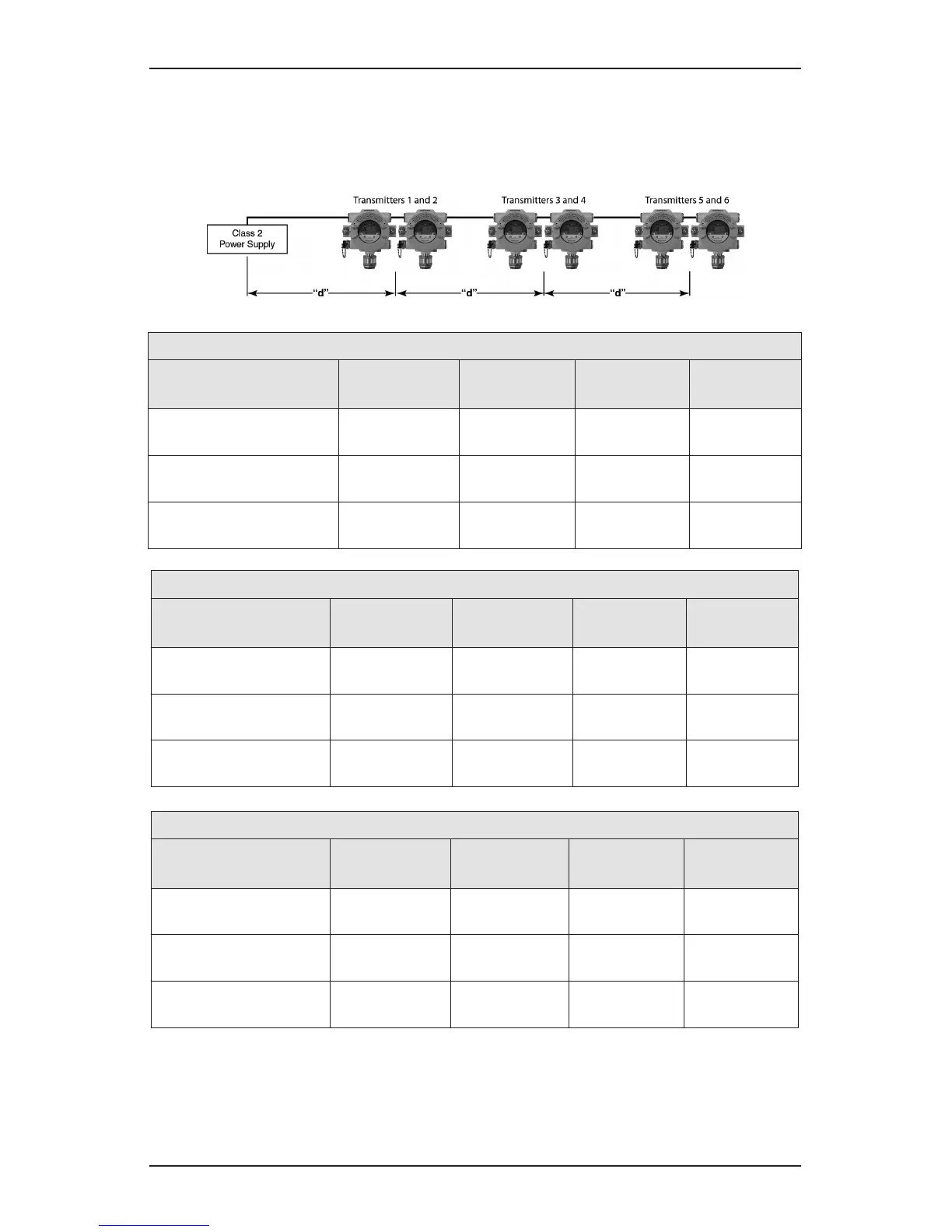

2. Severaltransmittersinstalledinpairswitheachpairequallyspaced
fromthemselvesandthepowersource.Thesedistancesassume
thepairedtransmittersareinstalledwithin10feet[3meters]of
eachother.
2 Transmitters - Distance “d”
Conguration
18 AWG
[1�0 mm
2
]
16 AWG
[1�5 mm
2
]
14 AWG
[2�0 mm
2
]
12 AWG
[3�5 mm
2
]
XNX mV or EC
With Sensor
485 feet
[147 meters]
775 feet
[235 meters]
1230 feet
[292 meters]
1970 feet
[600 meters]
XNX IR with
Searchpoint Optima Plus
380 feet
[115 meters]
600 feet
[180 meters]
960 feet
[290 meters]
1540 feet
[470 meters]
XNX IR with
Searchline Excel
280 feet
[85 meters]
440 feet
[134 meters]
700 feet
[213 meters]
1130 feet
[344 meters]
4 Transmitters - Distance “d”
Conguration
18 AWG
[1�0 mm
2
]
16 AWG
[1�5 mm
2
]
14 AWG
[2�0 mm
2
]
12 AWG
[3�5 mm
2
]
XNX mV or EC
With Sensor
190 feet
[58 meters]
300 feet
[91 meters]
480 feet
[146 meters]
770 feet
[234 meters]
XNX IR with
Searchpoint Optima Plus
110 feet
[33 meters]
175 feet
[53 meters]
280 feet
[85 meters]
450 feet
[137 meters]
XNX IR with
Searchline Excel
90 feet
[27 meters]
145 feet
[44 meters]
235 feet
[71 meters]
375 feet
[114 meters]
6 Transmitters - Distance “d”
Conguration
18 AWG
[1�0 mm
2
]
16 AWG
[1�5 mm
2
]
14 AWG
[2�0 mm
2
]
12 AWG
[3�5 mm
2
]
XNX mV or EC
With Sensor
95 feet
[33 meters]
150 feet
[45 meters]
240 feet
[73 meters]
385 feet
[117 meters]
XNX IR with
Searchpoint Optima Plus
55 feet
[17 meters]
85 feet
[26 meters]
140 feet
[42 meters]
225 feet
[68 meters]
XNX IR with
Searchline Excel
45 feet
[14 meters]
70 feet
[21 meters]
115 feet
[35 meters]
185 feet
[56 meters]

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
