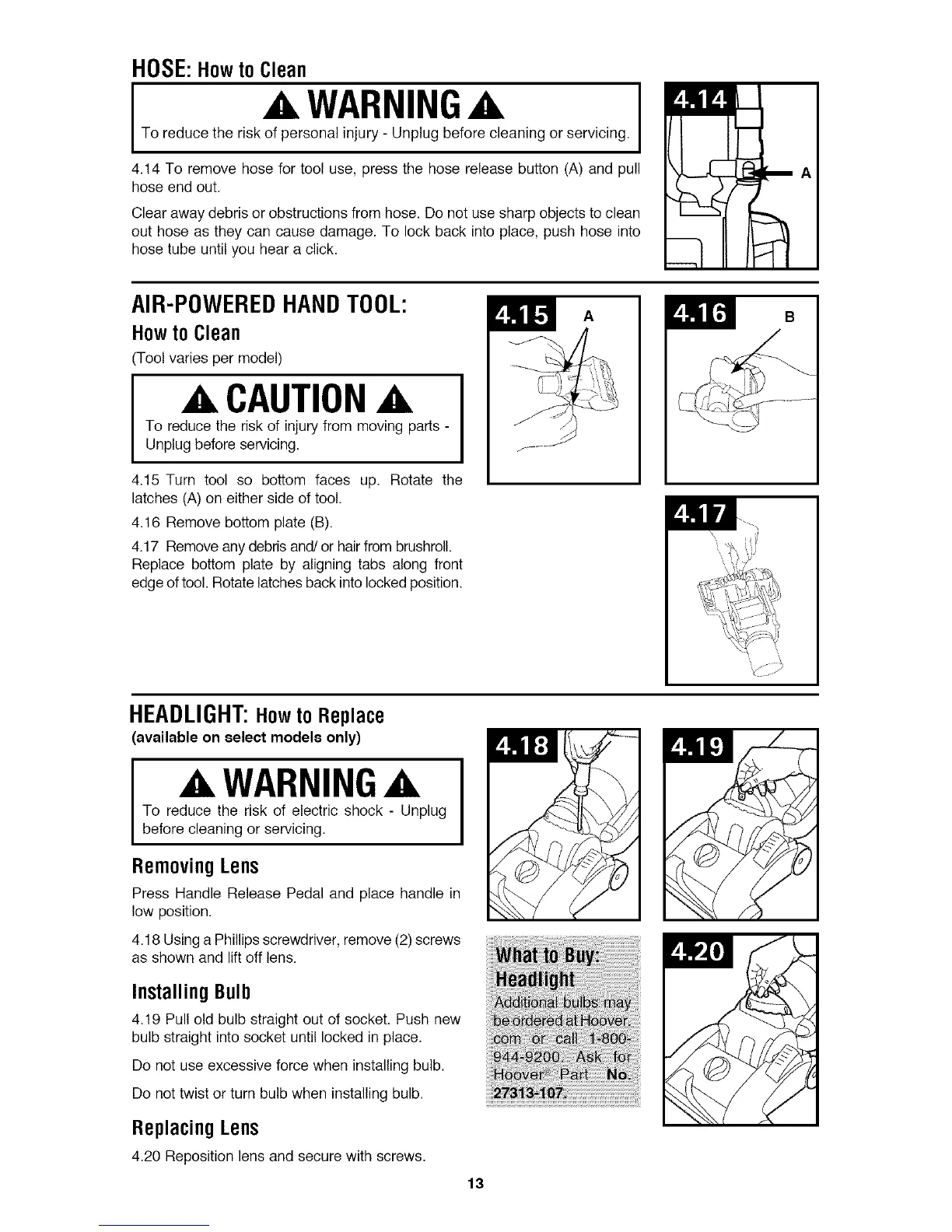

HOSE:Howto Clean
A WARNINGA I
To reduce the risk of personal injury - Unplug before cleaning or servicing.
4.14 To remove hose for tool use, press the hose release button (A) and pull
hose end out.
Clear away debris or obstructions from hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push hose into
hose tube until you hear a click.
AIR-POWERED HAND TOOL:
Howto Clean
(Tool varies per model)
A CAUTIONA
To reduce the risk of injury from moving parts -
Unplug before servicing.
4.15 Turn tool so bottom faces up. Rotate the
latches (A) on either side of tool.
4.t6 Remove bottom plate (B).
4.17 Remove any debris and/or hair from brushroll.
Replace bottom plate by aligning tabs along front
edge of too!. Rotate latches back into locked position.
HEADLIGHT:Howto Replace
(available on select models only)
A WARNINGA
To reduce the risk of electric shock - Unplug
before cleaning or servicing.
RemovingLens
Press Handle Release Pedal and place handle in
low position.
4.18 Usinga Phillips screwdriver, remove (2) screws
as shown and lift off lens.
InstallingBulb
4.19 Pull old bulb straight out of socket. Push new
bulb straight into socket until locked in place.
Do not use excessive force when installing bulb.
Do not twist or turn bulb when installing bulb.
ReplacingLens
4.20 Reposition lens and secure with screws.
13
