Commander mPd 1.4m
10
Horizontal Tail Installation

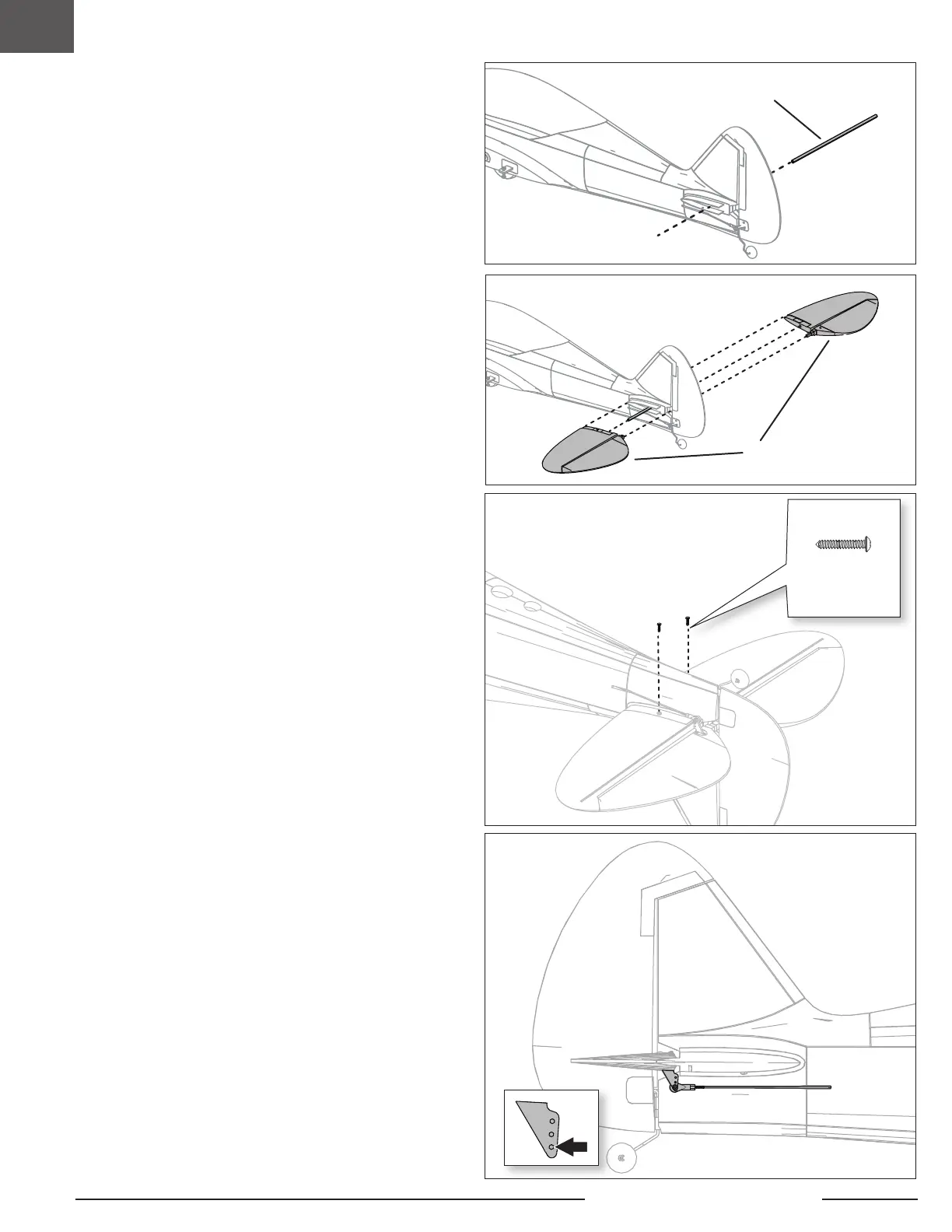

1. Slide the horizontal stabilizer joiner tube (A) into the hole in the fuselage.
2. Slide the left and right horizontal tail halves (B) over the joiner tube and into
place in the fuselage. Ensure the control horn faces down.
3. Secure the horizontal tail halves in place using the included 2 self-
tapping screws (2.8 x 10mm) (C). Use caution to avoid over-tightening the
screw.
Tip: Use ball link pliers (BLH100) to remove or install a link on a control horn
Disassemble in reverse order.
C
2.8 x 10mm
Self Tapping
Screw
A
B
To Next Page
