EN
5
PNP Receiver Selection and Installation
AR631 Port
Assignments
BND/PRG/SRXL2
1 = Throttle
2 = Aileron
3 = Elevator
4 = Rudder
5 = NA
6 = Flaps
The recommended receiver for this aircraft is the Spektrum AR631. If you choose to
install a different receiver, ensure that it is at least a 6-channel full range receiver.
Refer to the manual of your chosen receiver for correct installation and operation
instructions.

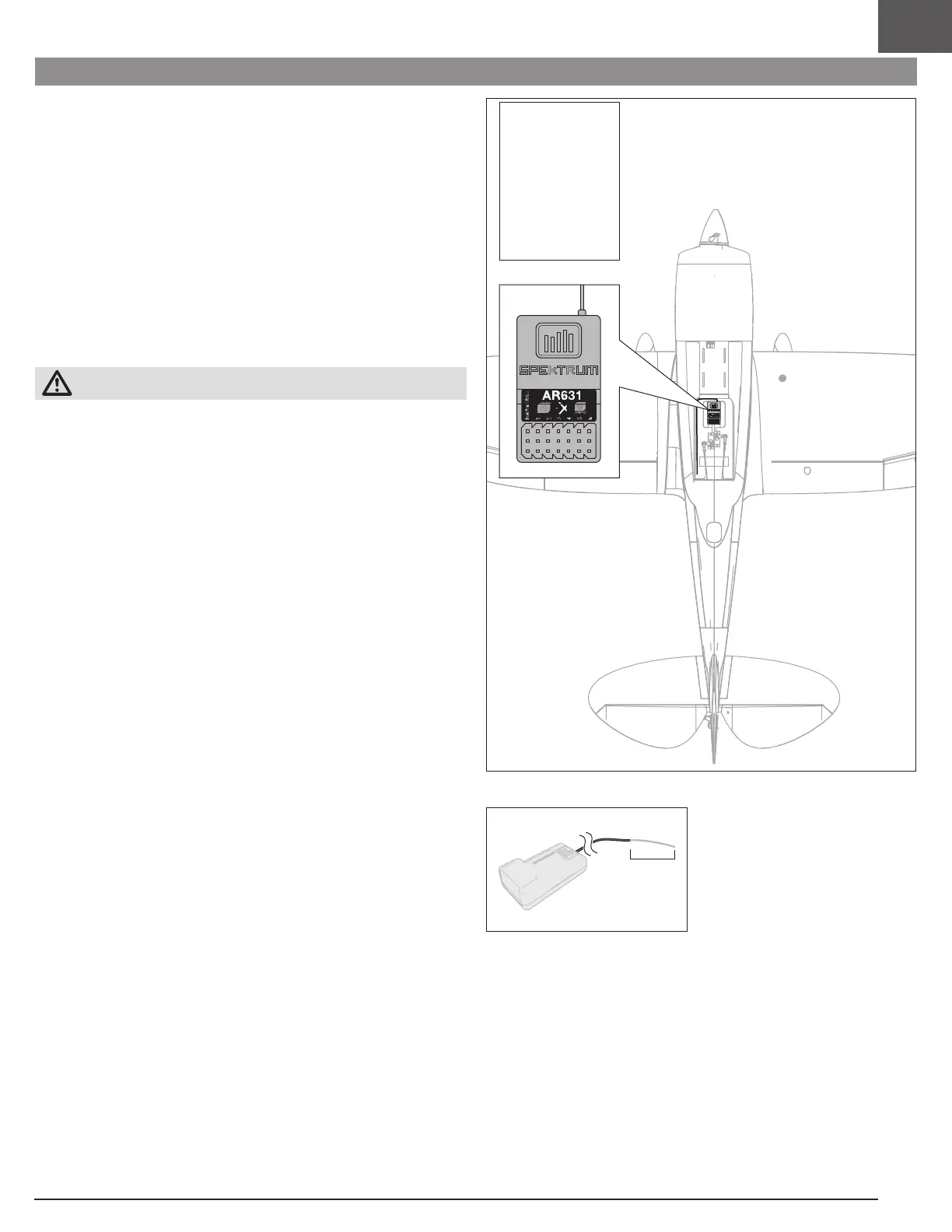

AR631 Installation
1. Remove the canopy hatch by pulling up on the back of the hatch to expose the
receiver compartment.
2. Connect the control surface servos to the their respective ports on the receiver
using the table at the right.
3. Using double-sided servo tape (not included) mount the receiver to the flat area
of the receiver compartment, as shown. The receiver (A) should be mounted
in the orientation shown, parallel to the length of the fuselage, with the label
facing up and the servo ports facing the rear of the aircraft. The orientation of
the receiver is critical for all AS3X
®
and SAFE
®
technology setups.
4. Route the antenna to the left side and to the rear of the fuselage as shown.
CAUTION: Incorrect installation of the receiver could cause a crash.
A
Active portion
of antenna.
To Next Page
