EN
11
Install the Propeller

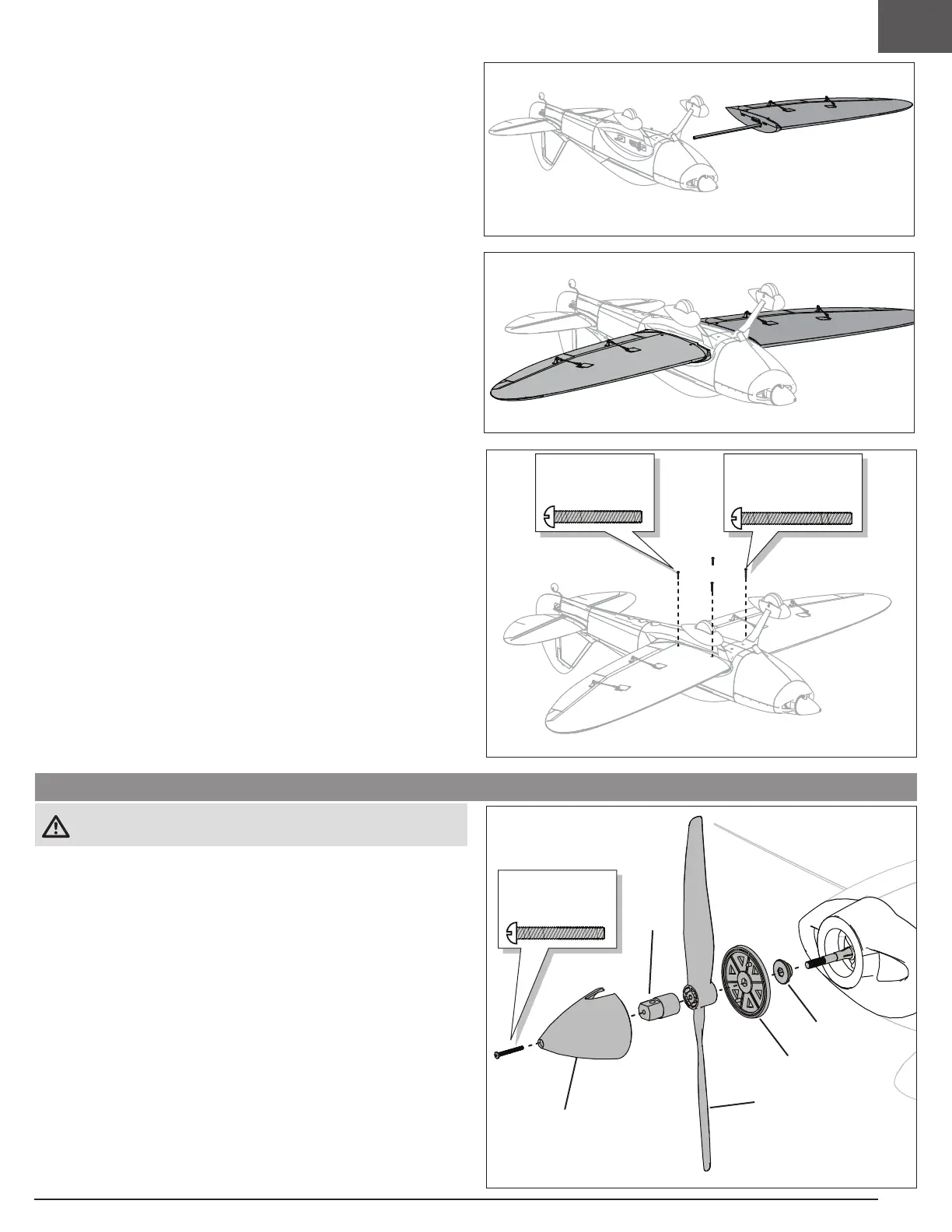

Wing Installation
IMPORTANT: Integrated servo connectors are in the wing and fuselage. Ensure
that they slide together correctly.
1. Insert the wing joiner tube (10mm x 585mm) into one of the wings and slide
into the hole in the fuselage.
2. Slide the other wing half onto the wing joiner tube and secure the wing halves
into position using a Phillips screwdriver and the included 4 screws. Use the
screws (M4 x 20mm) (A) for rear holes and screws (M4 x 25mm) (B) for the
front holes.
Disassemble in reverse order.
A
M4 x 20mm
Machine Screw
B
M4 x 25mm
Machine Screw
CAUTION: Before connecting a flight battery and binding to a transmitter,
remove the factory installed propeller.
1. Slide the hub (A), spinner backplate (B) and propeller (C) on the propeller shaft.
2. Install the spinner nut (D). Use a tool (for example, a screw driver) in the hole in
the side of the spinner nut and turn the spinner nut clockwise to tighten.
3. Install the spinner (E) and secure in place with the spinner
screw (M3 x 30mm) (F).
Propeller Usage
• 12 x 6E propeller for use with 4S battery (included)
• 13 x 8E propeller for use with 3S battery (sold separately)
E
C
D
F
M3 x 30mm
Machine Screw
A
B
