97-6331 • HOTSY 558-559 • REV. 4/06
OPERATOR’S MANUAL
PRESSURE WASHER
24
REF. NO.PART NO. DESCRIPTION QTY.
1 847750 Wire Cover 12 in
2 825989 Cord 12/3 SJO 2.5 ft
3 876032 Strain Relief 4
4 70-180503 Screw #4 x 10 2
5 70-030207 Nut 2
6 814044 Motor Reset Switch 1
7 936788 Nylon Washer 7/16" 1
8 950186 Pump Switch 1
9 646362 Control Box Decal 1
10 950187 Burner Switch 1
11 915390 Thermostat Mounting Plate 1
12 835150 Thermostat Dial 1
13 826011 Cord 16/2 SJO 57 in
14 70-80503 Screw M4 x 10 2
15 768342 Pilot Indicator Light 1
1
2
3
4
6
8
9
10
11
12
13
27
14
15
17
18
29
24
20
21
22
24
23
25
26
28

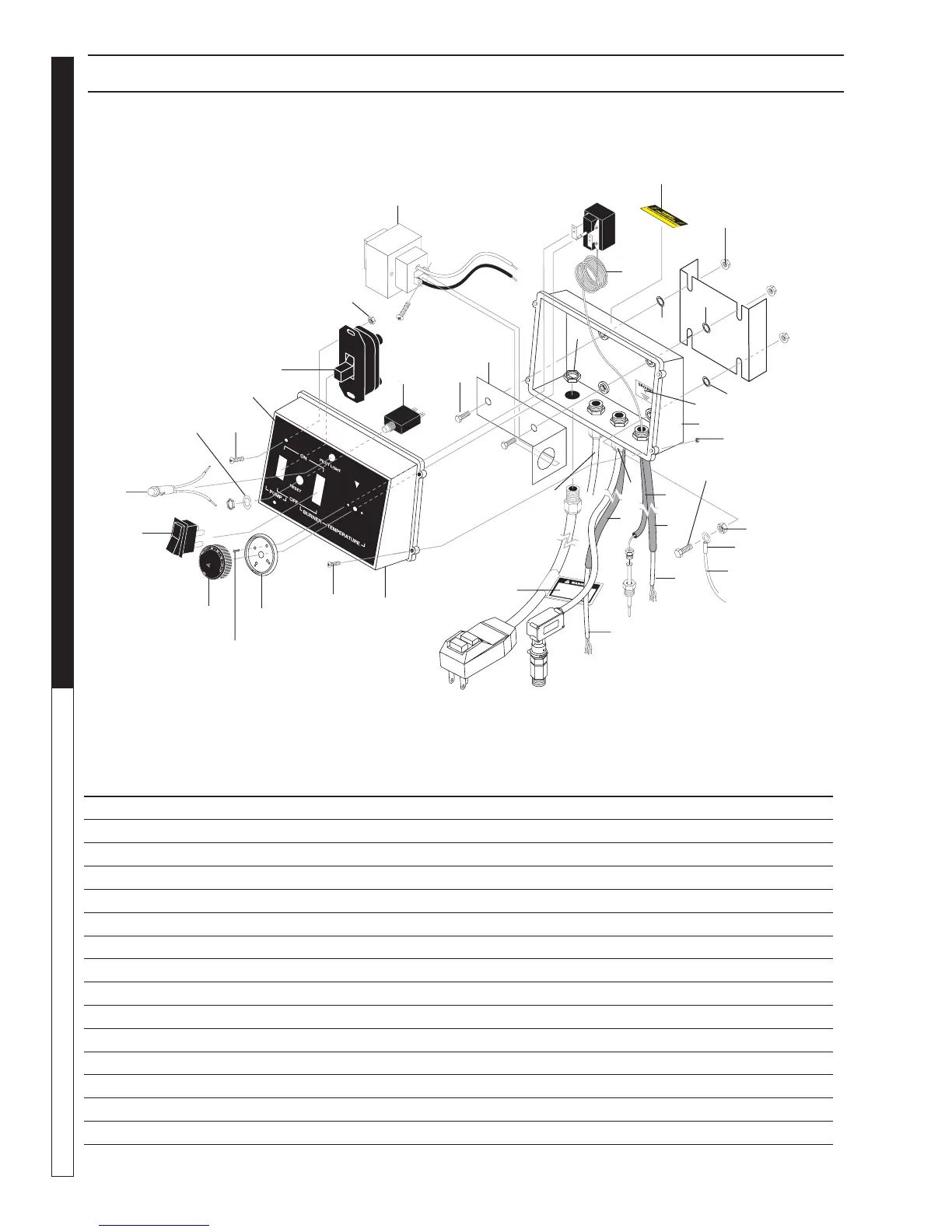

FIGURE 15 - CONTROL BOX ASSEMBLY
