97-6331 • HOTSY 558-559 • REV. 4/06
31
PRESSURE WASHER
OPERATOR’S MANUAL
VBA UNLOADER VALVE
ITEM# PART # DESCRIPTION KIT QTY
1 70-140725 Outlet Connector 1
2 70-050199 O-Ring 3068 A,B 1
3 70-060119 Spring B 1
4 70-110207 Poppet B 1
5 70-140802 Seal Washer 3/8 4
6 70-060174 O-Ring 2050 A,C 1
7 70-450400 Ball, Sub Assembly 1
8 70-010111 Guide Bushing 1
9 70-060170 O-Ring 108 A 2
10 70-140724 Connector 1
11 70-000918 O-Ring, Teflon A 1
12 70-120207 Plate C 1
13 70-030209 Nut, 20mm x 1.5mm 1
14 70-180004 Banjo Bolt, 3/8 2
15 70-020432 Body ST-MT 1
70-020433 Body D 1
70-020434 Body SST 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
9
5
ITEM# PART # DESCRIPTION KIT QTY
16 70-150316 Seat C 1
17 70-060114 O-Ring 2056 A 1
18 70-000919 O-Ring, Teflon A 1
19 70-060462 O-Ring 3081 A 1
20 70-120611 Stem C 1
21 70-090031 Spring C 1
22 70-180304 Screw, Set 1
23 70-090510 Knob, Brass 1
Kit "A" 70-262800 O-Ring Repair Kit
Kit "B" 70-262801 Outlet Kit
Kit "C" 70-262802 Stem Repair Kit

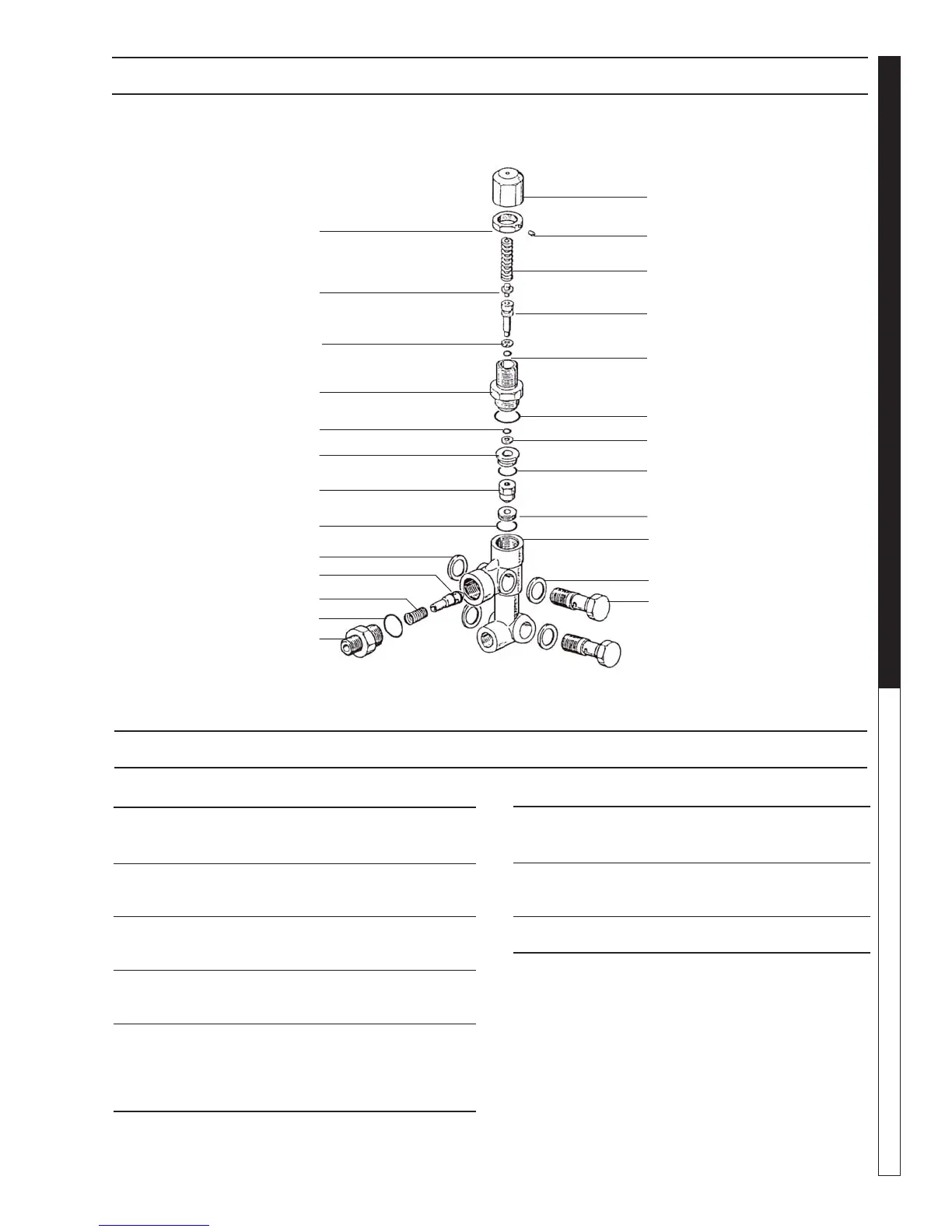

VBA UNLOADER EXPLODED VIEW PARTS LIST
To Next Page
