97-6331 • HOTSY 558-559 • REV. 4/06
OPERATOR’S MANUAL
PRESSURE WASHER
26

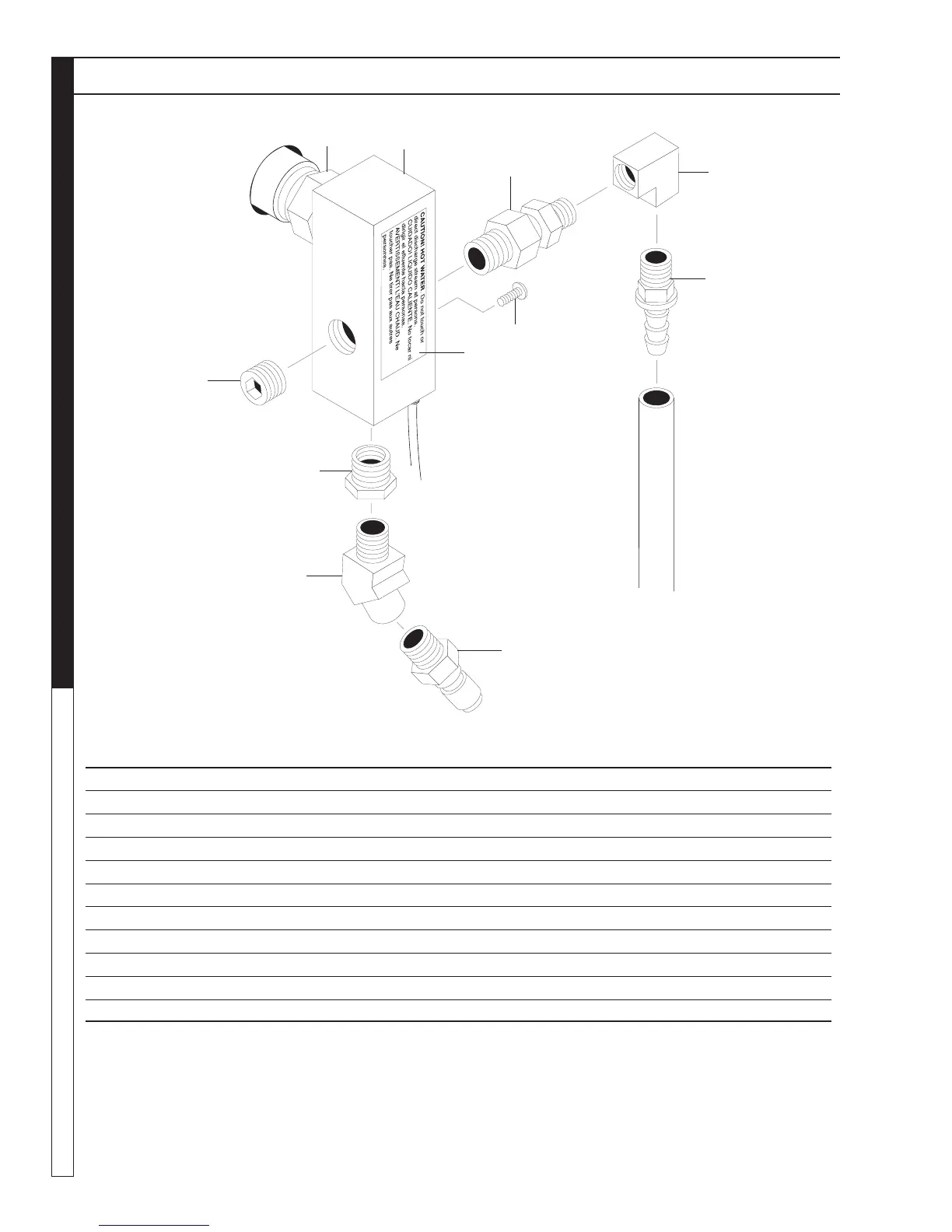

FIGURE 16 - COIL OUTLET ASSEMBLY
REF. NO.PART NO. DESCRIPTION QTY.
1 2-10999 Manifold 1
2 90-1981 Screw, Pan Head, 4mm x 4mm 1
3 2-3409 Rupture Disk 1
4 2-1019 Elbow, 3/8" Female, Brass 1
5 698247 Nipple, Pipe, 1/2" x 2" 1
6 2-00494 Plug, 1/2" Allen Countersunk 1
7 2-00681 Bushing, 1/2" x 3/8" Steel 1
8 2-2007 Nipple, 3/8" x 3/8" NPT ST Male 1
9 2-10862 Hosebarb, 3/8" Barb x 3/8" ML Pipe 1
10 10-09004 Label, Hot Water Outlet 1
11 2-00575 Elbow, 3/8, 45° Steel 1
5
4
3
9
1
6
7
8
10
2
11
