Hoval Max-3 plus Series User Manual

234 214 283 / 00
TECHNICAL INFORMATION

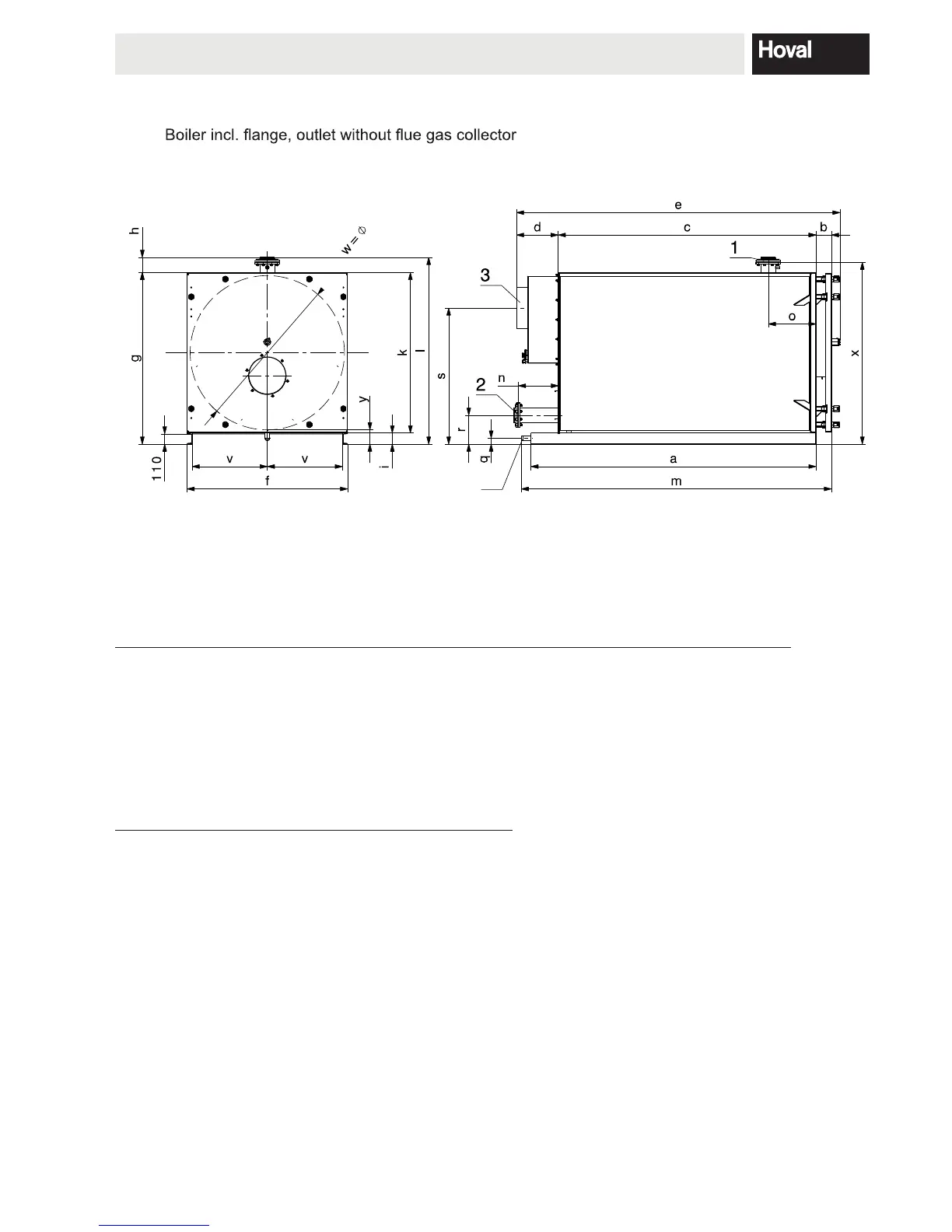

3.5 Dimensions without thermal insulation and casing Max-3 plus (420-2700)
(Dimensions in mm)
1 Flow
2 Return
3 Flue gas outlet
4 Drain
Max-3 plus
Type a* b c d e f g h i k l m n o p
(420-530)
1920 150 1770 277 2222 1060 1180 196 120 1060 1376 2077 175 460 1072
(620-750)
2195 150 2045 228 2498 1180 1300 196 120 1180 1496 2353 172 485 1192
(1000-1250)
2480 150 2330 228 2783 1370 1500 160 120 1380 1660 2638 198 500 1392
(1500)
2909 164 2569 260 3053 1560 1680 170 120 1560 1850 2973 240 510 –
(1800)
3281 166 2759 430 3415 1720 1840 170 120 1720 2010 3355 430 510 –
(2200)
3581 166 3059 430 3715 1720 1840 170 120 1720 2010 3655 430 510 –
(2700)
3913 168 3390 430 4048 1720 1840 170 120 1720 2010 3988 430 510 –
Max-3 plus
Type qrsvwxyz
(420-530)
175 350 950 475 990 1330 150 1140
(620-750)
170 550 1050 535 1110 1445 145 1260
(1000-1250)
175 415 1250 630 1298 1660 150 1450
(1500)
60 310 1350 725 1498 1790 145 –
(1800)
65 310 1480 805 1656 1950 145 –
(2200)
65 310 1480 805 1656 1950 145 –
(2700)
65 310 1410 820 1656 1980 145 –
* Max-3 plus (1500-2700) boiler socket is protruding
