74 214 283 / 00
ASSEMBLY
2.2 Mounting the thermal insulation Max-3 plus (420-750)
1. Wrap the insulating mats (1/1a, Fig. 03) around the boiler body (joint at the side, black side outwards).
2. Secure insulating mats (1/1a) with plastic straps (2) and strap fasteners (2a):
-
- do not overtighten the straps (reduced insulating value)
3.
4. Place insulating mat (4, Fig. 03) on the pins welded to the rear wall of the boiler and secure with the retaining discs (Fig. 02).
5. Place insulating mats (5/5a/5b/5c, Fig. 03) on the pins mounted to the front wall of the boiler and secure with the retaining discs (Fig. 02).
6.
The remaining insulating mats (7a/17, Fig. 06) are put in place later on.
Before commencing to mount the cladding,
check the dimension between the top edge of the boiler plinth rail
and the retaining rail.

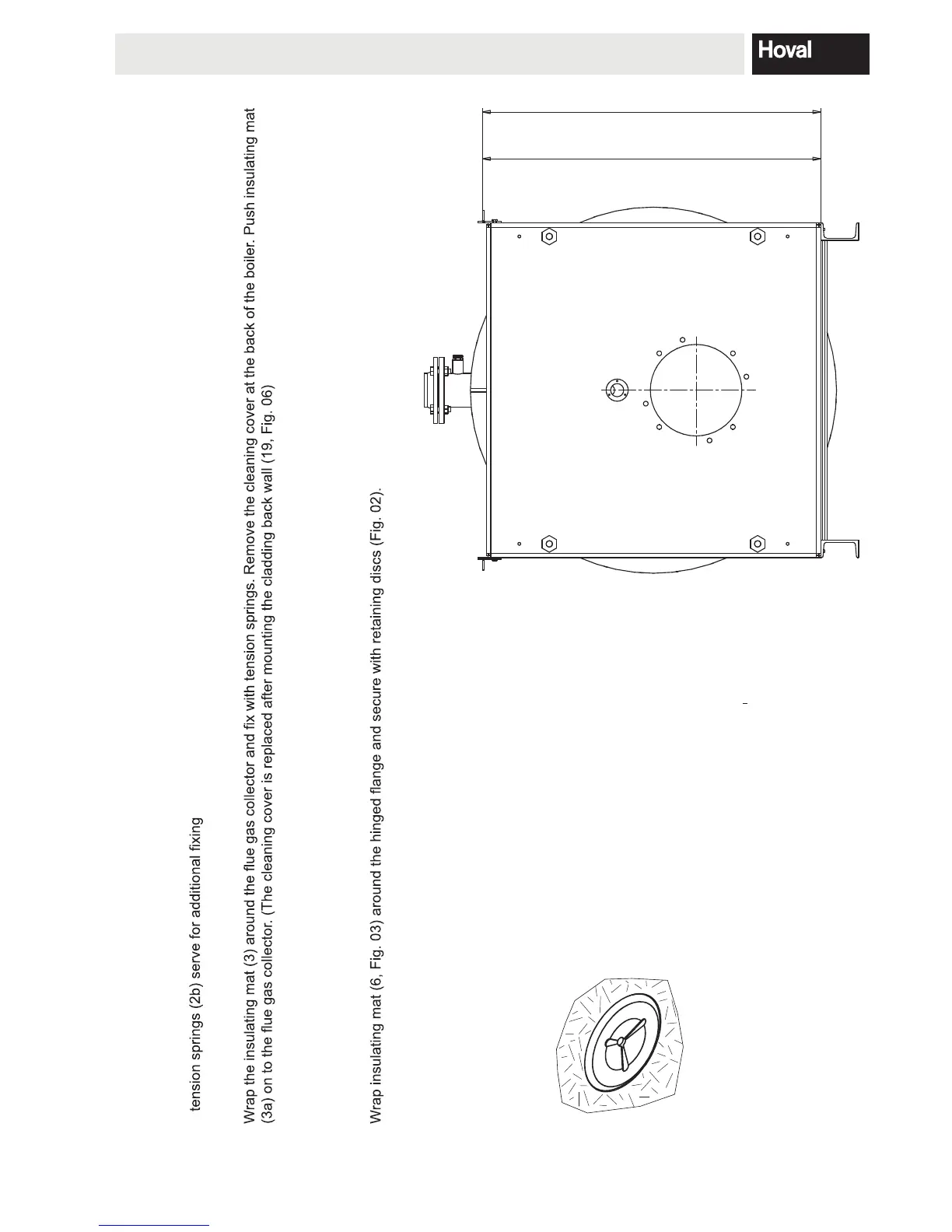

Fig. 02
Max-3 plus (420, 530) = 1072
Max-3 plus (620, 750) = 1191,5
+3
0
+3
0
