Hoval Max-3 plus Series User Manual

26 4 214 283 / 00
INSTALLATION

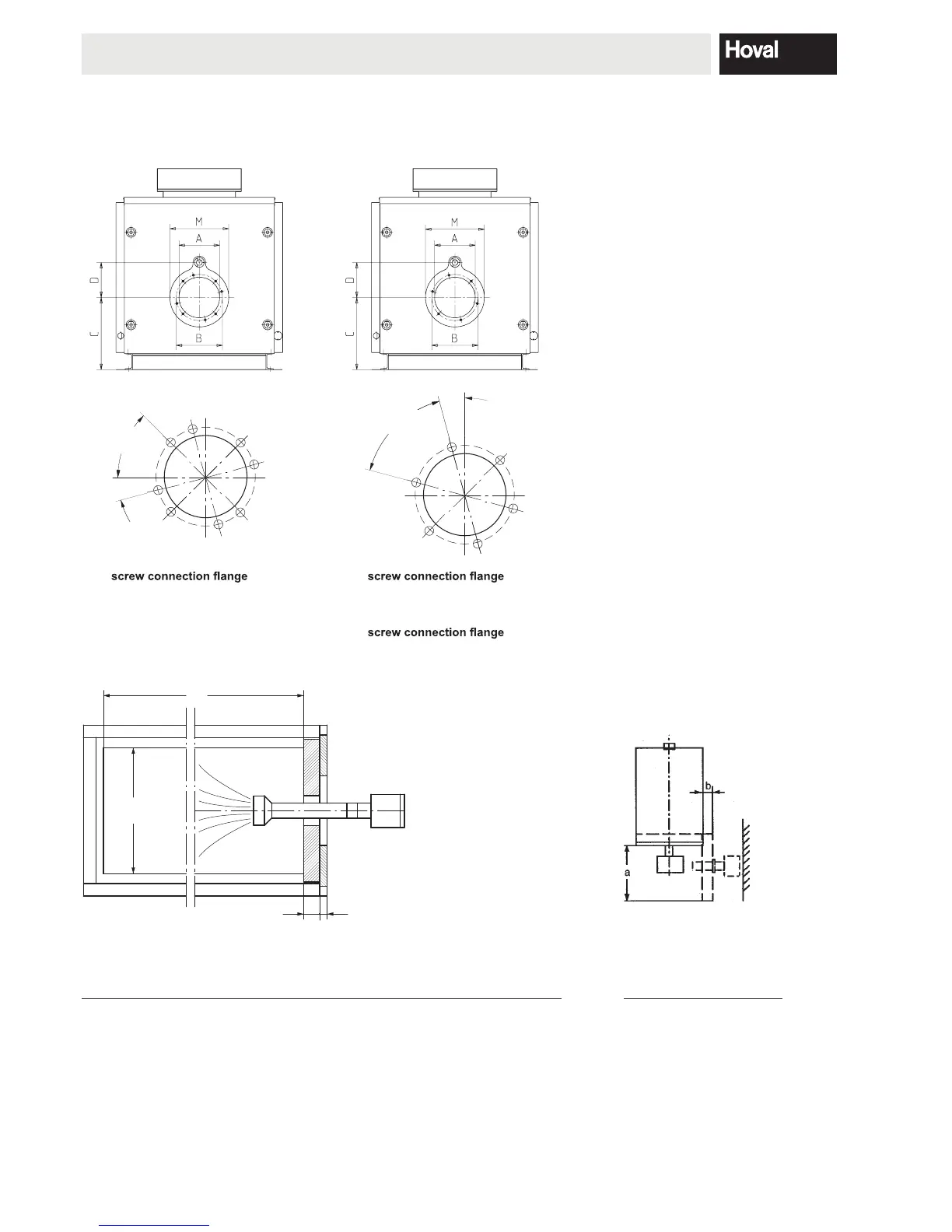

4.4 Installing the burner Max-3 plus
G
H
F
E
Opening of the boiler door
boiler door opens to the right or left
(Dimensions in mm)
Type (420-530) Type (620-2700)
15˚
45˚
Type (420–530)
4 x M12 (45°)
4 x M12 (15°)
15˚
60˚
Type (620–750)
6 x M12 (15°)
Type (1000–2700)
6 x M16 (15°)
Dimensions
Max-3 plus
Type A B C D E F G + H M
(420-530)
290 330 515 250 606 1624 163 30 420
(620-750)
350 400 550 310 684 1899 163 30 500
(1000-1250)
400 450 635 330 782 2182 163 30 550
(1500)
380 450 655 385 880 2415 191 30 550
(1800)
380 450 735 395 976 2595 191 30 550
(2200)
380 450 735 395 976 2905 191 30 550
(2700)
420 480 735 410 976 3233 191 30 600x560
(Dimensions in mm)
Dimensions
Max-3 plus
Type a b
(420)
1060 150
(530)
1060 150
(620)
1180 150
(750) 1180 150
(1000)
1370 150
(1250)
1370 150
(1500)
1393 58
(1800)
1553 58
(2200) 1553 58
(2700) 1585 58
