38
care and maintenance
hp fax 1010 series
clean the document scanner area
To keep your machine working properly, occasionally clean the white roller, document
feeder rubber piece, and the scanning glass. If they are dirty, documents sent to another fax
machine will not be clear.
Important! If you turn the power off to clean the scanner, documents stored in memory will
be lost.
1

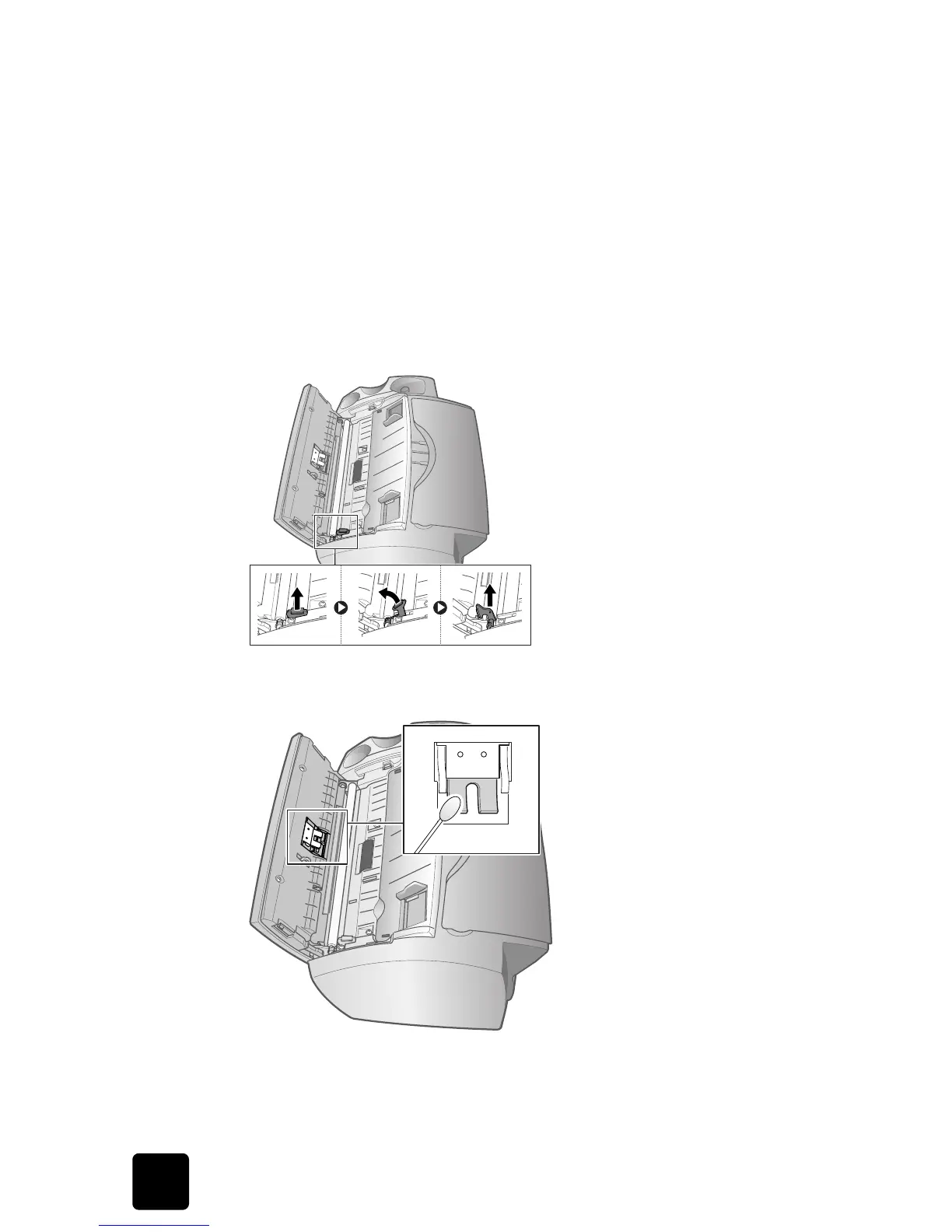

Open the front panel.
2
Remove the white roller.
a
At the right-hand end of the white roller there is a bushing that is secured with a
small tab.
b
Push the tab slightly inward, then rotate towards you. Then pull up the right-hand
end of the roller to remove it.
3
Wipe the roller surface with a soft cloth dampened with water.
4
Clean the document feeder rubber piece at the back of the front panel.
