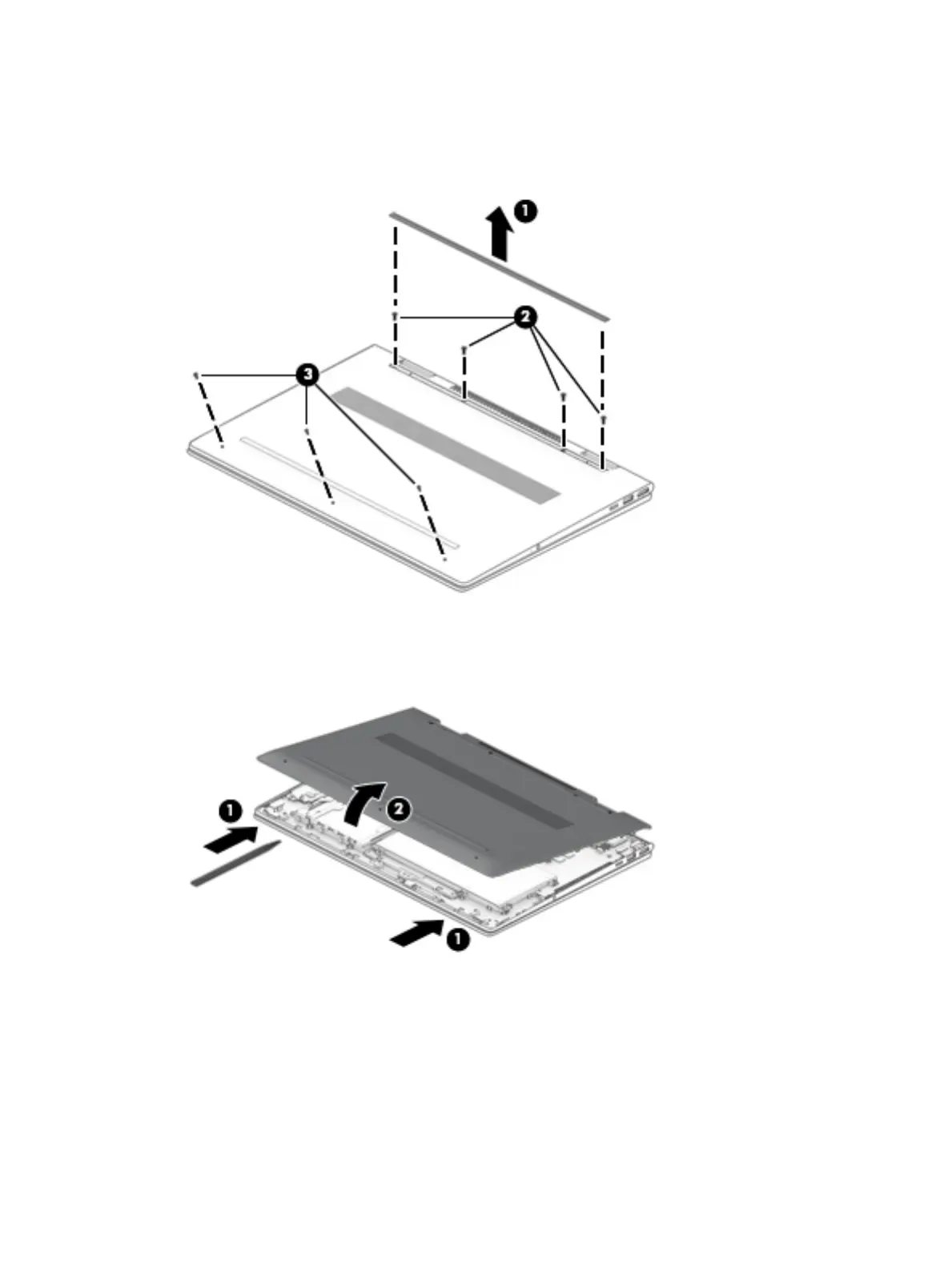

2. Remove the following screws that secure the bottom cover to the computer:
(2) Four Torx5 M2.5×6.7 screws under the rear rubber foot strip
(3) Three Phillips PM2.0×5.2 screws on the front edge
3. Insert a case utility tool (1) or similar thin, plastic tool between the front edge of the bottom cover and
the keyboard/top cover.
4. Remove the bottom cover (2).
Reverse this procedure to install the bottom cover.
30 Chapter 5 Removal and replacement procedures
