ClickPad cable
NOTE: The ClickPad spare part kit does not include the ClickPad cable. The ClickPad cable is available using
spare part number 924351-001.
Before removing the ClickPad cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Remove the battery (see Battery on page 31).

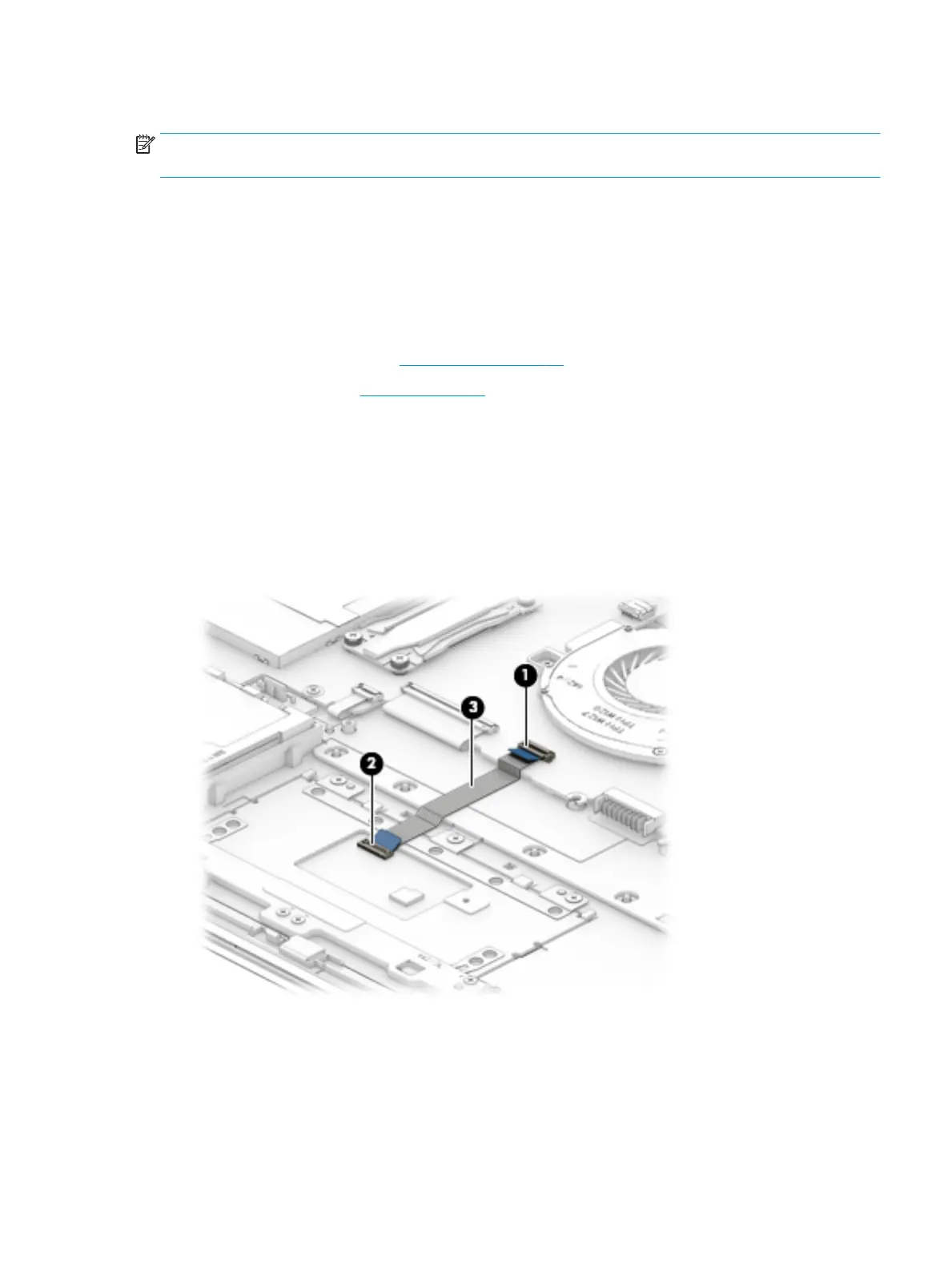

Remove the ClickPad cable:
1. Release the ZIF connector (1) to which ClickPad cable is connected, and then disconnect
the ClickPad cable from the system board.
2. Release the ZIF connector (2) to which ClickPad cable is connected, and then disconnect
the ClickPad cable from the ClickPad.
3. Detach the ClickPad cable (3) from the keyboard/top cover. (The ClickPad cable is attached to
the keyboard/top cover with double-sided adhesive.)
4. Remove the ClickPad cable.
Reverse this procedure to install the ClickPad cable.
Component replacement procedures 39
