Memory card reader board
NOTE: The memory card reader board includes the memory card reader slot. The memory card reader board
spare part kit does not include the memory card reader board cable. The memory card reader board cable is
available using spare part number 924325-001.
Description Spare part number
For use only on computer models with model numbers 15m-bq1xx and 15-bq1xx L01917-001
For use only on computer models with model numbers 15m-bq0xx and 15-bq0xx 924336-001
Before removing the memory card reader board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Remove the battery (see Battery on page 31).
6. Remove the system board (see System board on page 42).
Remove the memory card reader board:

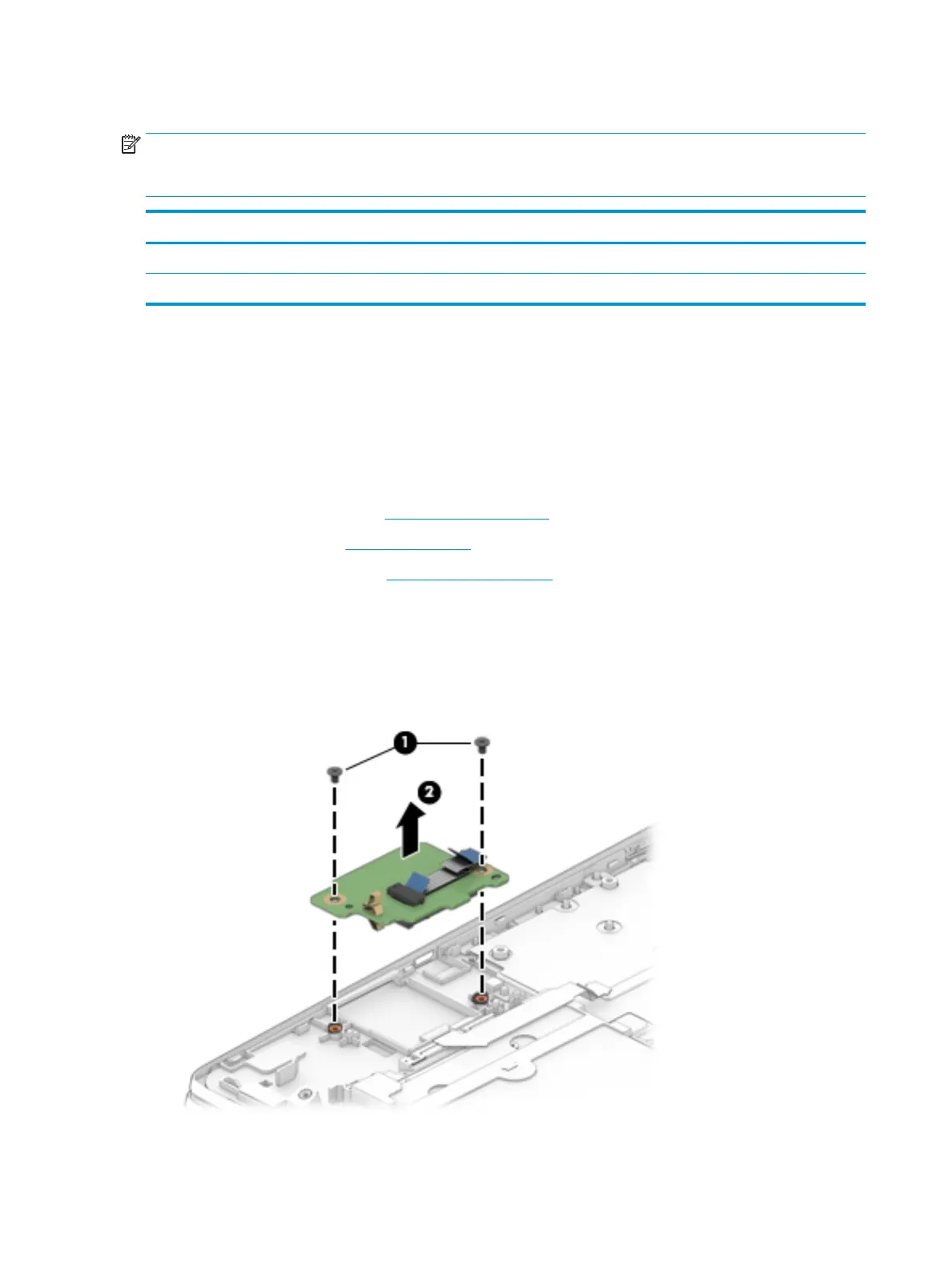

1. Remove the two Phillips PM2.0×3.3 screws (1) that secure the memory card reader board to
the keyboard/top cover.
2. Remove the memory card reader board (2).
Reverse this procedure to install the memory card reader board.
48 Chapter 5 Removal and replacement procedures
