Memory card reader board cable
NOTE: The memory card reader board spare part kit does not include the memory card reader board cable.
The memory card reader board cable is available using spare part number 924325-001.
Before removing the memory card reader board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Remove the battery (see Battery on page 31).
Remove the memory card reader board cable:

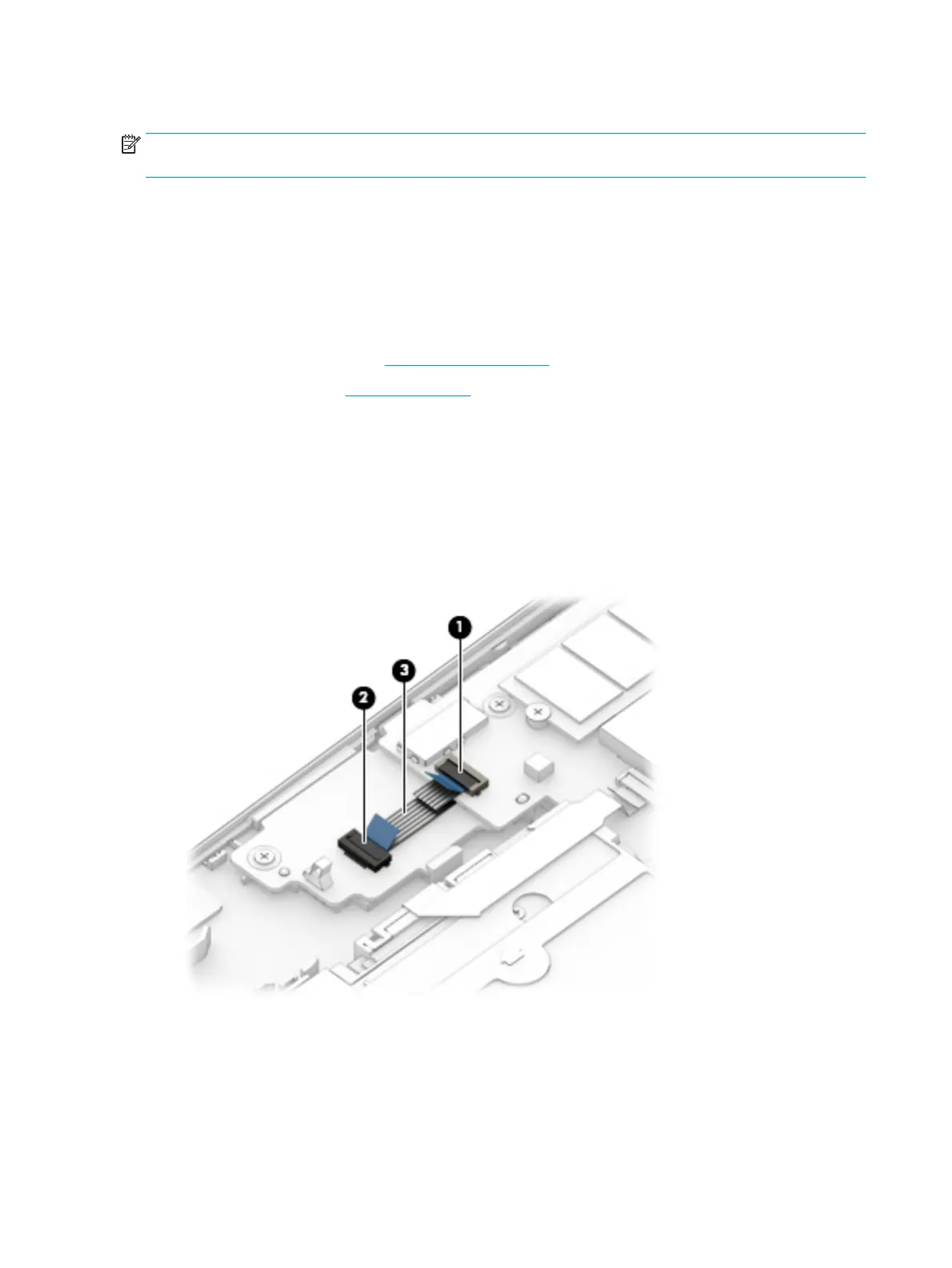

1. Release the ZIF connector (1) to which memory card reader board cable is connected, and then
disconnect the memory card reader board cable from the system board.
2. Release the ZIF connector (2) to which memory card reader board cable is connected, and then
disconnect the memory card reader board cable from the memory card reader board.
3. Detach the memory card reader board cable (3) from the keyboard/top cover. (The memory card reader
board cable is attached to the keyboard/top cover with double-sided adhesive.)
4. Remove the memory card reader board cable.
Reverse this procedure to install the memory card reader board cable.
