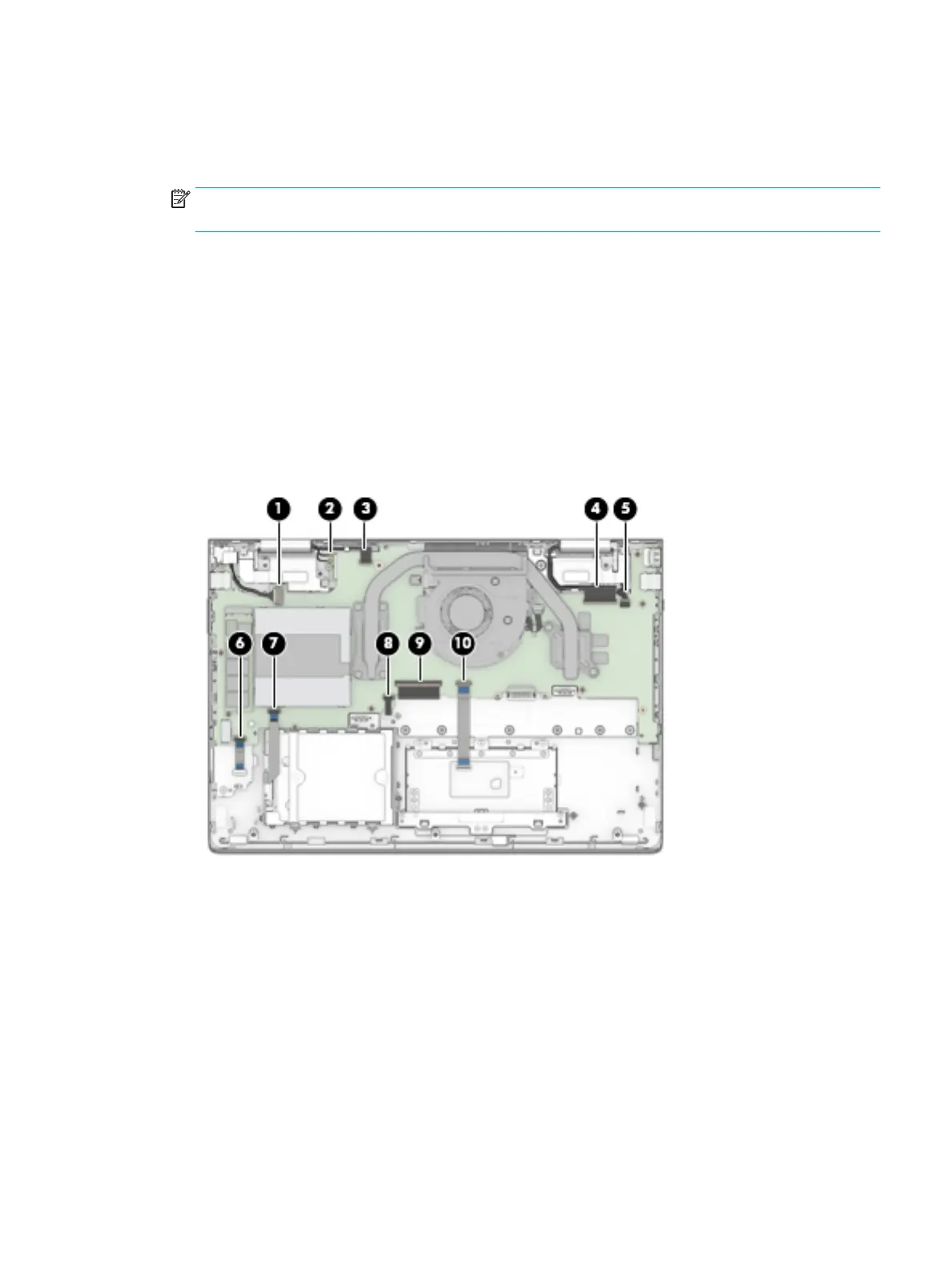

1. Disconnect the following cables from the system board:
(1) Power connector cable
(2) WLAN antenna cables
NOTE: The #1/white WLAN antenna cable connects to the WLAN module "#1/Main" terminal. The #2/
black WLAN antenna cable connects to the WLAN module "#2/Aux" terminal.
(3) Webcam/microphone module ZIF connector cable
(4) Display panel ZIF connector cable
(5) Speaker cable
(6) memory card reader board ZIF connector cable
(7) Hard drive ZIF connector cable
(8) Backlight ZIF connector cable
(9) Keyboard ZIF connector cable
(10) ClickPad ZIF connector cable
Component replacement procedures 43
