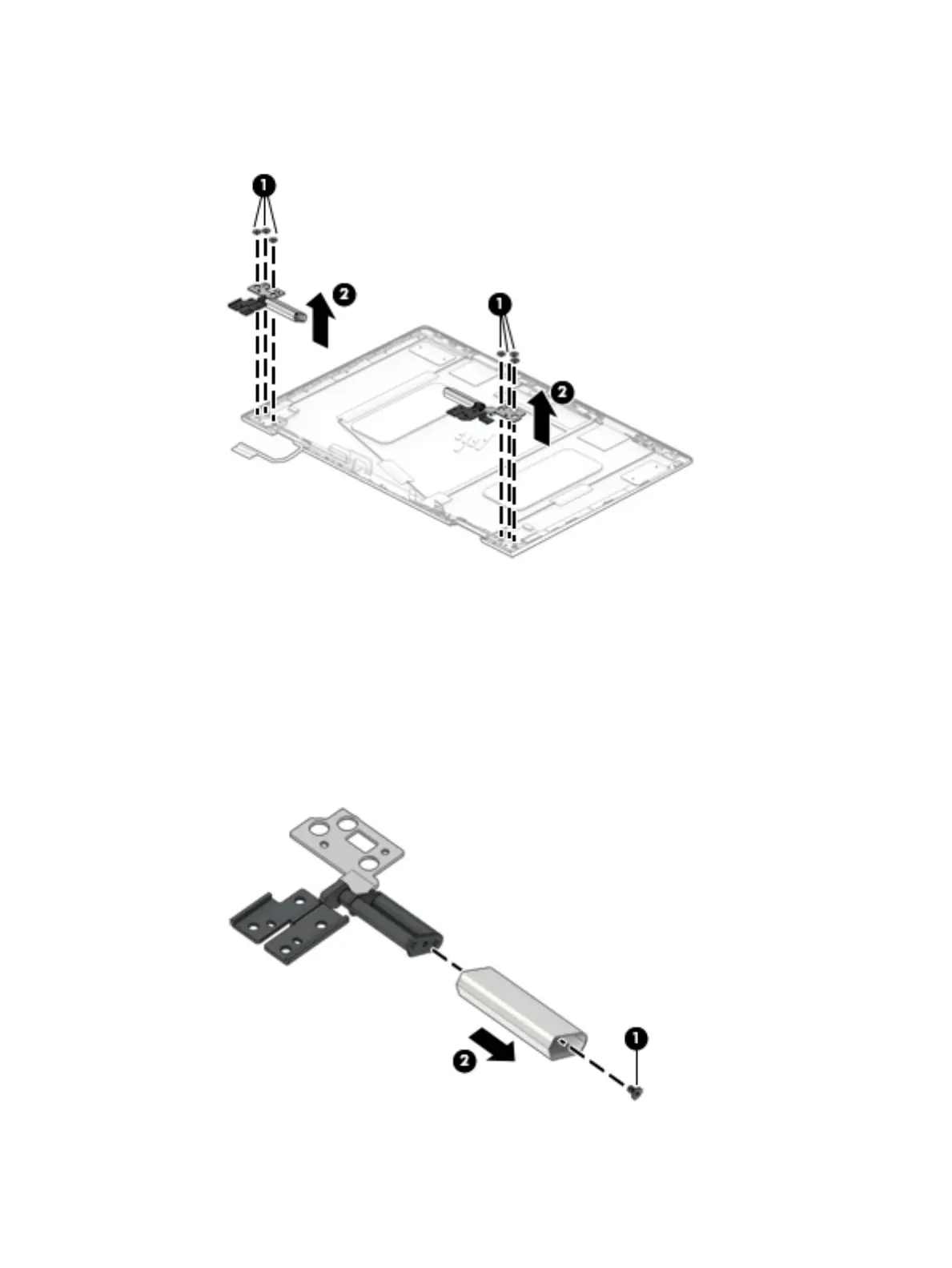

c. Remove the display hinges (2).
The display hinges are available using spare part number 925202-001.
11. If it is necessary to replace the display hinge covers:
a. Remove the display panel assembly.
b. Remove the display hinges.
c. Remove the two Phillips PM2.0×3.3 screws (1) that secure the hinge covers to the display hinge.
d. Remove the display hinge covers (2).
The display hinge covers are available using spare part numbers 924331-001 (left hinge cover) and
924332-001 (right hinge cover).
