HP 17 Series

To Next Page

To Previous Page

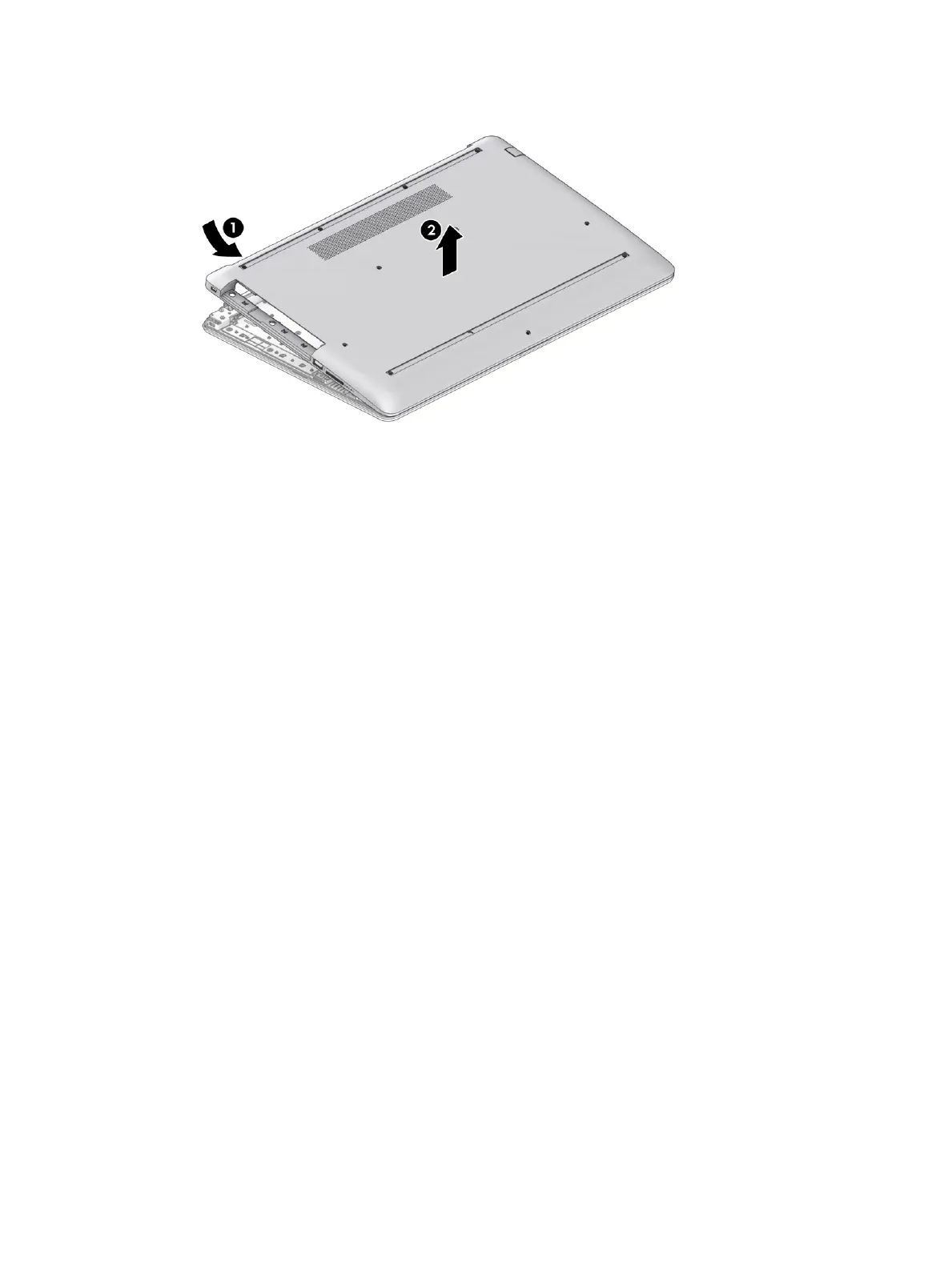

3. Starting near the optical drive bay (1), pry the bottom cover up to remove it (2).

Reverse this procedure to install the bottom cover.

Component replacement procedures 39

Main Page

Table of Contents7
Product Description11
Getting to Know Your Computer16
Right Side16
Left Side17
Display18
Keyboard Area19
Touchpad19
Lights20
Button and Speakers21
Special Keys22
Action Keys23
Bottom24
Labels25
Illustrated Parts Catalog26
Computer Major Components26
Cables30
Display Assembly Subcomponents31
Mass Storage Devices34
Miscellaneous Parts35
Removal and Replacement Procedures Preliminary Requirements37
Tools Required37
Service Considerations37
Plastic Parts37
Cables and Connectors37
Drive Handling38
Workstation Guidelines38
Electrostatic Discharge Information38
Generating Static Electricity39
Preventing Electrostatic Damage to Equipment39
Personal Grounding Methods and Equipment40
Grounding the Work Area40
Recommended Materials and Equipment40
Packaging and Transporting Guidelines41
Removal and Replacement Procedures for Customer Self-Repair Parts42
Component Replacement Procedures42
Preparation for Disassembly42
Optical Drive43
Removal and Replacement Procedures for Authorized Service Provider Parts46
Component Replacement Procedures46
Bottom Cover47
Battery50
Memory Module52
Hard Drive54
Solid-State Drive56
Solid-State Drive Bracket and Connector Board57
WLAN Module58
System Board Hook59
USB Board60
Optical Drive Board61
Touchpad Button Board62
Touchpad Module63
Power Connector Cable (DC-In)65
Fan66
Heat Sink Assembly67
System Board71
Speakers75
Display Assembly76
Top Cover with Keyboard85
Using Setup Utility (BIOS)86
Starting Setup Utility (BIOS)86
Updating Setup Utility (BIOS)86
Determining the BIOS Version86
Downloading a BIOS Update87
Using HP PC Hardware Diagnostics88
Using HP PC Hardware Diagnostics Windows (Select Products Only)88
Downloading HP PC Hardware Diagnostics Windows88
Downloading the Latest HP PC Hardware Diagnostics Windows Version89
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)89
Installing HP PC Hardware Diagnostics Windows89
Using HP PC Hardware Diagnostics UEFI89
Starting HP PC Hardware Diagnostics UEFI90
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive90
Downloading the Latest HP PC Hardware Diagnostics UEFI Version90
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)90
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)91
Downloading Remote HP PC Hardware Diagnostics UEFI91
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version91
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number91
Customizing Remote HP PC Hardware Diagnostics UEFI Settings91
Backing Up, Restoring, and Recovering93
Backing up Information and Creating Recovery Media93
Using Windows Tools93
Using the HP Cloud Recovery Download Tool to Create Recovery Media (Select Products Only)93
Restoring and Recovery94
Restoring, Resetting, and Refreshing Using Windows Tools94
Recovering Using HP Recovery Media94
Changing the Computer Boot Order94
10 Specifications95
Computer Specifications95
43.9 CM (17.3 In) Display Specifications96
M.2 SATA Solid-State Drive Specifications96
M.2 Pcie Solid-State Drive Specifications97
Hard Drive Specifications98
11 Power Cord Set Requirements99
Requirements for All Countries99
Requirements for Specific Countries and Regions99
12 Recycling101
Index102
