HP 17 Series User Manual

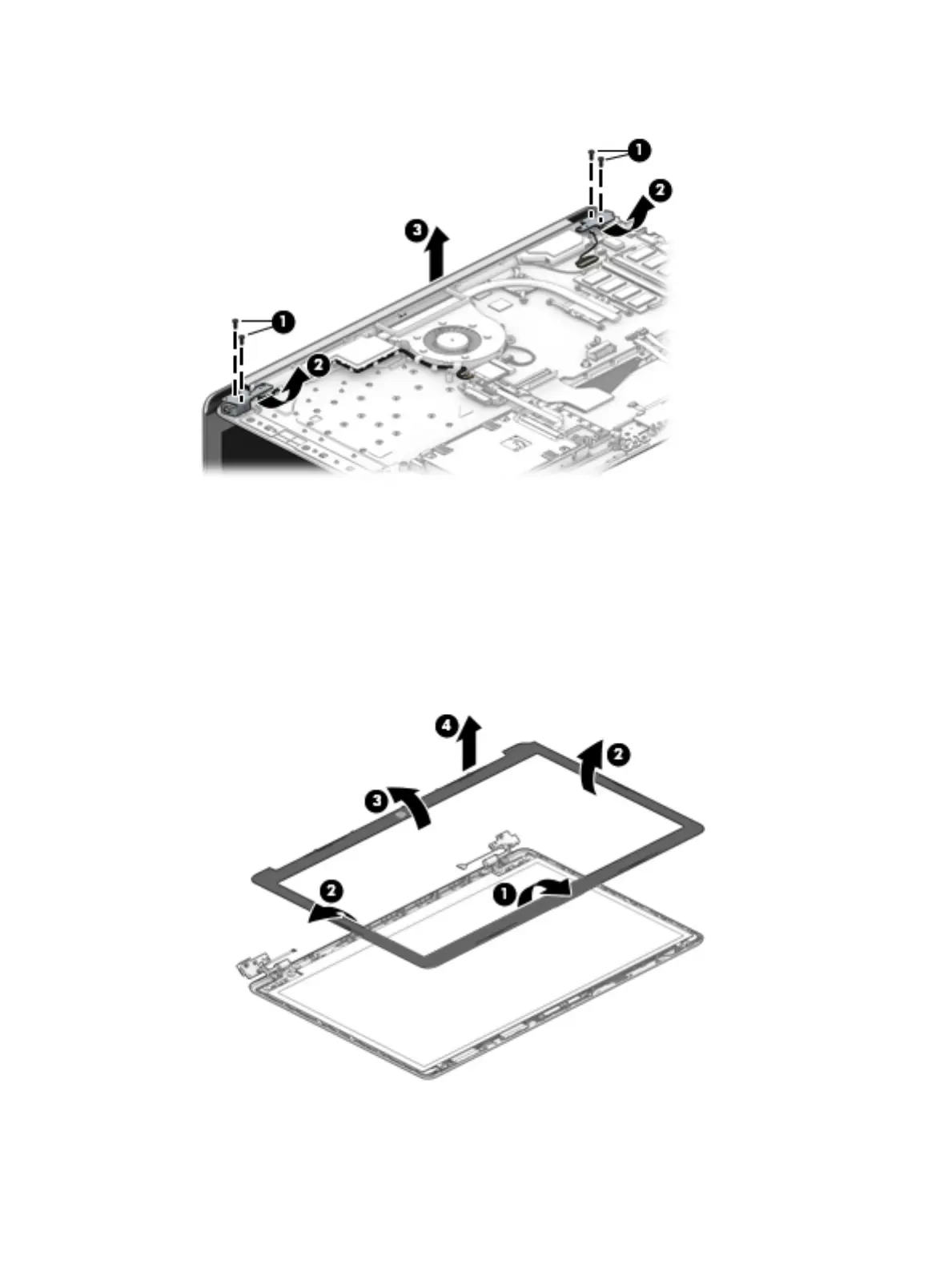

6. Separate the display from the computer (3).
Remove the display assembly subcomponents:
1. If it is necessary to replace the display bezel:
a. If you need to remove the display bezel, ex the top (1) of the bezel, the inside edges of the left
and right sides (2), and then the bottom (3) of the bezel until it disengages from the display
enclosure.
b. Remove the bezel (4).
The display bezel is available using spare part number L22517-001 for non-touch models and
L22518-001 for touch models.
2. If it is necessary to replace the camera/microphone module:
Component replacement procedures 67

HP 17 Series Specifications

General

Display Size	17.3 inches
Operating System	Windows 10 or Windows 11
Battery Life	Varies by model and usage
Battery	3-cell or 4-cell Li-ion
Ports	USB Type-A, USB Type-C, HDMI, SD card reader, headphone/microphone combo (varies by model)
Wireless	Wi-Fi 802.11ac or 802.11ax, Bluetooth
