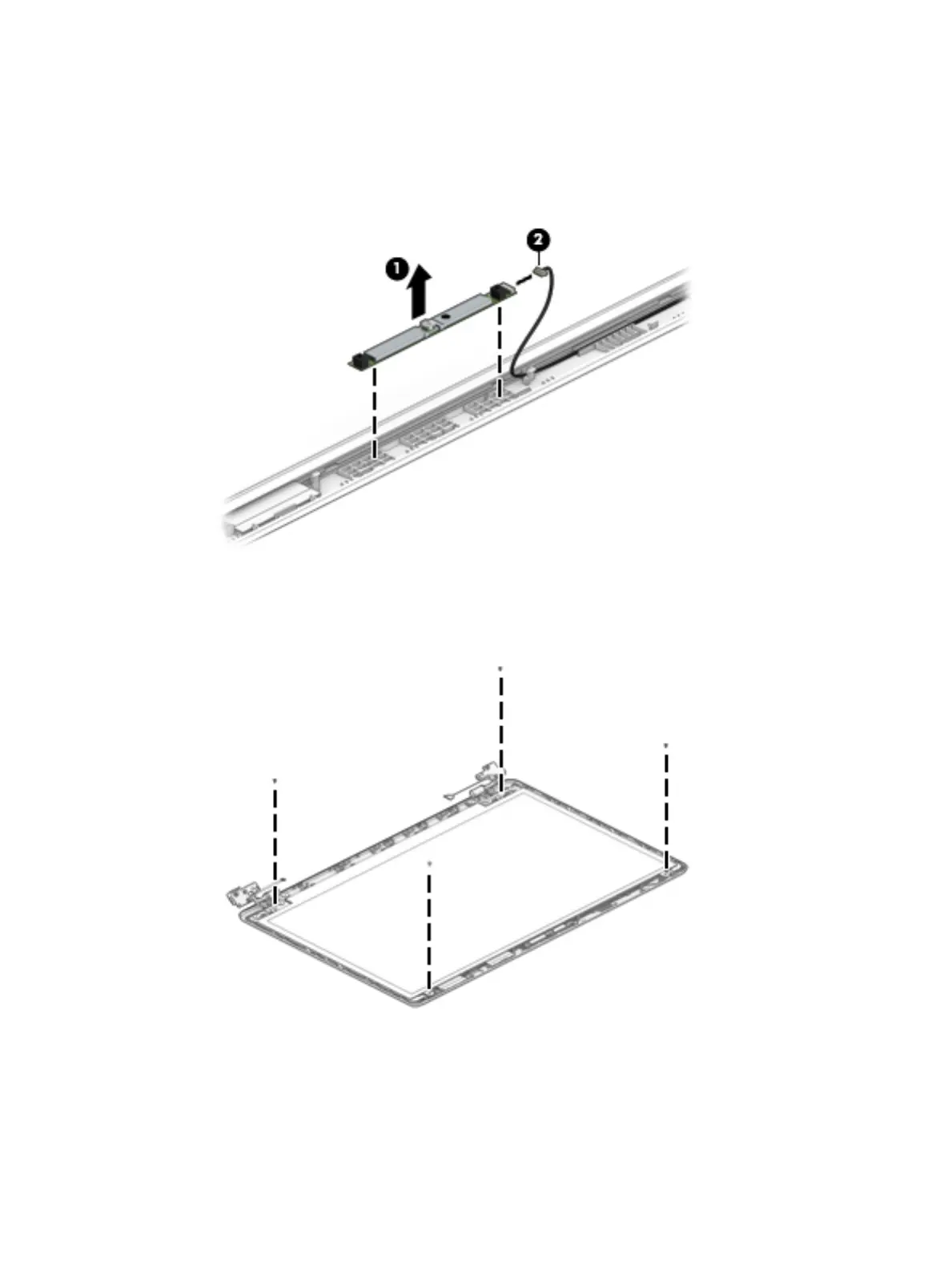

a. Detach the camera module (1) from the display back cover. (The module is attached with double-
sided adhesive.)
b. Disconnect the cable (2) from the camera/microphone module.
The HD camera module is available using spare part number L22587-001. The VGA camera module
is available using spare part number L22588-001.
3. If it is necessary to replace the display panel:
a. Non-touch panel:
Remove the four Phillips M2.0 × 3.0 screws that secure the panel to the display enclosure.
Touch panel:
b. Disconnect the cable from the touch board (1).
68 Chapter 6 Removal and replacement procedures for authorized service provider parts
