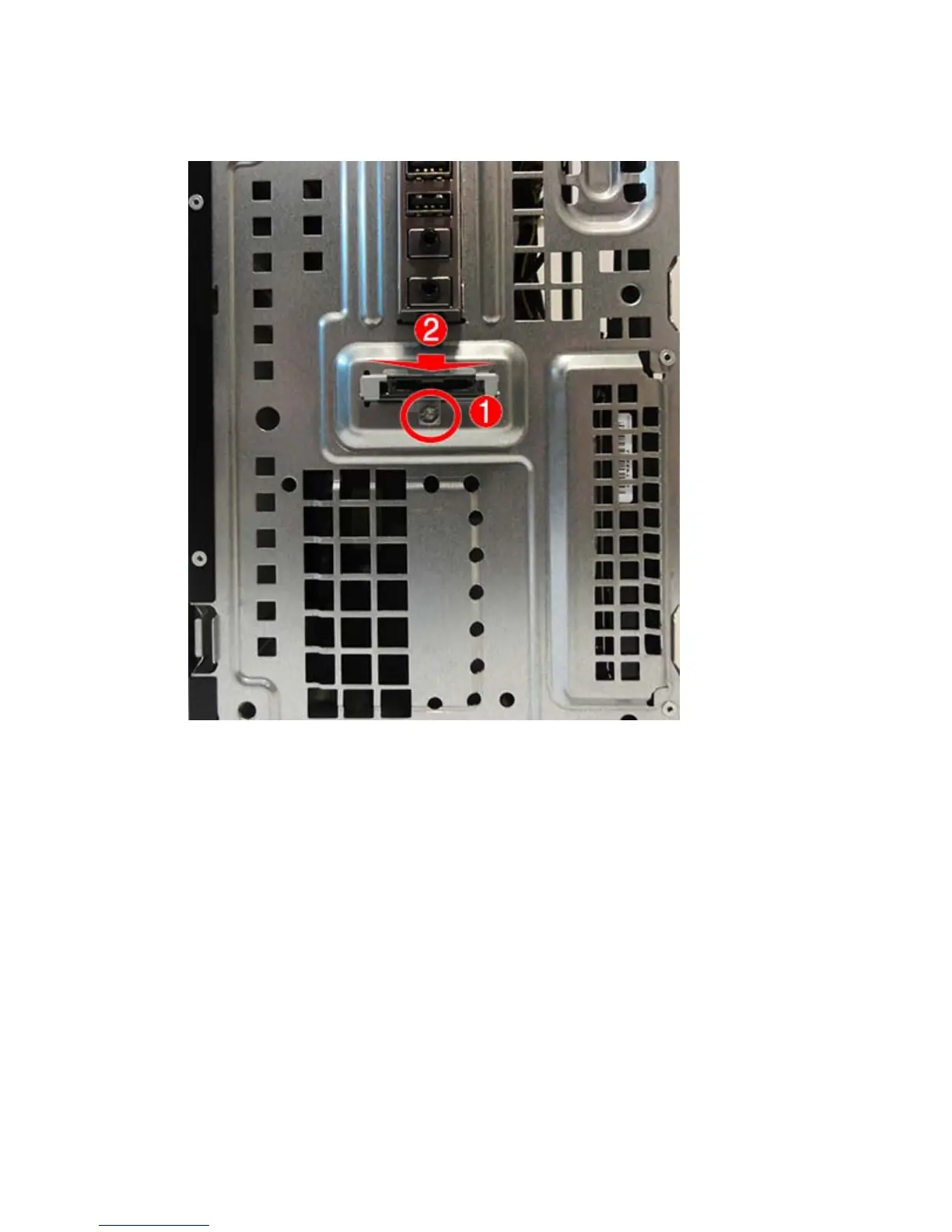

5. From the outside, front of the computer, remove the Torx screw (1) that secures the card reader
assembly to the chassis, and then pull the assembly away from the computer while threading the cable
through the slot in the computer.
6. Remove the card reader from the inside of the computer.
To reinstall the card reader, reverse the removal procedure.
38 Chapter 5 Removal and replacement procedures
