Access panel
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (Preparation for disassembly on page 17)

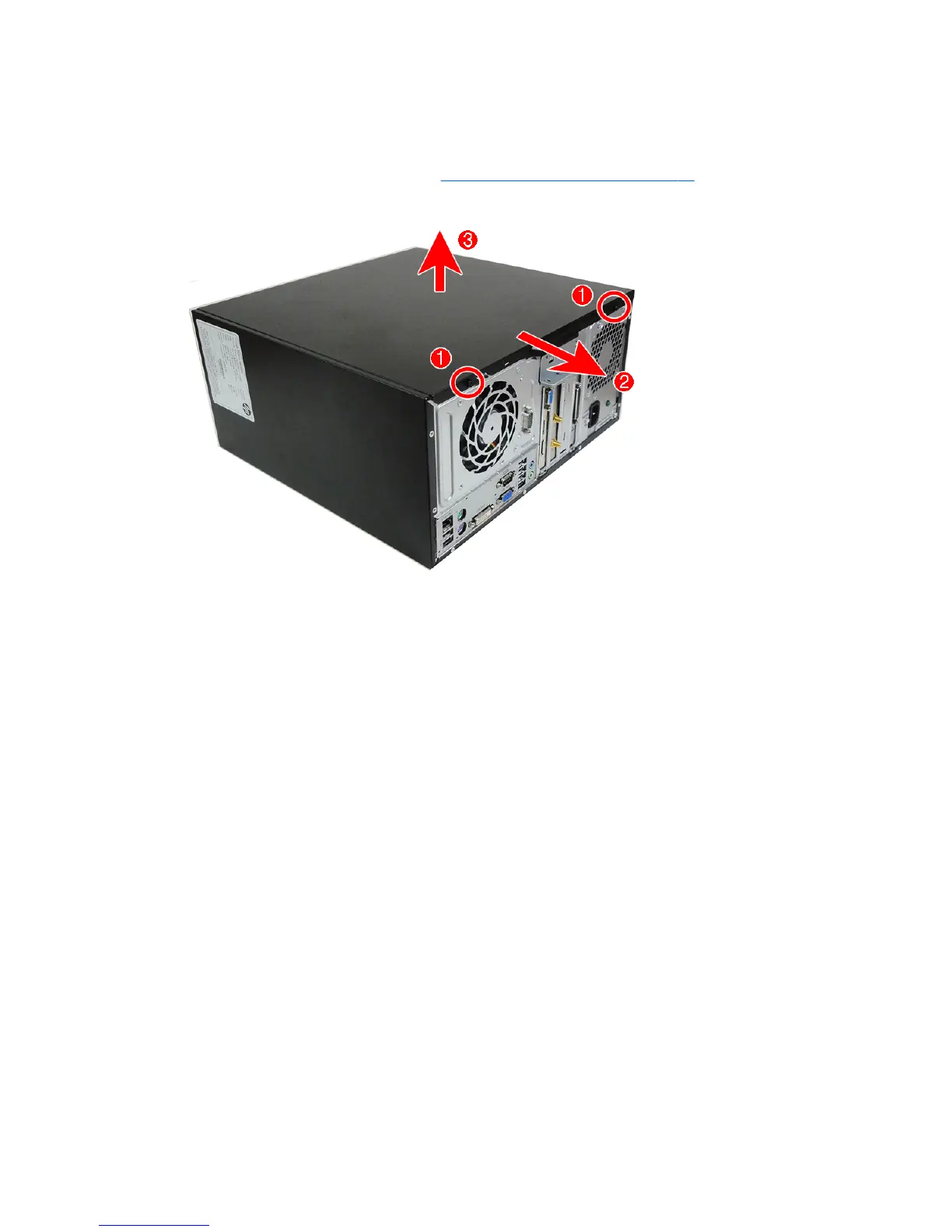

2. Remove the two Torx screws (1), and then slide the panel back (2) and lift it o the computer (3).
To replace the access panel, reverse the disassembly procedures.
18 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
