Front I/O and power switch assembly
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the computer access panel (Access panel on page 18).

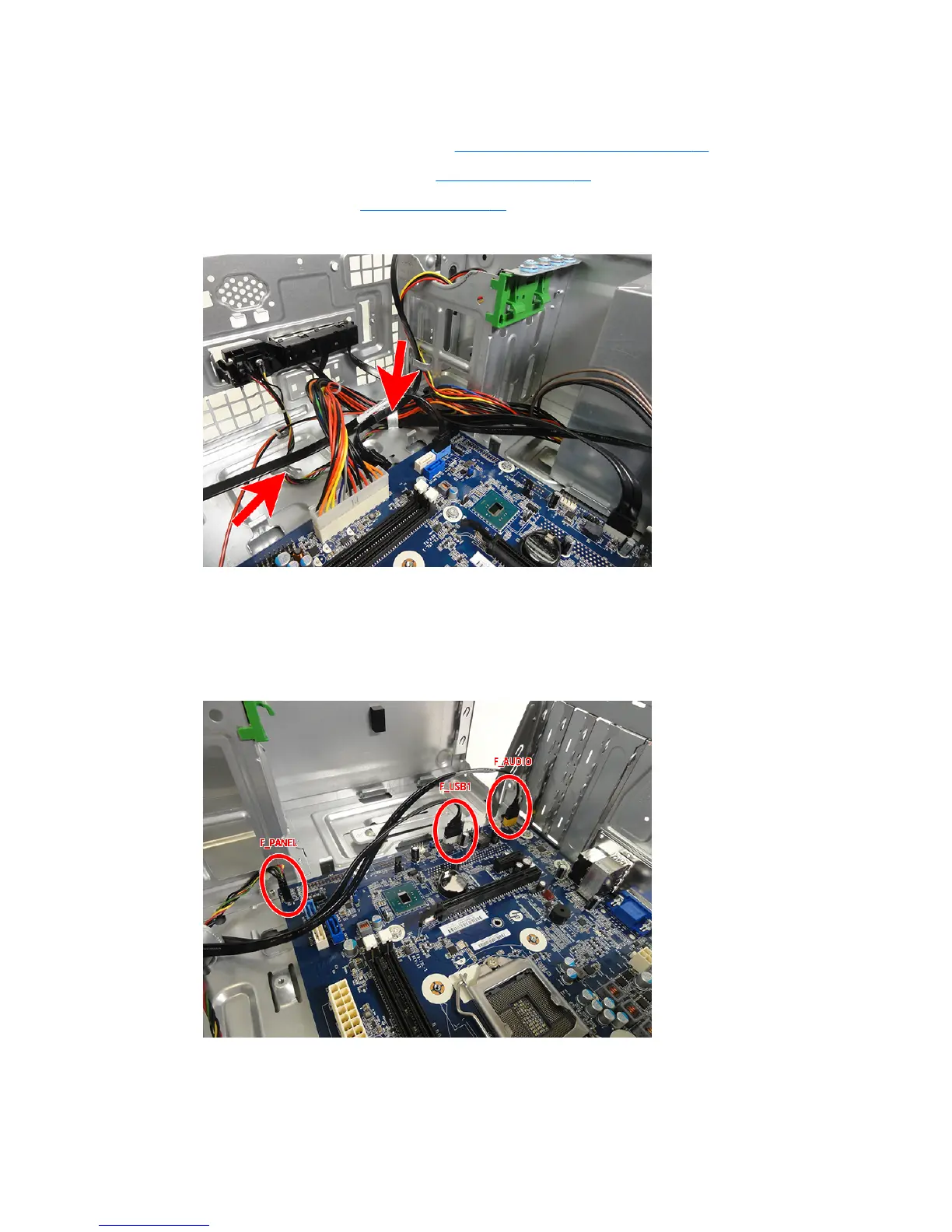

3. Remove the front bezel (Front bezel on page 19).
4. Remove the cables from the clips on the base pan.
5. Disconnect the three cables from the following system board connectors:
F_PANEL (black)
F_USB1 (white)
F_AUDIO (yellow)
