Speaker
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the access panel (Access panel on page 18).
3. Remove the front bezel (Front bezel on page 19).

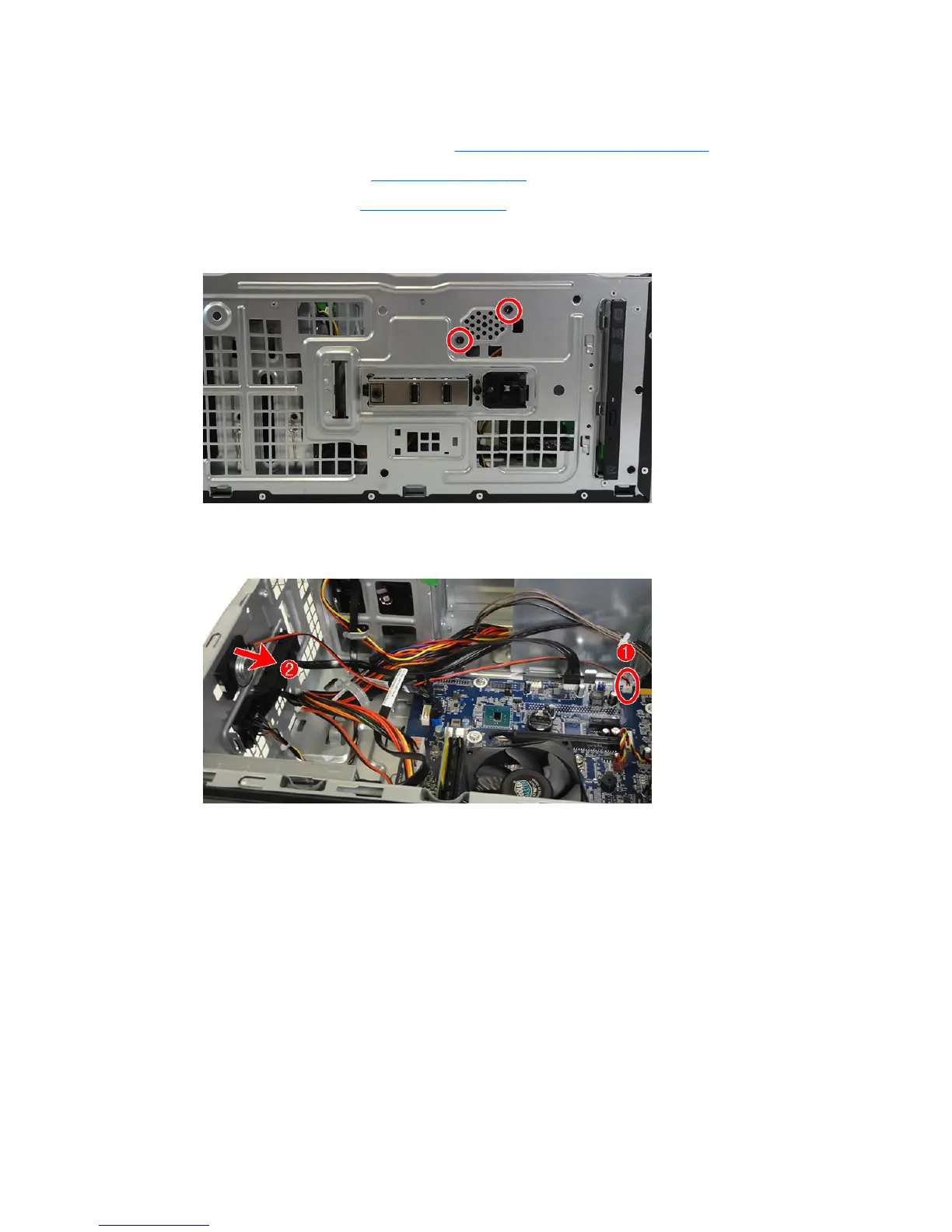

4. From the outside, front of the chassis, remove the two Torx screws that secure the speaker to the
chassis.
5. Disconnect the speaker wire from the system board connector labeled SPKR (1).
6. Remove the speaker from the chassis (2).
To replace the speaker, reverse the removal procedures.
Speaker 39
