Installing a hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the access panel (Access panel on page 18).
3. You can install a 3.5-inch hard drive or a 2.5-inch hard drive with a 3.5-inch adapter bracket similar to
the example shown below.
●

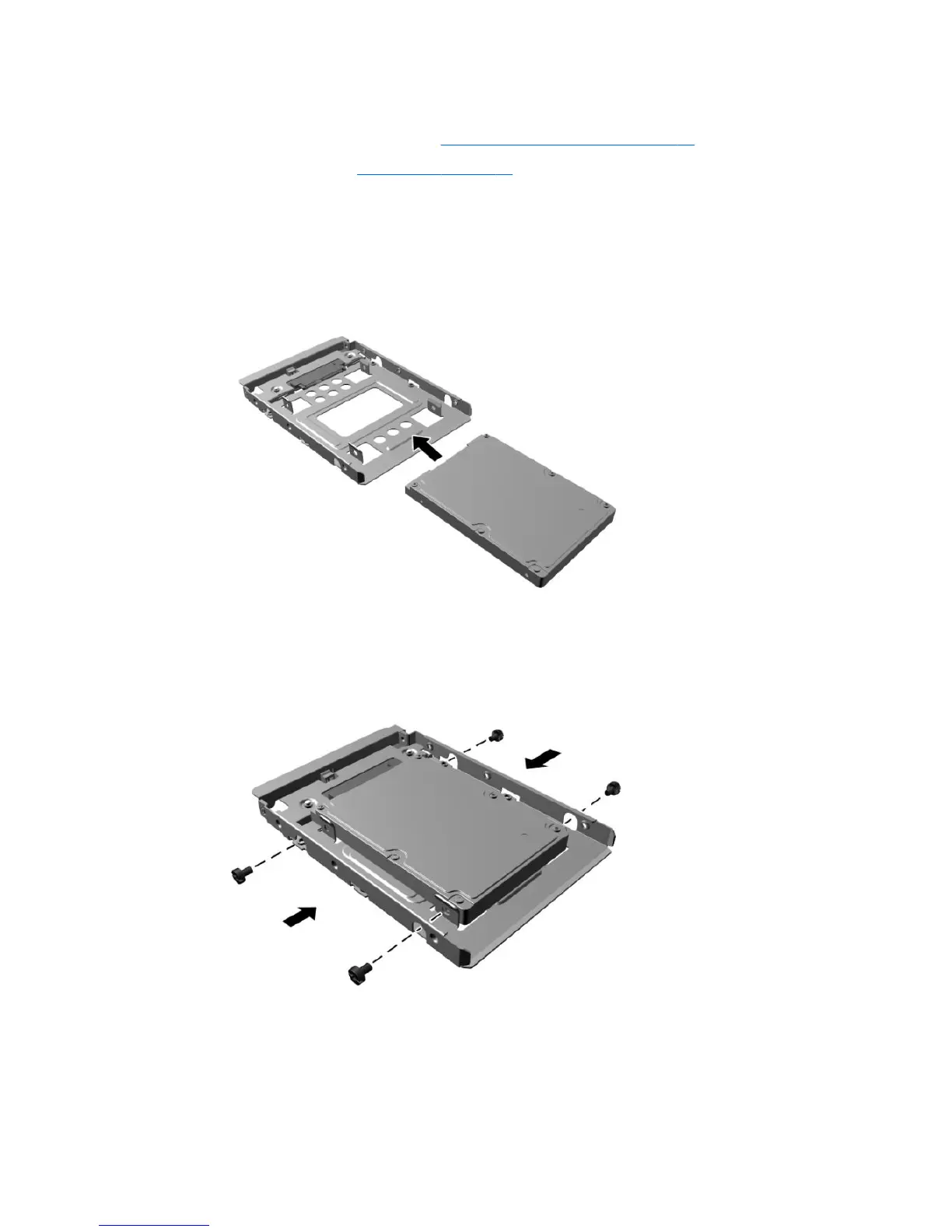

Slide the 2.5-inch drive into the bay adapter bracket, ensuring the connector on the drive is fully
inserted into the connector on the adapter bracket.
●
Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket screws
through the sides of the bracket into the drive.
