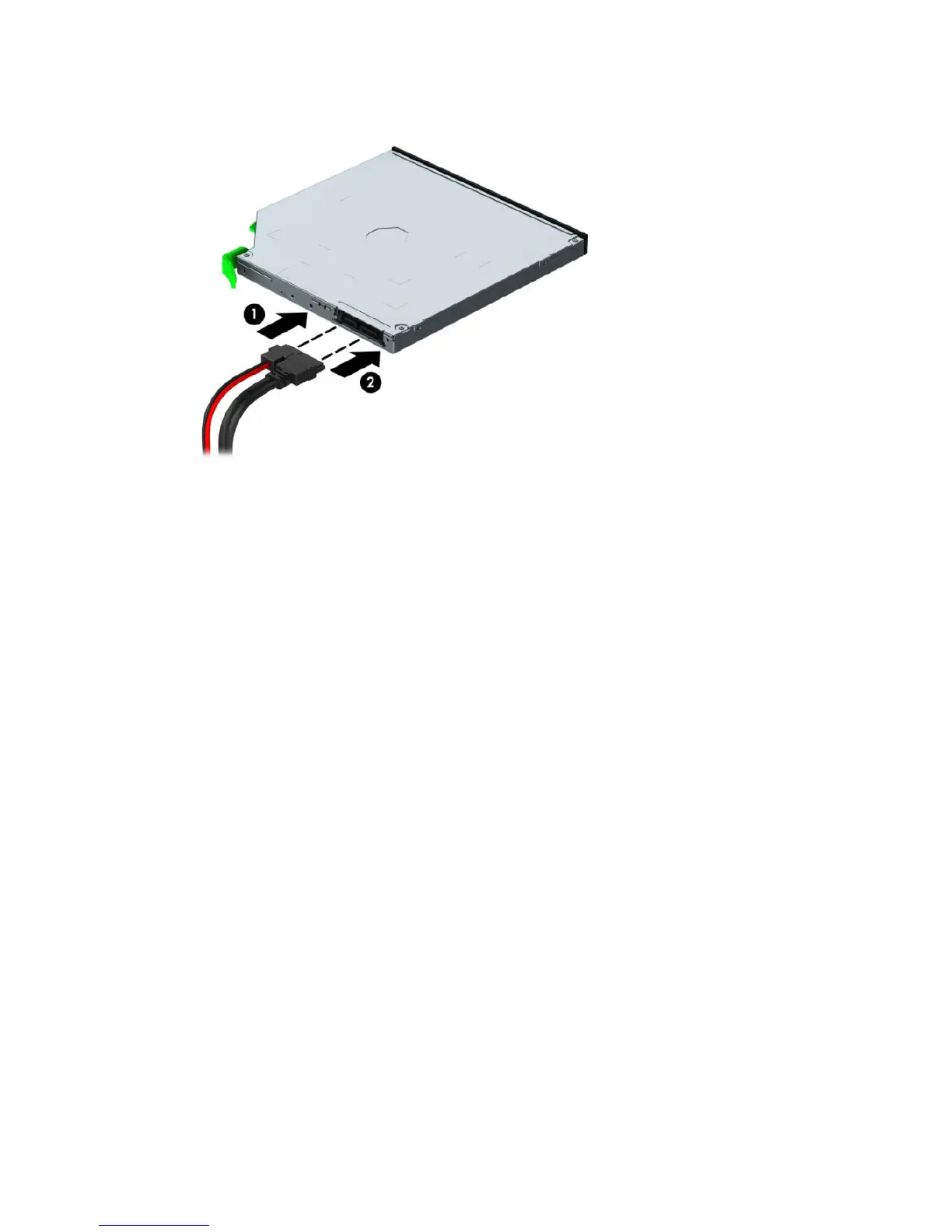

7. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
8. If installing a new drive, connect the opposite end of the data cable to one of the SATA connectors
(labeled SATA1 or SATA2) on the system board.
9. Replace the front bezel if it was removed.
10. Replace the computer access panel.
11. Reconnect the power cord and any external devices, and then turn on the computer.
12. Lock any security devices that were disengaged when the access panel was removed.
32 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
