HP 280 G2

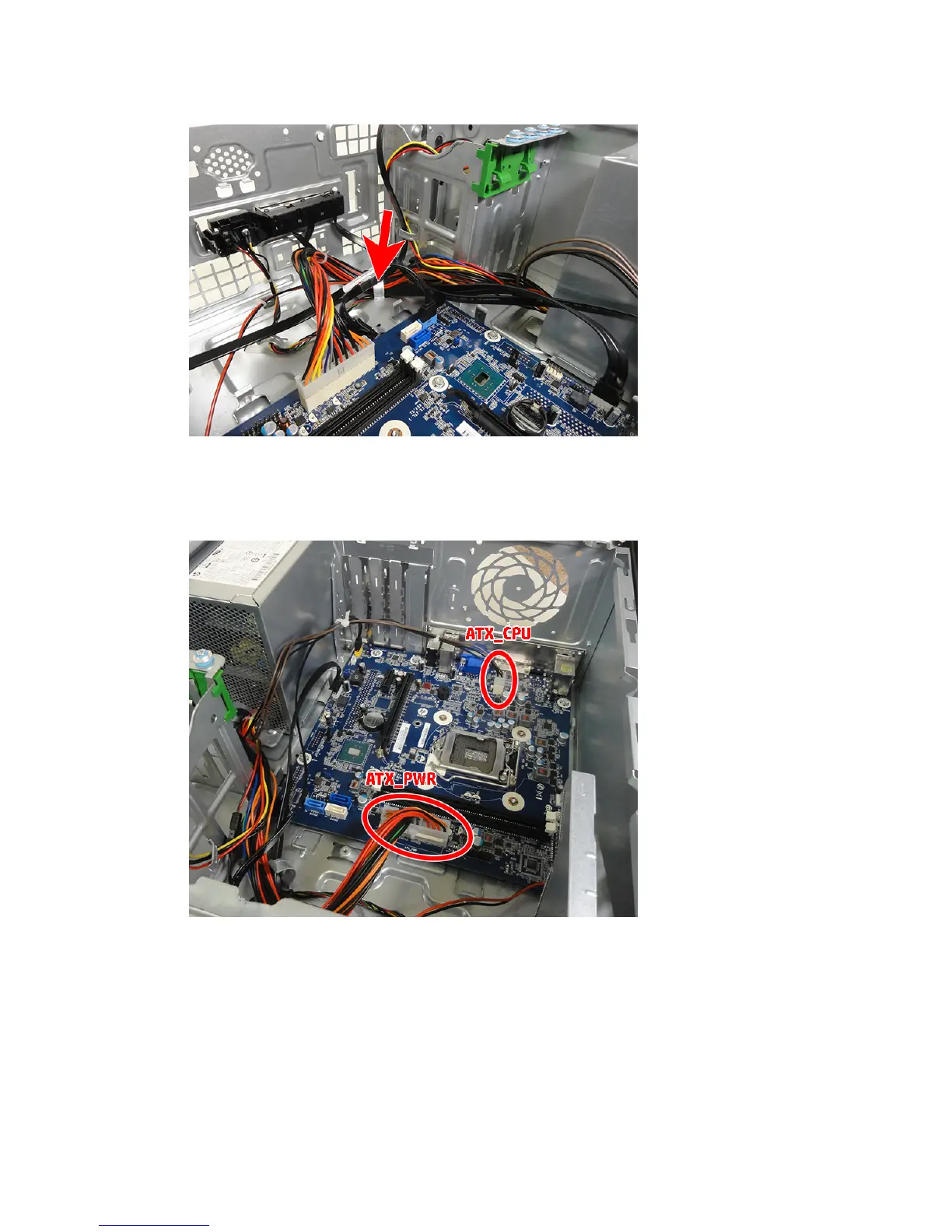

4. Remove the power cable from the clip on the base pan.
5. Disconnect the power supply cables from the following system board connectors:
ATX_CPU
ATX_PWR
6. Press the tab (1) on the base pan in front of the power supply that holds it in place.
42 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
