Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the access panel (Access panel on page 17).

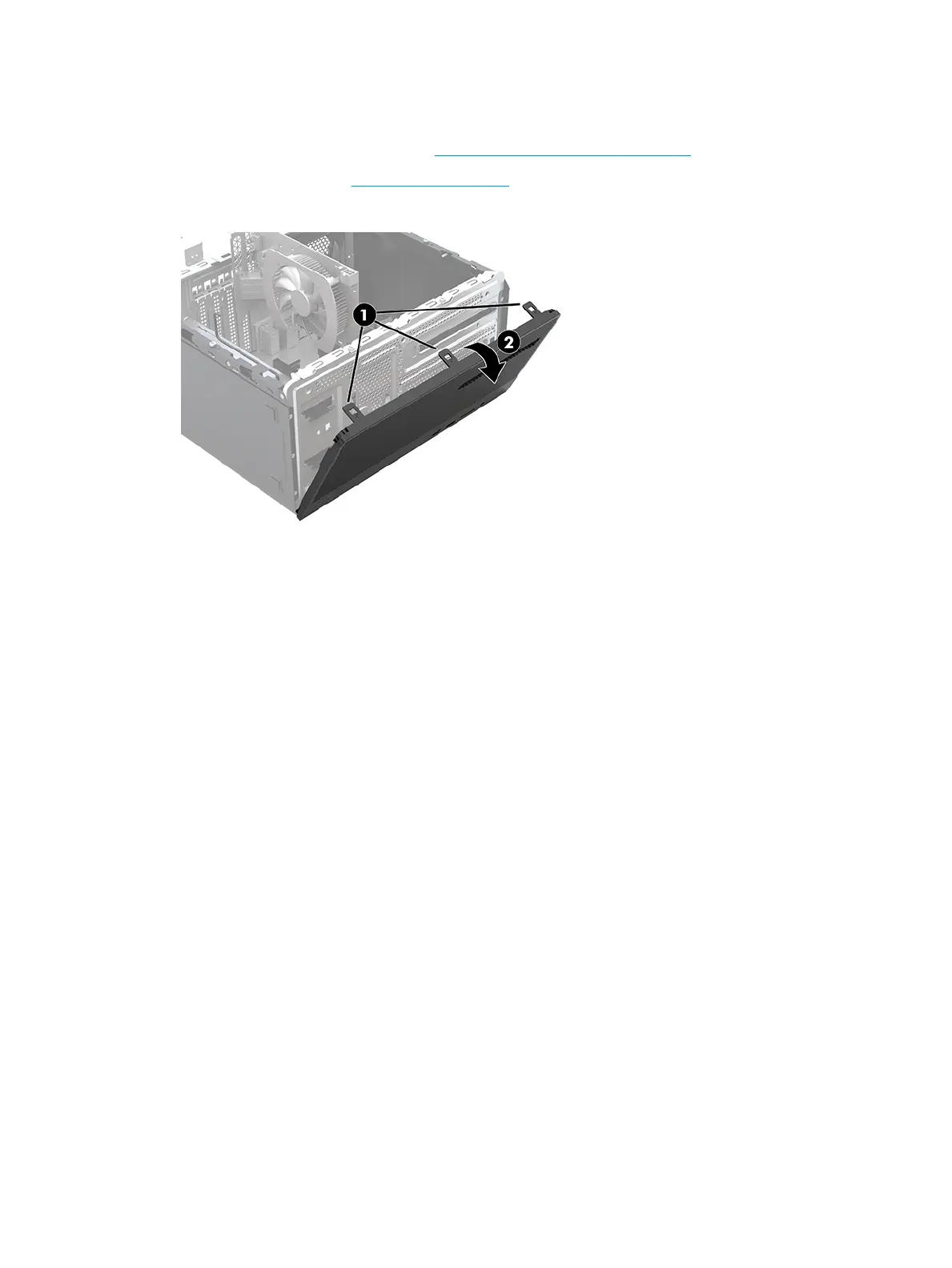

3. Lift up the three tabs on the side of the bezel (1), and then rotate the bezel o the chassis (2).
To replace the front bezel, reverse the disassembly procedures.
18 Chapter 4 Removal and replacement procedures
