Section II
Model 3465B
are available to provide ac power to the Multimeter. The
-hp- part number shown directly below each plug cap draw
ing is the part number for the power cord set equipped with
the appropriate mating plug for that receptacle. The appro
priate power cord should be provided with each instrument.
However, if a different power cord set is required, notify
the nearest -hp- Sales and Service Office and a replacement
cord will be provided. The instrument ac power input
receptacle and cord set appliance coupler meet the safety
specifications set by the International Commission on Rules
for the Approval of Electrical Equipment (GEE 22).
8120-1348 8120-0698
126V-6A- 260V-6A*
■UL LISTED FOR USE IN THE UNITED STATES OF AMERICA

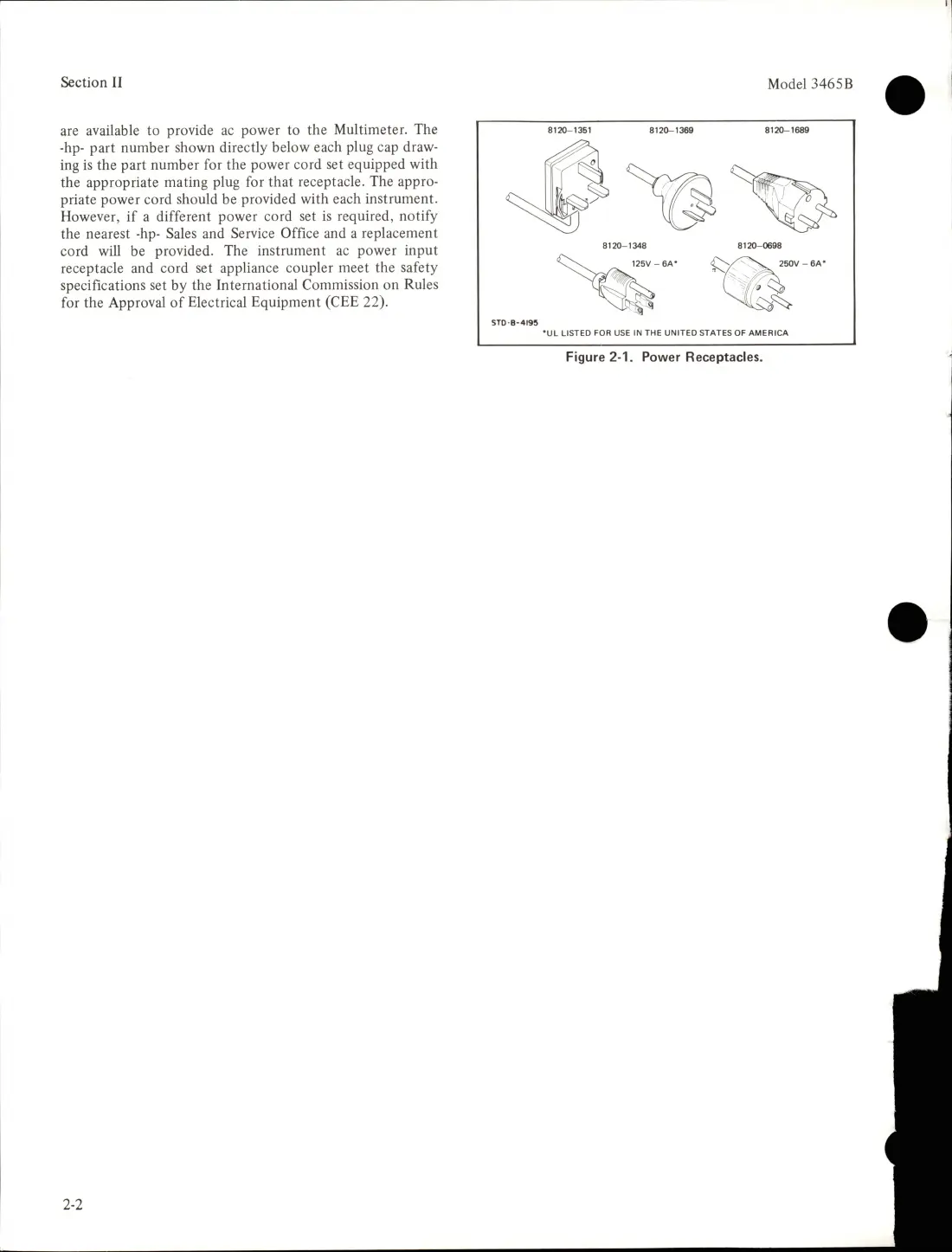

Figure 2-1. Power Receptacles.
2-2
