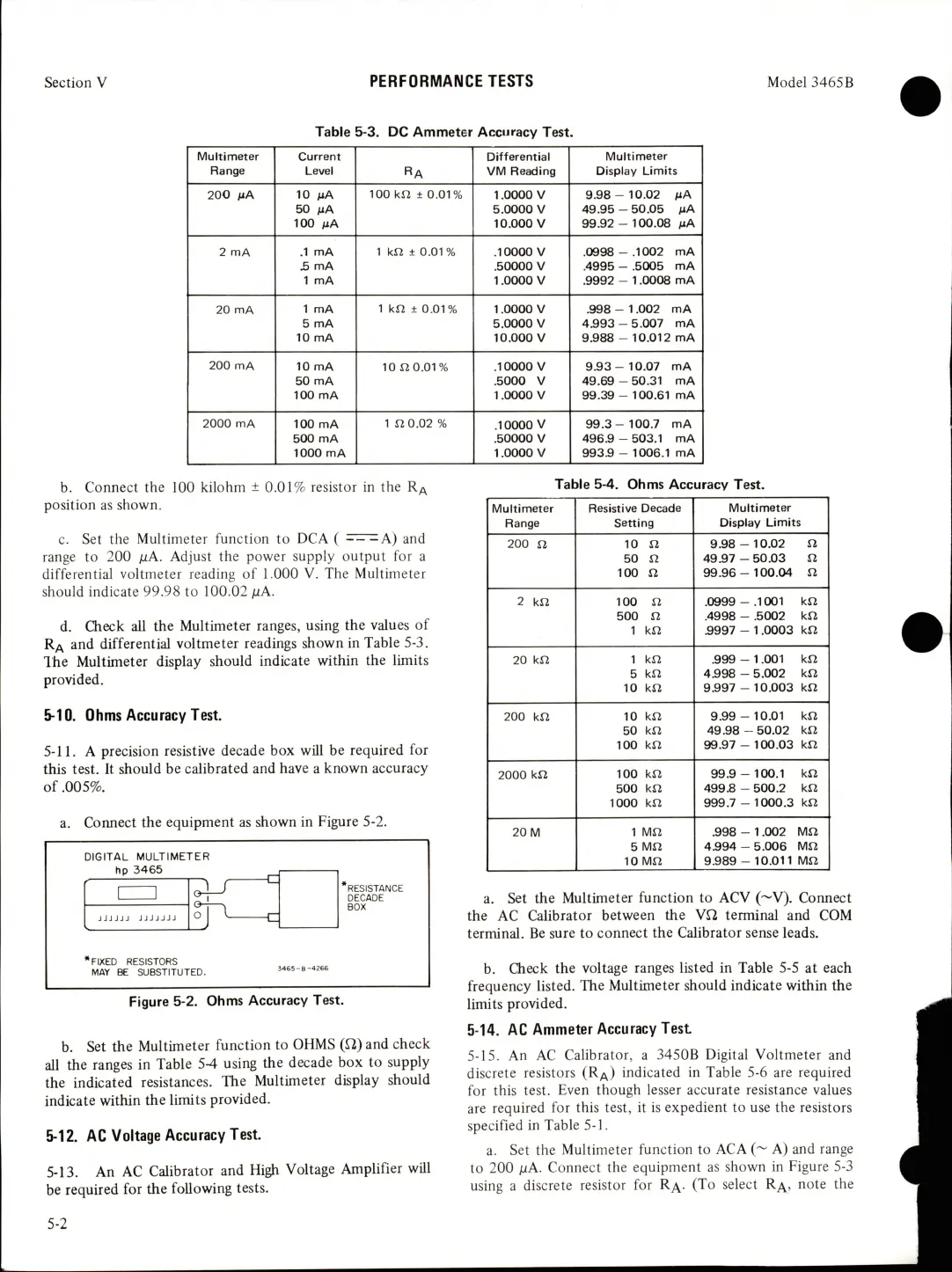

Section V
PERFORMANCE TESTS
Model 3465B
Table 5-3. DC Ammeter Accuracy Test.
Multimeter
Range
Current
Level
Ra
Differential
VM Reading
Multimeter
Display Limits
200 nA 10 liA
50 nA
100 tiA
100 kn ± 0.01%
1.0000 V
5.0000 V
10.000 V
9.98- 10.02 pA
49.95 - 50.05 pA
99.92 - 100.08 pA
2 mA .1 mA
5 mA
1 mA
1 kn ± 0.01 %
.10000 V
.50000 V
1.0000 V
.0998-.1002 mA
.4995 - .5005 mA
.9992 - 1.0008 mA
20 mA
1 mA
5 mA
10 mA
1 kn ± 0.01%
1.0000 V
5.0000 V
10.000 V
.998 - 1.002 mA
4393 - 5.007 mA
9.988 - 10.012 mA
200 mA
10 mA
50 mA
100 mA
ion 0.01%
.10000 V
.5000 V
1.0000 V
9.93- 10.07 mA
49.69 - 50.31 mA
99.39 - 100.61 mA
2000 mA
100 mA
500 mA
1000 mA
1 no.o2 %
.10000 V
.50000 V
1.0000 V
99.3- 100.7 mA
496.9 - 503.1 mA
9933 - 1006.1 mA
b. Connect the 100 kilohm ± 0.01% resistor in the
position as shown.
c. Set the Multimeter function to DCA ( A) and
range to 200 fxA. Adjust the power supply output for a
differential voltmeter reading of 1.000 V. The Multimeter
should indicate 99.98 to 100.02 /rA.
d. Check all the Multimeter ranges, using the values of
and differential voltmeter readings shown in Table 5-3.
Ihe Multimeter display should indicate within the limits
provided.
5-10. Ohms Accuracy Test.
5-11. A precision resistive decade box will be required for
this test. It should be calibrated and have a known accuracy
of .005%.
a. Connect the equipment as shown in Figure 5-2.
Table 5-4. Ohms Accuracy Test.
DIGITAL MULTIMETER
hp 3465
FIXED RESISTORS
MAY BE SUBSTITUTED.
RESISTANCE
DECADE
BOX
Figure 5-2. Ohms Accuracy Test.
b. Set the Multimeter function to OHMS (C2) and check
all the ranges in Table 5-4 using the decade box to supply
the indicated resistances. The Multimeter display should
indicate within the limits provided.
5-12. AC Voltage Accuracy Test.
5-13. An AC Calibrator and High Voltage Amplifier will
be required for the following tests.
Multimeter
Resistive Decade
Multimeter
Range Setting
Display Limits
200 n 10 n
9.98-10.02 n
50 n 49.97 - 50.03 n
100 n
99.96-100.04 n
2 kn
100 n
.0999 -.1001 kn
500 n
.4998 - .5002 kn
1 kn .9997 - 1.0003 kn
20 kn
1 kn .999 - 1.001 kn
5 kn
4.998 - 5.002 kn
10 kn
9.997 - 10.003 kn
200 kn 10 kn
9.99-10.01 kn
50 kn 49.98 - 50.02 kn
100 kn 99.97-100.03 kn
2000 kn
100 kn
99.9-100.1 kn
500 kn 499.8 - 500.2 kn
1000 kn
999.7 -1000.3 kn
20 M
1 Mn .998 - 1.002 Mn
5 Mn
4394 - 5.006 Mn
10 Mn
9389 - 10.011 Mn
a. Set the Multimeter function to ACV (~V). Cormect
the AC Calibrator between the Vf2 terminal and COM
terminal. Be sure to connect the Calibrator sense leads.
b. Check the voltage ranges listed in Table 5-5 at each
frequency listed. The Multimeter should indicate within the
limits provided.
5-14. AC Ammeter Accuracy Test
5-15. An AC Calibrator, a 3450B Digital Voltmeter and
discrete resistors (Ra) indicated in Table 5-6 are required
for this test. Even though lesser accurate resistance values
are required for this test, it is expedient to use the resistors
specified in Table 5-1.
a. Set the Multimeter function to ACA (~ A) and range
to 200 /lA. Connect the equipment as shown in Figure 5-3
using a discrete resistor for R^. (To select R^. note the
5-2
